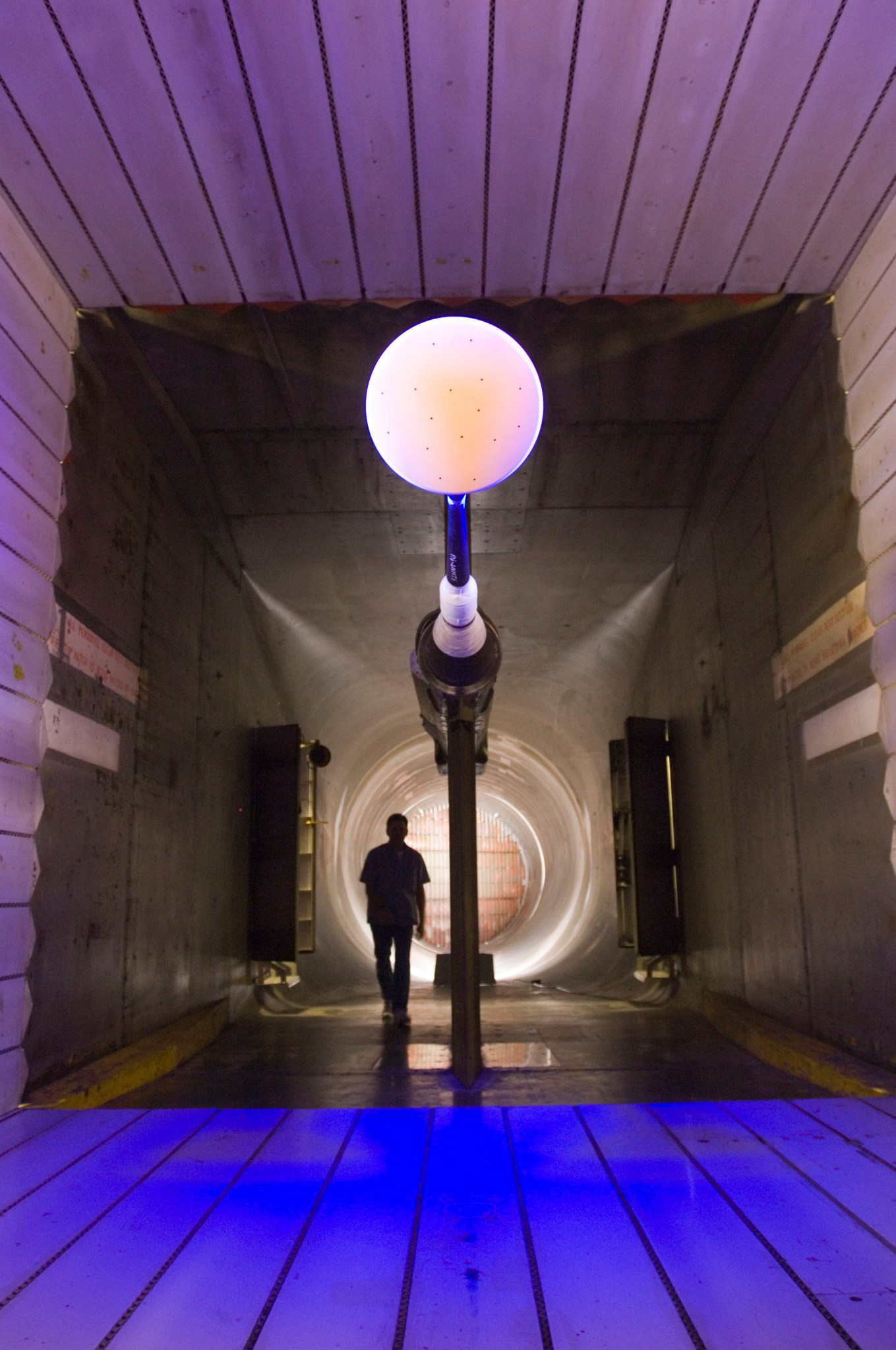

Scale Model of the Crew Launch Vehicle being tested in the 11-by 11-foot Transonic Wind Tunnel at NASA Ames Research Center. The purpose of this test was to obtain an aerodynamic assessment from this revision of the CLV.
NASA
Home
Characteristics
Quick Facts
Data Acquisition
Gallery
11×11 TWT Characteristics
Speed: Mach 0.20 to 1.45
Reynolds Number: 0.30 – 9.6 x 106 per foot
Pressure: 3.0 to 32.0 lbs. per square inch
Temperature: 100 ± 20°F
Test Gas: Ambient atmosphere
Test Section Size: 11 feet high by 11 feet wide
Length: 22 feet
Area: 121 square feet
11-Foot Transonic Unitary Plan Facility Fact Sheet
