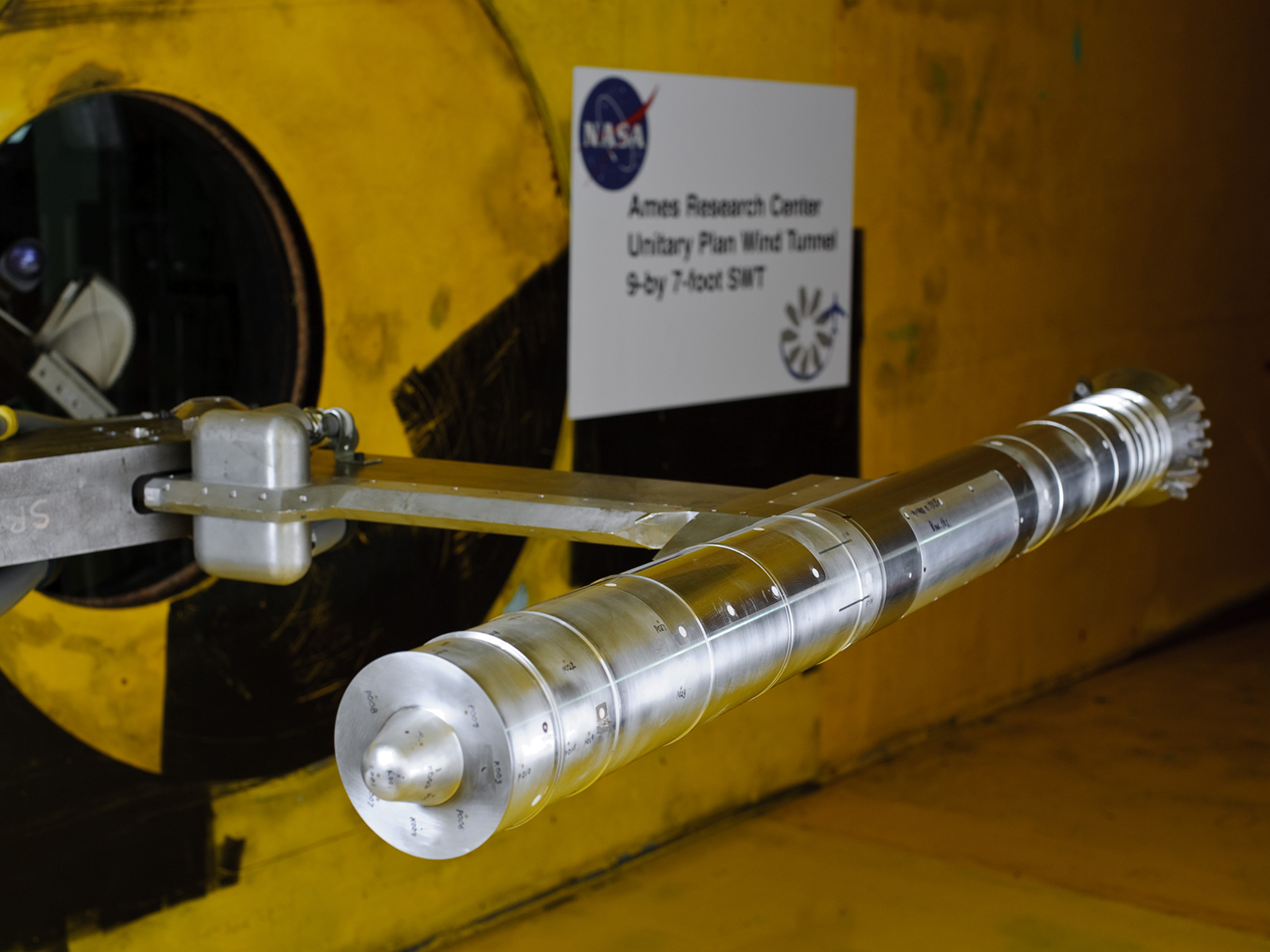

The 9 by 7-Foot Supersonic Wind Tunnel (SWT) is a closed-return, variable-density tunnel with an asymmetric, sliding-block nozzle. It is one of two separate test sections powered by a common drive system. Interchangeability of models among the Unitary test sections allows testing across a wide range of conditions. Airflow is generated by an 11-stage, axial-flow compressor powered by four variable-speed, wound-rotor, induction motors.
Speed: Mach 1.55 to 2.55
Reynolds Number: 0.90 – 5.6 x 106 per foot
Pressure: 4.4 to 27.0 lbs. per square inch
Temperature: 110 ± 20°F
Test Gas: Ambient atmosphere
Test Section Size: 7 feet high by 9 feet wide
Length: 14 feet
Area: 63 square feet
9-by 7-Foot Supersonic Wind Tunnel Fact Sheet
