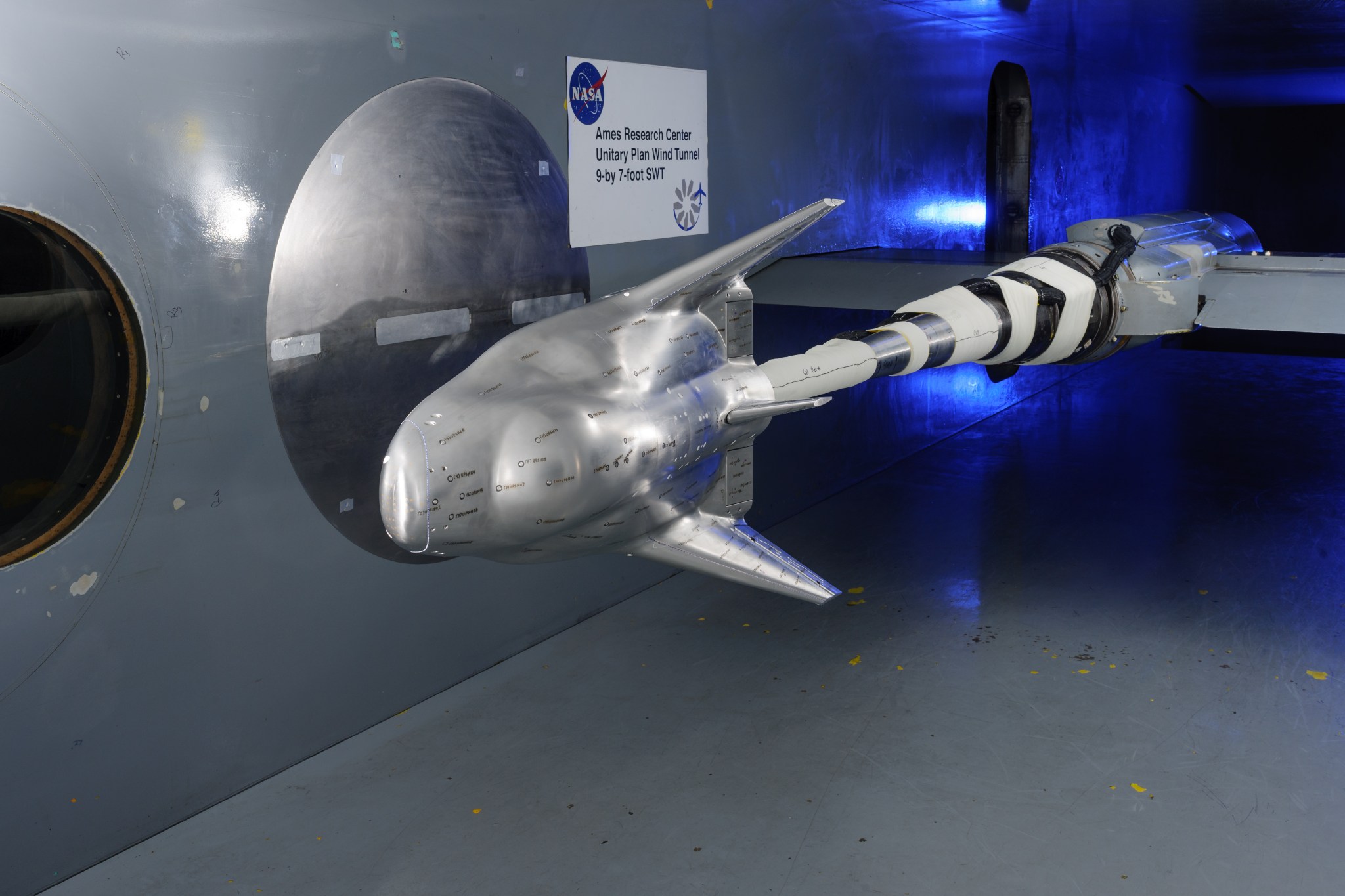

Data Acquisition and Processing
Steady-State Data System
System: Analog Input. Number of Channels: 48. Sample Frequency: 1000Hz.
System: Digital Input. Number of Channels: 16. Sample Frequency: Test Dependent.
System: Force Balances. Number of Channels: 32. Sample Frequency: 1000Hz.
System: Pressures. Number of Channels: 2048. Sample Frequency: 20Hz.
System: Temperatures. Number of Channels: 60. Sample Frequency: 100Hz.
Time Variant Data System (High Speed)
System: Analog Channels. Number of Channels: 160. Sample Frequency: 20 KHz bandwidth.
System: Force Balance Channels. Number of Channels: 160. Sample Frequency: 80 KHz bandwidth.
Classified Capability Available (Secret / SAR)
Instrumentation
Strain Gauge Balances: 6-component.
Angle-of-Attack (AOA) Accelerometers: ±15°F with offsets to +25°
Available Corrections
Interactions
Temperature effects
Attitude tares
Axes orientation
Pressure tares
Momentum (flow) tares
9-by 7-Foot Supersonic Wind Tunnel Fact Sheet
