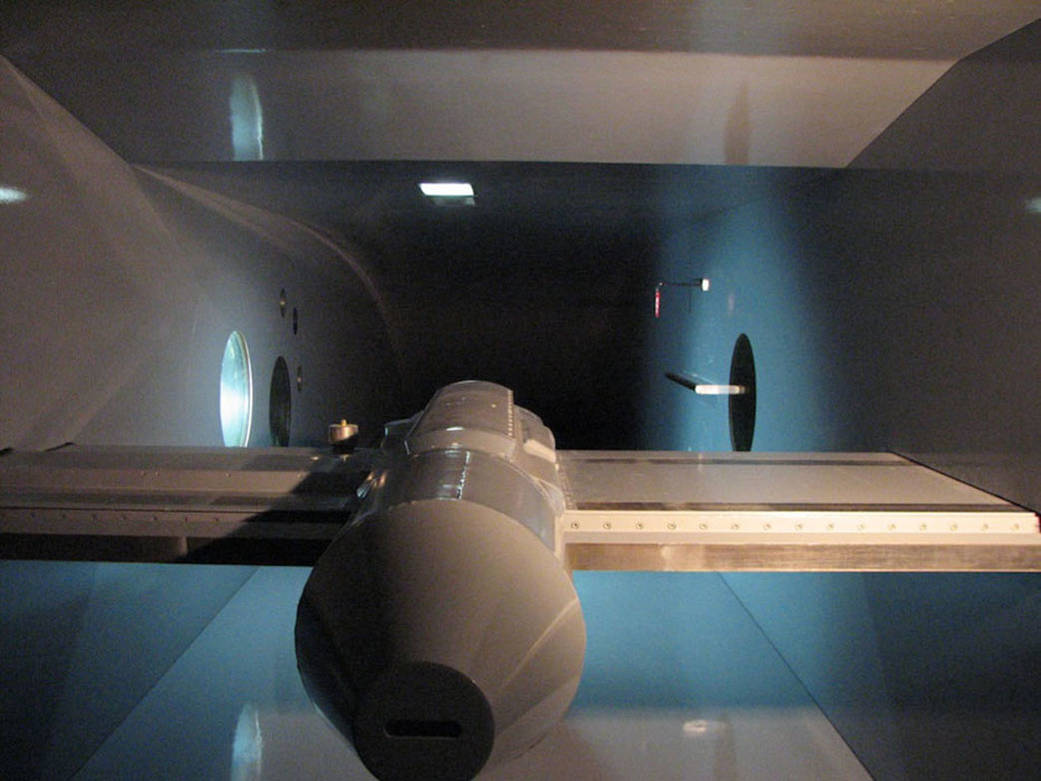

Test section of the 9- by 7-foot Unitary Plan Supersonic Wind Tunnel at NASA’s Ames Research Center, set up to measure the effects of humidity on sonic boom measurements
Home
Quick Facts
Techniques
Capabilities
Common means of flow measurement include:
- Schlieren imaging
- Particle Image Velocimetry (PIV)
- Boundary-layer measurements
- Hot-wire anemometry
These flow measurement techniques may provide information on many different flow characteristics, including:
- Shock shape and formation
- Flow separation
- Laminar or turbulent flow
- Flow velocity and direction
- Vortex shedding
- Wake characteristics
