Applying Human Rating to the
NASA-STD-3001: An Overview

NASA-STD-3001, NASA Spaceflight Human-System Standard Volume 1 and 2, establishes Agency-level technical requirements that enable human spaceflight missions by minimizing health risks, providing vehicle design parameters, and optimizing performance of flight and ground crew. Applicability and tailoring of these requirements are determined based on each program’s mission profile and procurement strategy.

While NASA-STD-3001 provides the most comprehensive resource for these agency level requirements, a core subset is applicable to human rating. Requirements categorized as “Human Rated” follow three key human-rated space system principles:

1. System level safety features;
2. Accommodation of human interaction with system; and
3. Safe recovery.

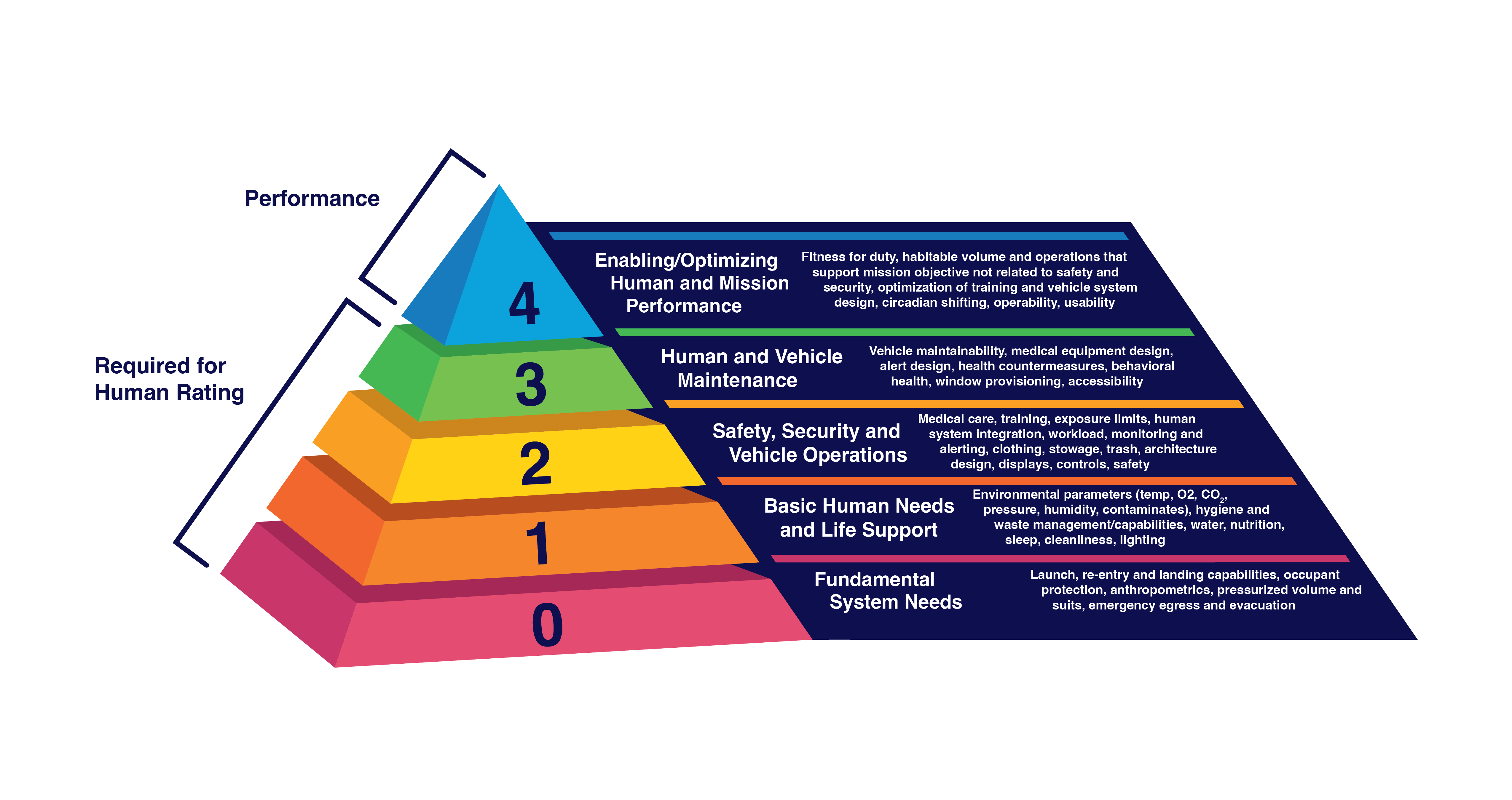

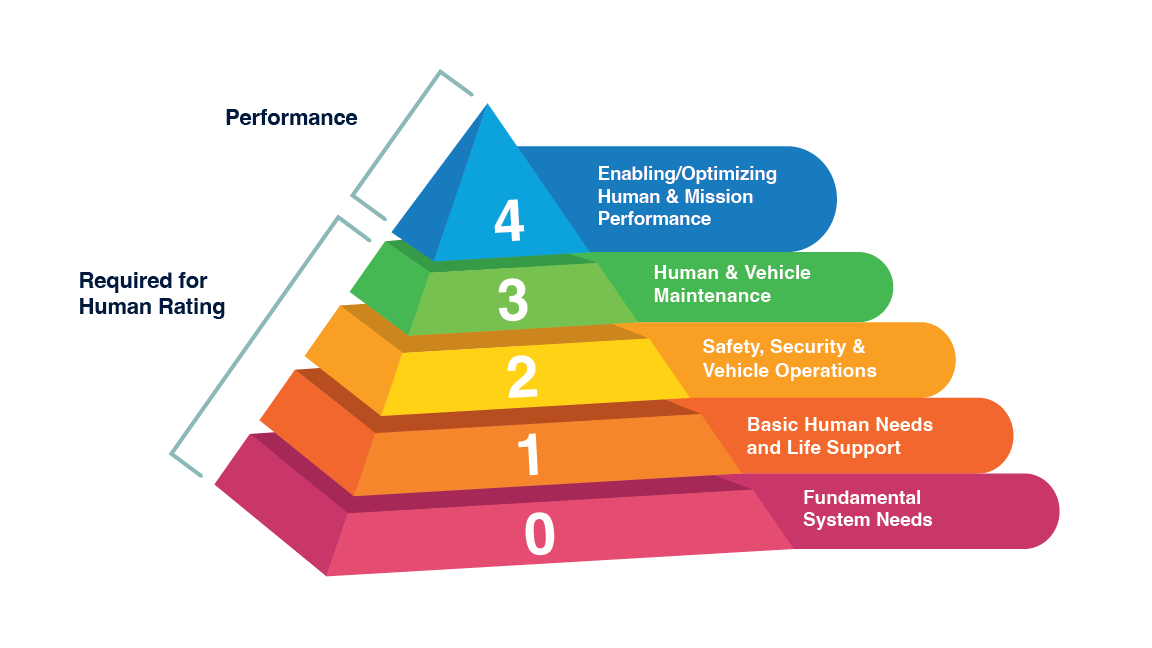

NASA-STD-3001 Pyramid Hierarchy

A “Standards pyramid of hierarchy” was developed to aid in the determination of individual standard’s impact on missions—particularly useful during the formulation stage of new programs. This tool provides a look “across” all current NASA-STD-3001 requirements in a condensed, hierarchical format useful for assessing impact on a mission’s success related to loss of crew, mission, and/or individual mission objectives. The pyramid also categorizes the technical requirements that increase the probability of achieving mission objectives.

To provide clarify on requirements categorized as ‘Human Rated,’ the Standards Pyramid was categorized into two groups: human-rated and those classified as primarily enabling and optimizing performance. While all NASA-STD-3001 requirements are considered valuable to human spaceflight, a subset of Human-Rating requirements was developed to serve as a guidepost for need-to-have factors critical for maintaining human safety (e.g. foundational vehicle structure; environmental conditions; safe egress).

What is a Human-Rated Space System?

A human-rated system accommodates human needs, effectively utilizes human capabilities, controls hazards with sufficient certainty to be considered safe for human operations, and provides the capability to safely recover from emergency situations. The concept of human-rating a space system entails three fundamental tenets:

1. Human-rating is the process of evaluating and assuring that the total system can safely conduct the required human missions.

2. Human-rating includes the incorporation of design features and capabilities that accommodate human interaction with the system to enhance overall safety and mission success.

3. Human-rating includes the incorporation of design features and capabilities to enable safe recovery of the crew from hazardous situations.

Full compliance for human rating occurs when all levied requirements or considerations at each level have been appropriately addressed.

Hierarchy Descriptions

• 0 Fundamental System Needs – Meeting the requirements needed to enable a vehicle or suit that provides the minimum structural needs for a crewmember to be contained within or to have an emergency egress.
• 1 Basic Human Needs and Life Support – The minimum requirements for a human to survive.
• 2 Safety, Security & Vehicle Operations – Vehicle design and operations that ensures the safety of the crew (pre-, in- and post-mission).
• 3 Human & Vehicle Maintenance – Vehicle and crew maintainability needs, either through equipment design or capabilities that enable continued support of the crew and vehicle health.
• 4 Enabling and Optimizing Human and Mission Performance – Additional requirements that would optimize the mission by enabling the success of mission objectives and the crew health or performance.

“The concept of a man-rated space system entails the incorporation of those design features and requirements necessary to accommodate human participants within the system and thus provide the capability to safely conduct manned operations, including safe recovery from any credible emergency situation. Man-rating is the process of evaluating and assuring that the total system, both hardware and software, has the ability to meet prescribed, safety oriented design and operational criteria and requirements, and becomes involved in all program activities including design and development, test and verification, management and control and finally, certification for operational readiness”

“A Review of Man-Rating in Past and Current Manned Space Flight Programs”, A. Bond, 1988

Related Documents

• NASA-STD-3001 Volume 1 Requirement Compliance Matrix with Human Rating
• NASA-STD-3001 Volume 2 Requirement Compliance Matrix with Human Rating
• HEOMD-003 Crewed Deep Space Systems Human Rating Certification Requirements and Standards for NASA Missions (2021)
• NASA-SP-6104 A Perspective on the Human Rating Process of Spacecraft Both Past and Present (1995)
• NASA-STD-8719.29 NASA Technical Requirements for Human-Rating (2023)
• NASA’s Human Rating Requirements – A Historical Interpretive Perspective (2011)
• NPR 8705.2C Human-Rating Requirements for Space Systems (2017)
• Spacecraft Human-Rating: Historical Overview and Implementation Considerations (2014)

0. Fundamental System Needs

(Required for human rating)

V1 3007 Medical Evacuation	V2 6009 Decompression Sickness Treatment Capability	V2 6112 Hang Time Limit	V2 11032 LEA Suited Decompression Sickness Prevention Capability
V1 3008 In-Mission Evacuation to Definitive Medical Care Facilities	V2 6064 Sustained Translational Acceleration Limits	V2 6113 Crew Limits in Launch Orientation	V2 12004 Anthropometry, Biomechanics, Range of Motion, and Strength
V2 4102 Functional Anthropometric Accommodation	V2 6065 Rotational Velocity	V2 6154 Extraterrestrial Surface Transport Vehicle Sustained Translation Acceleration Limits	V2 12043 Emergency Egress at the Launch Site
V2 4103 Body Mass, Volume, and Surface Area Data	V2 6066 Sustained Rotational Acceleration Due to Cross-Coupled Rotation	V2 6155 Extraterrestrial Surface Transport Vehicle Translation Jerk Limits	V2 12044 Emergency Egress to Medical Care
V2 4104 Crew Operational Loads	V2 6067 Transient Rotational Acceleration	V2 6156 Blunt Trauma Limits for Enabling Performance	V2 12045 Nominal Timely Egress
V2 4105 Withstand Crew Loads	V2 6069 Acceleration Injury Prevention	V2 6090 Vibration Exposures during Dynamic Phases of Flight	V2 12046 Emergency Egress Acceleration Limits
V2 4013 Muscle Effects	V2 6070 Injury Risk Criterion	V2 11100 Pressure Suits for Protection from Cabin Depressurization

• NASA-STD-3001 Volume 1: Crew Health (full text)
• NASA-STD-3001 Volume 2: Human Factors, Habitability, and Environmental Health (full text)

Back to Top

1. Basic Human Needs

(Required for human rating)

V2 6002 Inert Diluent Gas	V2 6047 Toxic Hazard Level Three	V2 6095 Ionizing Radiation Protection Limit	V2 7027 Body Waste Trash Receptacle Accessibility
V2 6003 O2 Partial Pressure Range for Crew Exposure	V2 6048 Toxic Hazard Level Four	V2 7001 Food Quality	V2 7029 Body Waste Management Maintenance
V2 6004 Nominal Vehicle/Habitat Carbon Dioxide Levels	V2 6049 Chemical Decomposition	V2 7003 Food Caloric Content	V2 7070 Sleep Accommodation
V2 6006 Total Pressure Tolerance Range for Indefinite Crew Exposure	V2 6075 Ceiling Limit for Launch Abort	V2 7004 EVA Food Caloric Content	V2 7073 Partial-g Sleeping
V2 6007 Rate of Pressure Change	V2 6076 Launch, Entry, and Abort Impulse Noise Limits	V2 7100 Food Nutrient Composition	V2 11011 Suited Crewmember Heat Storage
V2 6150 Barotrauma Prevention	V2 6077 Hazardous Noise Limits for All Phases Except Launch, Entry, and Abort	V2 7110 Food and Impacts to Environmental Systems	V2 11013 Suited Body Waste Management – Provision
V2 6012 Crew Health Environmental Limits	V2 6115 24-Hour Noise Exposure Limits	V2 7014 Food Spill Control	V2 11028 EVA Suit Urine Collection
V2 6050 Atmosphere Contamination Limit	V2 6078 Continuous Noise Limits	V2 7008 Food Preparation	V2 11014 LEA Suit Urine Collection
V2 6052 Particulate Matter	V2 6079 Crew Sleep Continuous Noise Limits	V2 7016 Personal Hygiene Capability	V2 11015 Suit Urine Collection per Day – Contingency
V2 6053 Lunar Dust Contamination	V2 6080 Intermittent Noise Limits	V2 7017 Body Cleansing Privacy	V2 11016 Suit Feces Collection per Day – Contingency
V2 6059 Microbial Air Contamination	V2 6082 Annoyance Noise Limits for Crew Sleep	V2 7020 Body Waste Management Capability	V2 11025 Suited Nutrition
V2 6026 Potable Water Quality	V2 6083 Impulse Noise Limit	V2 7021 Body Waste Management System Location	V2 11029 LEA Suited Hydration
V2 6051 Water Contamination Control	V2 6085 Infrasonic Sound Pressure Limits	V2 7023 Body Waste Management Provision	V2 11030 EVA Suited Hydration
V2 6109 Water Quantity	V2 6092 Vibration Exposure Limits during Sleep	V2 7024 Body Waste Accommodation	V2 11033 Suited Thermal Control
V2 6110 Water Temperature	V2 6098 Radiation Environments	V2 7025 Body Waste Containment	V2 11039 Nominal Spacesuit Carbon Dioxide Levels

• NASA-STD-3001 Volume 1: Crew Health (full text)
• NASA-STD-3001 Volume 2: Human Factors, Habitability, and Environmental Health (full text)

Back to Top

2. Safety, Security, and Vehicle Operations

(Required for human rating)

V1 3000 Medical Management	V2 6108 Off-Nominal Vehicle/Habitat Atmospheric Ventilation	V2 8006 Interference	V2 9054 Protective Equipment Use
V1 3002 Pre-Mission Preventive Health Care	V2 6046 Water Quality Monitoring and Alerting	V2 8007 Spatial and Interface Orientation	V2 9055 Equipment Automation of Rescue Aids
V1 3003 In-Mission Preventive Health Care	V2 6060 Biological Payloads	V2 8013 Intravehicular Translation Paths	V2 9056 Use of Hearing Protection
V1 3004 In-Mission Medical Care	V2 6061 Environment Cross-Contamination	V2 8014 Emergency Escape Paths	V2 9057 Hearing Protection Provision
V1 3009 Palliative Comfort Care	V2 6062 Availability of Environmental Hazards Information	V2 8020 Assisted Ingress and Egress Translation Path	V2 9058 Hearing Protection Interference
V1 3010 Termination of Care	V2 6063 Contamination Cleanup	V2 11005 EVA Translation Path Hazard Avoidance	V2 9059 Fire Detecting, Warning, and Extinguishing
V1 3050 Pre-Mission Crew Mortality Plan	V2 6111 Dynamic Mission Phases Monitoring and Analysis	V2 8022 Hatches and Door Operation without Tools	V2 10152 System Latency for Piloting
V1 3051 Pronouncement of Crew Death	V2 6073 Launch, Entry, and Abort Noise Exposure Limits	V2 8023 Unlatching Hatches	V2 10080 Command Confirmation
V1 3052 In-Mission Forensic Sample Collection	V2 6074 Ceiling Limit for Launch and Entry	V2 8024 Hatch and Door Operating Times	V2 10153 Mode Change Command
V1 3053 Crew Mortality Remains Return to Earth	V2 6081 Alarm Maximum Sound Level Limit	V2 8025 Hatch and Door Operating Force	V2 10178 Manual Activation of Emergency Responses
V1 3054 In Situ Disposition of Deceased Crewmember Remains	V2 6084 Narrow-Band Noise Limits	V2 8027 Hatchway Size and Shape	V2 10058 Auditory Alert Frequency
V1 3055 Surviving Crew Support	V2 6106 Noise Limit for Personal Audio Devices	V2 8028 Pressure Equalization across the Hatch	V2 10056 Alert Sound Level
V1 3056 Crew Mortality Mishap Investigation Plan	V2 6087 Acoustic Monitoring	V2 8029 Visibility across the Hatch	V2 10201 Indicator Light Characteristics
V1 3012 Terrestrial Launch/Landing Medical Support	V2 6088 Individual Noise Exposure Monitoring	V2 8031 Hatch Closure and Latching Status Indication	V2 10073 Control Operation Supports and Restraints
V1 3013 DMCF Medical Care	V2 6091 Long-Duration Vibration Dosage Limits for Health during Non-Sleep Phases of Mission	V2 8032 Hatch Pressure Indication	V2 10158 Moderate-g Control Configuration
V1 3014 DMCF Transport	V2 6093 Vibration Limits for Performance	V2 8101 No Drag-Throughs	V2 10159 High-g Control Configuration
V1 3015 Certification of Training Plans for Launch/Landing Medical Team	V2 6094 Hand Vibration	V2 8033 Restraints for Crew Tasks	V2 10076 Manual Piloting Control Latency
V1 3016 Post-Mission Health Care	V2 6160 Extraterrestrial Surface Transport Vehicle Vibration Limits for Health and Performance	V2 8038 Restraint and Mobility Aid Standardization	V2 10160 Manual Piloting Control Latency Variability
V1 3017 Post-Mission Reconditioning	V2 6161 Intravehicular Area Monitoring of Space Radiation Exposure	V2 8040 Mobility Aid for Assisted Ingress and Egress	V2 10084 Communication Capability
V1 3018 Post-Mission Long-Term Monitoring	V2 6162 Personal Monitoring of Space Radiation Exposure	V2 8041 Unassisted Ingress, Egress, and Escape Mobility Aids	V2 10161 Automation System Status Provision
V1 4029 As Low as Reasonably Achievable (ALARA) Principle	V2 6163 Area Monitoring of Radiation Exposure from Nuclear Technologies	V2 8042 Mobility Aid Provision	V2 10165 Automation and Robotics Override and Shut-Down Capabilities
V1 4030 Career Space Permissible Exposure Limit for Spaceflight Radiation	V2 6164 Alerting of Elevated Exposure Rates	V2 8043 Window Provisioning	V2 10166 Automation System Configuration
V1 4031 Radiation Limits – Solar Particle Events	V2 6165 External Space Weather Monitoring	V2 8051 Illumination Levels	V2 10167 Range of Control
V1 4032 Crew Radiation Limits for Nuclear Technologies	V2 6102 RF Non-Ionizing Radiation Exposure Limits	V2 8103 Environmental Lighting Attenuation	V2 10168 Automation Failure Recovery
V1 4033 Crew Radiation Limits from Galactic Cosmic Radiation	V2 6103 Laser Exposure Limits	V2 8104 Task-Specific Exterior Lighting for Operational Areas Partially or Fully Lit by Sunlight	V2 10170 Decision Aid Clarity
V1 5001 Medical Training	V2 6104 Natural Sunlight Exposure Limits	V2 8105 Navigation and Wayfinding (Exterior)	V2 10171 Decision Aid Limitation Notification
V1 5002 Crewmember Training	V2 6117 Artificial Light Exposure Limits	V2 8053 Emergency Lighting	V2 10172 Automation Safe Mode
V1 5003 Crew Medical Officer Medical Training	V2 7111 Food Safety	V2 8058 Glare Prevention	V2 10173 Safety Default
V1 3006 Crew Medical Officers Quantity	V2 7112 Food Production Facility	V2 8106 Extraterrestrial Surface Transport Vehicle (ESTV) Dashboard and Control Lighting	V2 10174 System Initiation
V1 5004 Medical Training Verification	V2 7007 Food and Production Area Microorganism Levels	V2 9101 Design for Crew Safety	V2 11125 Suit Materials Compatibility
V1 5005 Flight Surgeon Training	V2 7010 Food Contamination Control	V2 9005 Mechanical Hazard	V2 11126 Suit Materials Cleanability
V1 5006 Medical Operations Flight Controller Training	V2 7015 Food System Cleaning and Sanitizing	V2 9006 Entrapment	V2 11007 Suit Equilibrium Pressure
V1 5007 Support Personnel Training	V2 7101 Body Waste Isolation	V2 9007 Potential Energy	V2 11009 Continuous Noise in Spacesuits
V1 5008 Psychological Mission Training	V2 7102 Body Waste Quantities	V2 9008 Protection from Projectiles and Structural Collapse	V2 11010 EVA Suit Radiation Monitoring
V1 5009 Physiological Exposure Mission Training	V2 7085 Fecal and Urine Elimination Concurrence	V2 9009 Sharp Corners and Edges – Fixed	V2 11024 Ability to Work in Suits
V1 6006 Extravehicular Activities (EVAs)	V2 7035 Urine per Crewmember	V2 9010 Protection from Functionally Sharp Items	V2 11027 Suited Medication Administration
V1 6008 Crew Health Operations Concept Document	V2 7043 Medical Capability	V2 9011 Sharp Corners and Edges – Loose	V2 11031 Suited Relative Humidity
V1 6009 Medical and Crew Health Technical Requirements Document	V2 7045 Medical Equipment Usability	V2 9012 Burrs	V2 11036 Suited Atmospheric Monitoring and Alerting
V2 3006 Human-Centered Task Analysis	V2 7046 Medical Treatment Restraints	V2 9013 Pinch Points	V2 11101 Incapacitated Crew Rescue (ICR)
V2 3102 Human Error Analysis	V2 7115 Medical Treatment, Personal Supplies, and Impacts to Environmental Systems	V2 9016 Equipment Handling	V2 12005 Protective Equipment
V2 3101 Iterative Developmental Testing	V2 7050 Stowage Provisions	V2 9102 Skin/Tissue Damage Temperature Limits	V2 12006 Volume Accommodation
V2 10002 Design-Induced Error	V2 7052 Stowage Location	V2 9103 Pain/Non-Disabling Injury Skin Temperature Limits	V2 12012 Mobility Aids
V2 5007 Cognitive Workload	V2 7054 Stowage Restraints	V2 9017 Power Interruption	V2 12013 Equipment Handling Design
V2 10200 Physical Workload	V2 7057 Stowage Access while Suited	V2 9018 Energized Status	V2 12014 Inadvertent Operation Prevention
V2 5006 Situation Awareness	V2 7058 Identification System	V2 9019 Nominal Physiological Electrical Current Limits	V2 12015 Incorrect Installation Prevention
V2 5051 Legibility	V2 7059 Inventory Tracking	V2 9020 Catastrophic Physiological Electrical Current Limits for all Circumstances	V2 12021 Lighting
V2 10004 Controllability and Maneuverability During Manual Control (Handling Qualities – Level 1)	V2 7060 Inventory Operations	V2 9021 Catastrophic Physiological Electrical Current Limits for Startle Reaction	V2 12024 Restraints and Platforms
V2 5052 Controllability and Maneuverability During Manual Control with Deficiencies (Handling Qualities – Level 2)	V2 7061 Nomenclature Consistency	V2 9022 Body Impedance for Voltage Calculations Utilizing Electrical Current Thresholds	V2 12025 System Feedback
V2 5053 Controls for Human Error	V2 7062 Unique Item Identification	V2 9023 Leakage Currents – Medical and Bioinstrumentation Equipment	V2 12026 Stowage Access
V2 10027 Protect Against Inadvertent Activation	V2 7063 Interchangeable Item Nomenclature	V2 9024 Fluid/Gas Release	V2 12027 Flight Software Systems
V2 10028 Error Detection and Recovery	V2 7064 Trash Accommodation	V2 9025 Fluid/Gas Isolation	V2 12028 Sharp Edge and Burr Injury Prevention
V2 6001 Trend Analysis of Environmental and Suit Data	V2 7065 Trash Volume Allocation	V2 9026 Fluid/Gas Containment	V2 12029 Pinch Point Prevention
V2 6008 Decompression Sickness (DCS) Risk Identification	V2 7069 Labeling of Hazardous Waste	V2 9028 Isolation of Crew from Spacecraft Equipment	V2 12030 Hazard Controls
V2 6014 Crewmember Heat Storage	V2 7074 Clothing Quantity	V2 9031 Connector Actuation without Tools	V2 12031 System Safing for Ground Operations
V2 6011 Post Landing Relative Humidity (RH)	V2 7079 Accessibility for Cleaning	V2 9032 Incorrect Mating, Demating Prevention	V2 12032 Contamination Controls
V2 7041 Environmental Control During Exercise	V2 7080 Particulate Control	V2 9033 Mating, Demating Hazards	V2 12033 Containment of Fluids and Gases
V2 6022 Atmospheric Monitoring and Alerting Parameters	V2 7081 Microbial Surface Contamination	V2 9034 Cable Management	V2 12034 Safe Weight Limit
V2 6023 Trace Constituent Monitoring and Alerting	V2 7082 Surface Material Cleaning	V2 9036 Design for Maintenance	V2 12035 Safe Flight System Component Arrangement
V2 6024 Combustion Monitoring and Alerting	V2 7083 Cleaning Materials	V2 9037 Commercial Off-the-Shelf (COTS) Equipment Maintenance	V2 12037 Connector Incorrect Mating Prevention
V2 6025 Contamination Monitoring and Alerting	V2 6058 Condensation Limitation	V2 9051 Fault Detection
V2 6153 Celestial Dust Monitoring and Alerting	V2 8001 Volume Allocation	V2 9052 Failure Notification
V2 6107 Nominal Vehicle/Habitat Atmospheric Ventilation	V2 8005 Functional Arrangement	V2 9053 Protective Equipment

• NASA-STD-3001 Volume 1: Crew Health (full text)
• NASA-STD-3001 Volume 2: Human Factors, Habitability, and Environmental Health (full text)

Back to Top

3. Human & Vehicle Maintenance

(Required for human rating)

V1 6001 Circadian Shifting Operations and Fatigue Management	V2 7076 Clothing Safety and Comfort	V2 9061 Fire Protection System Failure Alerting	V2 10091 Speech Intelligibility
V1 6003 Private Medical Communications Information Delivery	V2 7084 Recreational Capabilities	V2 9062 Fire Protection System Activation	V2 10093 Private Audio Communication
V1 6004 Behavioral Health and Performance Programs	V2 8030 Hatch, Hatch Cover and Door Interference	V2 9063 Portable Fire Extinguishers	V2 11001 Suited Donning and Doffing
V1 6010 Private Psychological Communication (PPC) Schedule	V2 8049 Window Light Blocking	V2 9064 Emergency Equipment Accessibility	V2 11017 Suit Isolation of Vomitus
V1 6011 Psychological Communications Information Delivery	V2 8056 Lighting Controls	V2 10125 Information Management Security	V2 11018 Suited Field of Regard
V2 4015 Aerobic Capacity	V2 9027 Equipment Protection	V2 10114 Distinguishable and Consistent Alerts	V2 11019 Suit Helmet Optical Quality
V2 6021 Atmospheric Data Displaying	V2 9030 Connector Spacing	V2 10175 Alert Prioritization	V2 11021 Suit Helmet Visual Distortions
V2 6089 Vibration during Preflight	V2 9113 Damage Prevention	V2 10115 Parameter Notifications	V2 11034 Suited Atmospheric Data Recording
V2 7002 Food Acceptability	V2 9114 In-Mission Maintenance	V2 10154 Alert Signal Enable	V2 11035 Suited Atmospheric Data Displaying
V2 7011 Food and Beverage Heating	V2 9121 Maintenance Management Information	V2 10155 Alert Signal Inhibit	V2 12007 Ground Processing – Induced Forces
V2 7012 Dining Accommodations	V2 9122 Fault Management Information	V2 10156 Alert Inhibit Audit	V2 12008 Systems Accessibility
V2 7019 Hygiene Maintainability	V2 9123 Maintenance Activities	V2 10177 Alert Signal Suppress	V2 12009 Tool Clearance
V2 7022 Body Waste Management Privacy	V2 9124 Maintenance Decision Aids	V2 10045 Color Coding Redundancy	V2 12011 Hardware Protection
V2 7026 Body Waste Odor	V2 9125 Verification of Repair	V2 10069 Hazardous Control Coding	V2 12018 Ground Processing Without Damage
V2 7038 Physiological Countermeasures Capability	V2 9126 Contamination Prevention	V2 10077 Control Resistive Force	V2 12019 Replaceable Items
V2 7042 Orthostatic Intolerance Countermeasures	V2 9127 Extreme Environment (EE)	V2 10078 Detent Controls	V2 12020 Visual Access for Ground Processing
V2 7053 Stowage Interference	V2 9128 Dust Tolerance	V2 10057 Reverberation Time	V2 12036 Connector Design and Spacing
V2 7071 Behavioral Health and Privacy	V2 9129 Dust Removal	V2 10083 Communication System Design
V2 7075 Clothing Exclusive Use	V2 9060 Fire Protection System Health and Status	V2 10085 Communication Speech Levels

• NASA-STD-3001 Volume 1: Crew Health (full text)
• NASA-STD-3001 Volume 2: Human Factors, Habitability, and Environmental Health (full text)

Back to Top

4. Enabling/Optimizing Human & Mission Performance

V1 3001 Selection and Recertification	V2 6151 Temperature Selectability	V2 9044 Minimum Variety of Fasteners – System	V2 10068 Out-of-View Control Identification
V1 4001 Microgravity EVA Aerobic Capacity	V2 6152 Temperature Adjustability	V2 9117 Access Using Available Tools	V2 10070 Control Spacing
V1 4002 Extraterrestrial Surface EVA Aerobic Capacity	V2 6017 Atmospheric Control	V2 9045 Maintenance Item Location	V2 10157 Connector Spacing
V1 4003 In-Mission Aerobic Capacity	V2 6020 Atmospheric Data Recording	V2 9046 Check and Service Point Accessibility	V2 10079 Stops Controls
V1 4004 Post-Mission Aerobic Capacity	V2 6039 Potable Water Dispensing Rate	V2 9047 Maintenance Accommodation	V2 10052 Intelligibility of Electronically Stored Speech Messages
V1 4005 Pre-Mission Sensorimotor	V2 6040 Potable Water Dispensing Increments	V2 9048 Visual Access for Maintenance	V2 10094 Video Communications Visual Quality
V1 4006 In-Mission Fitness-for-Duty Sensorimotor	V2 7009 Food Preparation and Cleanup	V2 9118 Component Identification	V2 10095 Video Communications Spatial Resolution
V1 4007 In-Mission Fitness-for-Duty Sensorimotor Metrics	V2 7040 Physiological Countermeasure Operations	V2 9035 Cable Identification	V2 10096 Video Communications Temporal Resolution
V1 4008 Sensorimotor Performance Limits	V2 7051 Personal Stowage	V2 9119 Visual Aids for Maintenance	V2 10097 Video Communications Color and Intensity
V1 4009 Sensorimotor Countermeasures	V2 7055 Priority of Stowage Accessibility	V2 9120 Condition Monitoring	V2 10098 Video Communications Bit Rate
V1 4010 Post-Mission Sensorimotor Reconditioning	V2 7056 Stowage Operation without Tools	V2 10005 Crew Interface Consistency	V2 10099 Audio-Visual Lag Time
V1 4011 Mission Cognitive Status	V2 7066 Trash Stowage Interference	V2 10006 Operations Nomenclature Standardization	V2 10162 Automation Mode Change Notification
V1 4012 End-of-Mission Cognitive Assessment and Treatment	V2 8010 Location Identifiers	V2 10150 Display Standards	V2 10163 Automation Data Availability
V1 4013 End-of-Mission Psychosocial Assessment	V2 8011 Location Aids	V2 10151 Labeling Plan and Icon Library	V2 10164 Automation System Responsibility Delineation
V1 4014 In-Mission Completion of Critical Tasks	V2 8045 Window Optical Properties	V2 10020 Stale, Missing, or Unavailable Data	V2 10169 Decision Support
V1 4015 Pre-Mission Hematological/Immunological Function	V2 8050 Window Accessory Replacement/Operation without Tools	V2 10022 Maximum System Response Times	V2 11006 Suit Pressure Set-Points
V1 4016 In-Mission Hematological/Immunological Countermeasures	V2 8059 White Lighting Chromaticity	V2 10113 Critical Information Design	V2 11020 Suit Helmet Luminance Shielding
V1 4017 Hematology and Immunology Countermeasures and Monitoring	V2 8060 White Lighting Color Accuracy	V2 10123 Data Update Rates	V2 11022 Suit Helmet Displays
V1 4018 Post-Mission Hematological/Immunological	V2 8055 Physiological Effects of Light (Circadian Entrainment)	V2 10124 Data Availability	V2 11023 Suit Information Management
V1 4019 Pre-Mission Nutritional Status	V2 8057 Lighting Adjustability	V2 10120 Information Management Methods and Tools	V2 11037 EVA Suited Metabolic Rate Measurement
V1 4020 In-Mission Nutrient Intake	V2 9001 Crew Interface Commonality	V2 10126 Information Management Ground Access	V2 11038 EVA Suited Metabolic Data Display
V1 4022 Post-Mission Nutritional Assessment and Treatment	V2 9002 Differentiation	V2 10129 Information Backup and Restoration	V2 12003 System Assumptions
V1 4023 Pre-Mission Muscle Strength and Function	V2 9003 Routine Operation	V2 10130 Alternative Information Sources	V2 12010 Flight Hardware Differentiation
V1 4024 In-Mission Skeletal Muscle Strength	V2 9004 Training Minimization	V2 10131 Software System Recovery	V2 12016 Pre-Defined Tool Set
V1 4025 Post-Mission Muscle Reconditioning	V2 9110 In-Mission Training	V2 10176 Reduced Initial Alert Annunciation Level	V2 12017 Captive Fasteners
V1 4026 Pre-Mission Bone Mineral Density	V2 9029 Hardware and Equipment Mounting and Installation	V2 10116 Alert Silencing	V2 12022 Supplemental Systems
V1 4027 In-Mission Bone Countermeasures	V2 9111 Maintenance Concept of Operations	V2 10117 Crew Test for Annunciation Failures	V2 12023 Operational Consistency
V1 4028 Post-Mission Bone Reconditioning	V2 9112 Availability of Critical Systems	V2 10032 Display and Control Grouping	V2 12038 Label Provisions
V1 6002 Private Medical Communication Schedule	V2 9038 In-Mission Tool Set	V2 10034 Display and Control Movement Compatibility	V2 12039 Label Standardization
V1 7001 Crew Health Results	V2 9115 Maintenance Tools Usability	V2 10037 Simultaneous Display of Critical Information	V2 12040 Label Content
V1 7002 Crew Records Transmission	V2 9116 Tool and Test Equipment Commonality	V2 10046 Measurement Units	V2 12041 Readable Label Positioning
V1 7003 Crew Records Security	V2 9050 Tool Clearance	V2 10048 Visual Display Parameters	V2 12042 Non-Obstructive Labels
V2 10003 Operability	V2 9039 Maintenance Time	V2 10060 Label Provision
V2 10001 Usability	V2 9042 Captive Fasteners	V2 10063 Label Location
V2 6013 Crew Performance Environmental Zone	V2 9043 Minimum Number of Fasteners – Item	V2 10066 Label Font Height

• NASA-STD-3001 Volume 1: Crew Health (full text)
• NASA-STD-3001 Volume 2: Human Factors, Habitability, and Environmental Health (full text)

Back to Top
