NASA’s Fermi Spots ‘Superflares’ in the Crab Nebula

WASHINGTON – The famous Crab Nebula supernova remnant has erupted in an enormous flare five times more powerful than any flare previously seen from the object. On April 12, NASA’s Fermi Gamma-ray Space Telescope first detected the outburst, which lasted six days.

The nebula is the wreckage of an exploded star that emitted light which reached Earth in the year 1054. It is located 6,500 light-years away in the constellation Taurus. At the heart of an expanding gas cloud lies what is left of the original star’s core, a superdense neutron star that spins 30 times a second. With each rotation, the star swings intense beams of radiation toward Earth, creating the pulsed emission characteristic of spinning neutron stars (also known as pulsars).

There are strange goings-on in the Crab Nebula. On April 12, 2011, NASA’s Fermi Gamma-ray Space Telescope detected the most powerful in a series of gamma-ray flares occurring somewhere within the supernova remnant. Download this video in HD formats from NASA Goddard’s Scientific Visualization Studio. Credits: NASA’s Goddard Space Flight Center

Apart from these pulses, astrophysicists believed the Crab Nebula was a virtually constant source of high-energy radiation. But in January, scientists associated with several orbiting observatories, including NASA’s Fermi, Swift and Rossi X-ray Timing Explorer, reported long-term brightness changes at X-ray energies.

“The Crab Nebula hosts high-energy variability that we’re only now fully appreciating,” said Rolf Buehler, a member of the Fermi Large Area Telescope (LAT) team at the Kavli Institute for Particle Astrophysics and Cosmology, a facility jointly located at the Department of Energy’s SLAC National Accelerator Laboratory and Stanford University.

Since 2009, Fermi and the Italian Space Agency’s AGILE satellite have detected several short-lived gamma-ray flares at energies greater than 100 million electron volts (eV) – hundreds of times higher than the nebula’s observed X-ray variations. For comparison, visible light has energies between 2 and 3 eV.

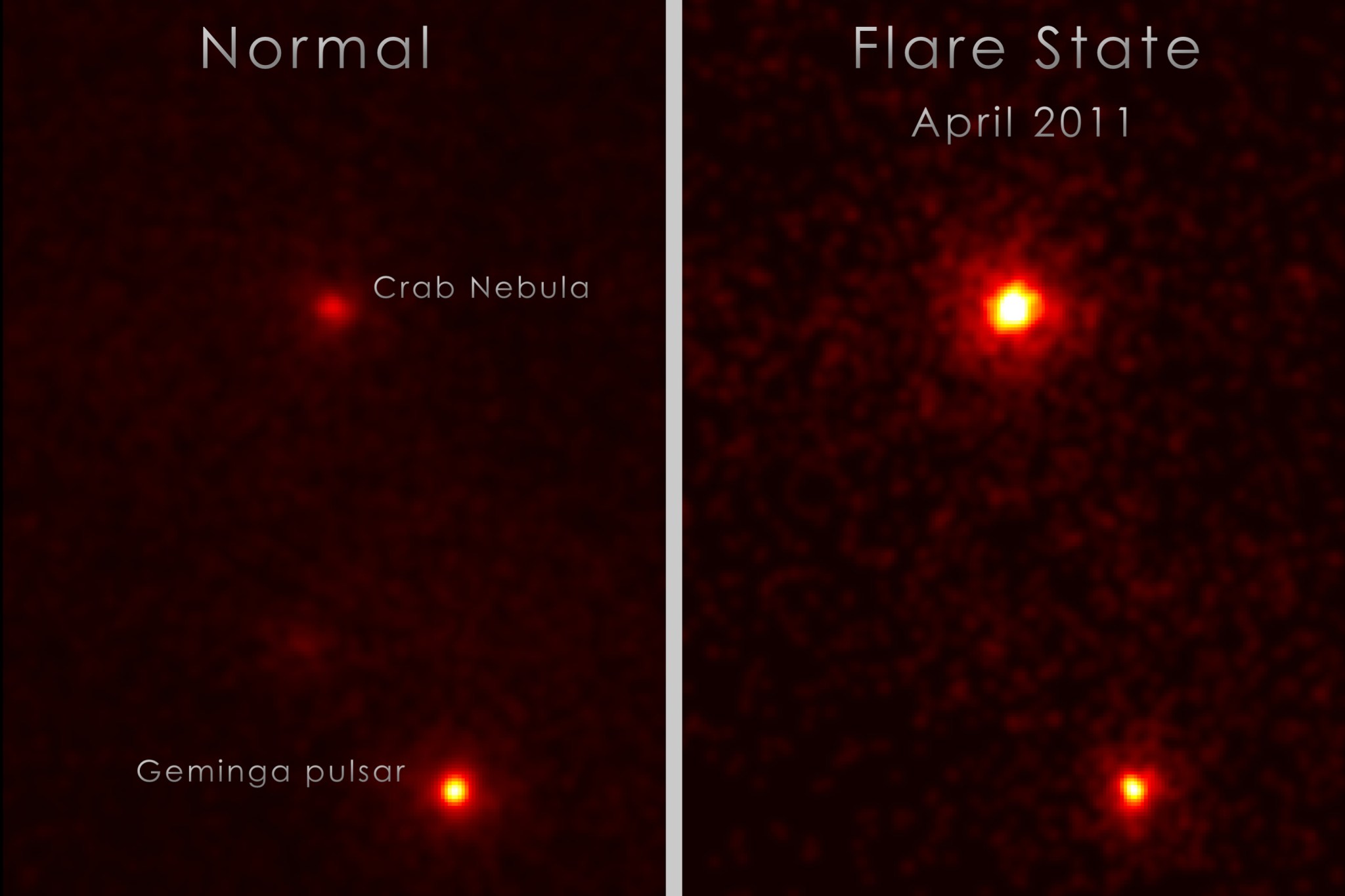

before and after a massive gamma flare in Crab Nebula
Fermi’s LAT discovered a gamma-ray “superflare” from the Crab Nebula on April 12, 2011. These images show the number of gamma rays with energies greater than 100 million electron volts from a region of the sky centered on the Crab Nebula. Both views eliminate emission form the Crab pulsar by showing the sky in between its pulses. In both images, the bright source below is the Geminga pulsar. At left, the region 20 days before the flare; at right, April 14.
Credit: NASA/DOE/Fermi LAT/R. Buehler

On April 12, Fermi’s LAT, and later AGILE, detected a flare that grew about 30 times more energetic than the nebula’s normal gamma-ray output and about five times more powerful than previous outbursts. On April 16, an even brighter flare erupted, but within a couple of days, the unusual activity completely faded out.

“These superflares are the most intense outbursts we’ve seen to date, and they are all extremely puzzling events,” said Alice Harding at NASA’s Goddard Space Flight Center in Greenbelt, Md. “We think they are caused by sudden rearrangements of the magnetic field not far from the neutron star, but exactly where that’s happening remains a mystery.”

The Crab’s high-energy emissions are thought to be the result of physical processes that tap into the neutron star’s rapid spin. Theorists generally agree the flares must arise within about one-third of a light-year from the neutron star, but efforts to locate them more precisely have proven unsuccessful so far.

Since September 2010, NASA’s Chandra X-ray Observatory routinely has monitored the nebula in an effort to identify X-ray emission associated with the outbursts. When Fermi scientists alerted astronomers to the onset of a new flare, Martin Weisskopf and Allyn Tennant at NASA’s Marshall Space Flight Center in Huntsville, Ala., triggered a set of pre-planned observations using Chandra.

“Thanks to the Fermi alert, we were fortunate that our planned observations actually occurred when the flares were brightest in gamma rays,” Weisskopf said. “Despite Chandra’s excellent resolution, we detected no obvious changes in the X-ray structures in the nebula and surrounding the pulsar that could be clearly associated with the flare.”

Scientists hoped that NASA’s Chandra X-ray Observatory would locate X-ray sources correlated to the gamma-ray flares seen by Fermi and Italy’s AGILE satellites. Two observations were made during the April 2011 superflare, but there’s no clear evidence of them in the Chandra images. Download this video from NASA Goddard’s Scientific Visualization Studio. Credits: NASA/CXC/M. Weisskopf and A. Tennant

Scientists think the flares occur as the intense magnetic field near the pulsar undergoes sudden restructuring. Such changes can accelerate particles like electrons to velocities near the speed of light. As these high-speed electrons interact with the magnetic field, they emit gamma rays.

To account for the observed emission, scientists say the electrons must have energies 100 times greater than can be achieved in any particle accelerator on Earth. This makes them the highest-energy electrons known to be associated with any cosmic source. Based on the rise and fall of gamma rays during the April outbursts, scientists estimate that the size of the emitting region must be comparable in size to the solar system.

NASA’s Fermi is an astrophysics and particle physics partnership managed by NASA’s Goddard Space Flight Center in Greenbelt, Md., and developed in collaboration with the U.S. Department of Energy, with important contributions from academic institutions and partners in France, Germany, Italy, Japan, Sweden and the United States.

The Marshall Space Flight Center manages the Chandra program for NASA’s Science Mission Directorate in Washington. The Smithsonian Astrophysical Observatory controls Chandra’s science and flight operations from Cambridge, Mass.

By Francis Reddy
NASA’s Goddard Space Flight Center, Greenbelt, Md.
