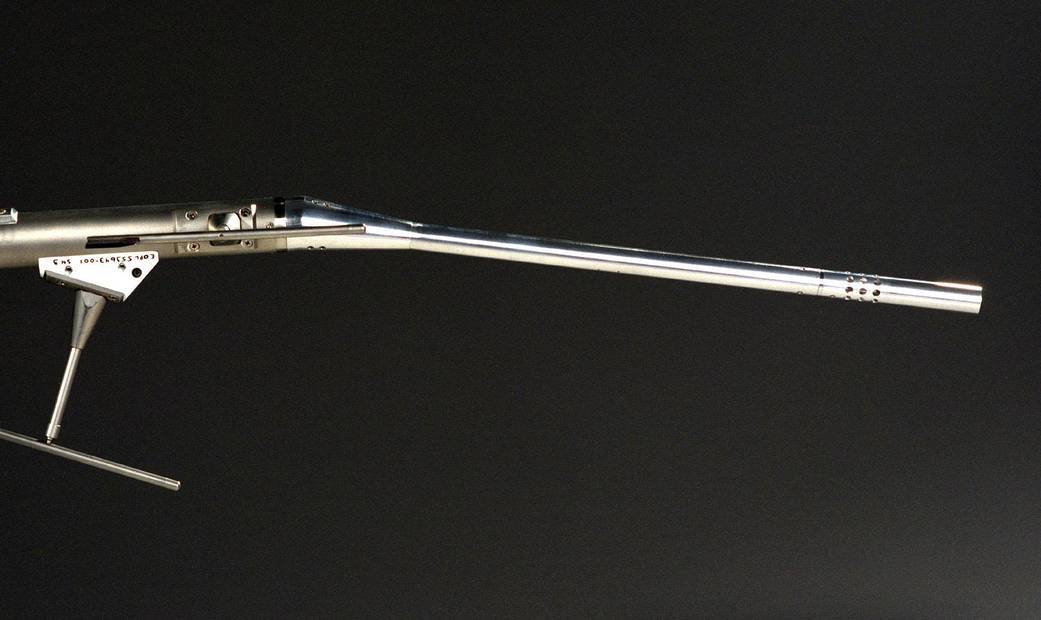

The noseboom on the X-31 shows the Kiel air data probe angled at 10 degrees to better align the tip with the airflow at very high angles of attack.
EC93-42024-1
The noseboom on the X-31 shows the Kiel air data probe angled at 10 degrees to better align the tip with the airflow at very high angles of attack. The devices were mounted on the nose of the X-31s to measure air pressure. Icing in the unheated Kiel probe on the first X-31 (Bu. No. 164584), caused that aircraft to crash on January 19, 1995. The aircraft obtained data that may apply to the design and development of highly-maneuverable aircraft of the future. Each had a three-axis thrust-vectoring system, coupled with advanced flight controls, to allow it to maneuver tightly at very high angles of attack.June 1993NASA / Ken Wiersema› X-31 Project Description
