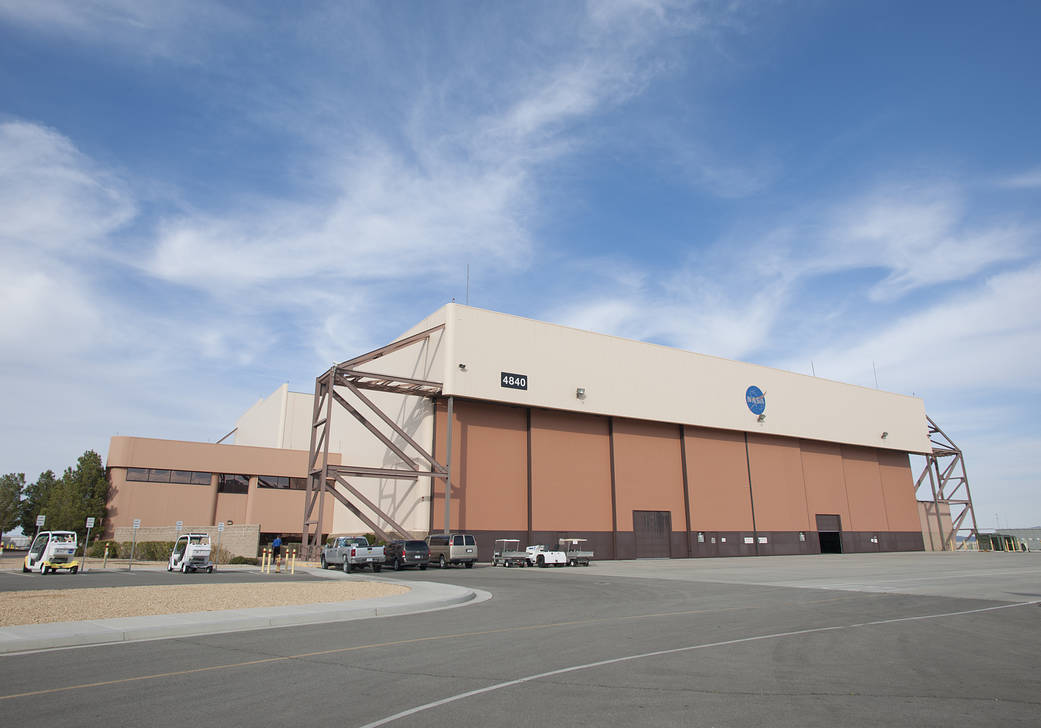

4840 – Walter C. Williams Research Aircraft Integration Facility currently houses research project aircraft.
Current Use: Active; research project aircraft.
Capacities: Six high bay aircraft test areas; three on each side of building in three physically separated areas.
- Test bays 1, 2, & 3 are located behind a single door that is 50’H and spans 225′ (combined size is 135’D x 225’W – large enough for a single transport-size aircraft to be placed in the multiple bay area).
- Test bays 4 & 5 have a common door that is 125’W x 40’H (combined size is 99’D x 125’W).
- Test bay 6 has a door that is 100’W x 40’H. Test bay 6 is 99’D x 97’W. A full-height wall separates test bays 5 and 6. This is a secure hangar.
Test areas use portable ground equipment for hydraulics and air systems. Comfort cooling available through chillers.
Unique Capabilities: Aircraft-in-the-loop simulation, secured high bay with secured simulation laboratory. Remotely augmented vehicles systems, simulators, and laboratories; office and avionics laboratories. Ground vibration test capability.
Availability: 365 days a year
Point of Contact
NASA Armstrong Public Affairs
(661) 276-4447
