Moon Mission for Flight-Tested Navigation Doppler Lidar

Flight Test: Apr. 13, 2017

The third-generation NDL model — 60% smaller, three times faster, and with a greater range than its predecessor that flew on the Morpheus vehicle — was demonstrated aboard a Flight Opportunities-supported flight on the Xodiac rocket-powered lander in 2017. The vertical takeoff/vertical landing vehicle rose to 500m before performing a 300m divert trajectory to a landing pad downrange, enabling NDL to demonstrate its capabilities.

This flight testing with Masten Space Systems (now Astrobotic) was instrumental in bridging the gap in technology maturation toward spaceflight. The lessons learned from this testing were critical in design, build, and testing of an NDL Engineering Test Unit that met the criteria of Technology Readiness Level 6 (i.e., a model or prototyping demonstration in a relevant end-to-end environment). The rocket-powered Xodiac vehicle provided a unique environment for examining the effect of landing vehicle dynamics on the NDL operation.

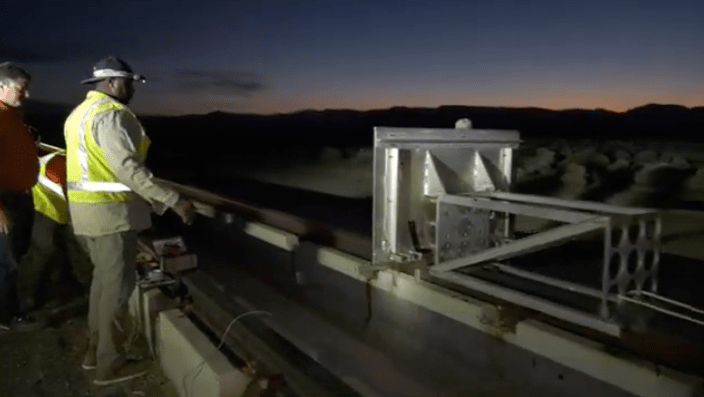

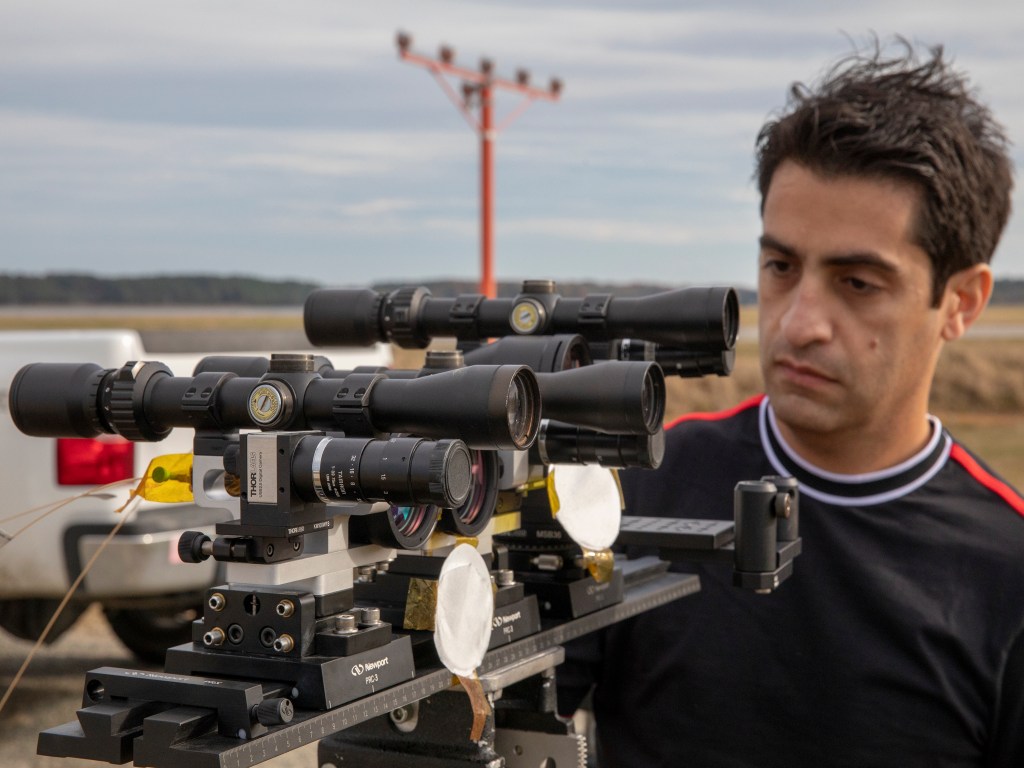

NASA’s Space Technology Mission Directorate (STMD) further matured the NDL technology as part of the Safe and Precise Landing – Integrated Capabilities Evolution (SPLICE) project. This project is a descent and landing system that integrates multiple component technologies (like NDL), including avionics, sensors, and algorithms, to provide safe and precise planetary landings in hard-to-reach and unknown areas that are of high scientific interest.

The NDL technology is one of four technologies incorporated into SPLICE playing a role in aiding navigation and landing. It activates when a lander is at ~4 miles (6.4 kilometers) in altitude and transmits laser beams to the Moon’s surface. The reflected beams allow NDL to detect the lander’s velocity and altitude as it approaches the lunar surface, which increases the precision of the navigation and guidance algorithms running on the descent and landing computer.

In 2016, Psionic licensed the NDL technology from NASA and created a commercial version.

The NDL technology was the named NASA’s 2022 Invention of the Year in the commercial category, which recognizes a technology that has been licensed and resulted in commercial sales.

NASA selected the NDL technology as a payload on two lunar missions within the CLPS (Commercial Lunar Payload Services) initiative: the Astrobotic Peregrine Mission 1 that launched in January 2024 and the Intuitive Machines inaugural mission, IM-1, that launched and landed in February 2024. For IM-1, NDL was one of six payloads that landed on the Moon on February 22, 2024, marking the first U.S. landing on the lunar surface in decades.

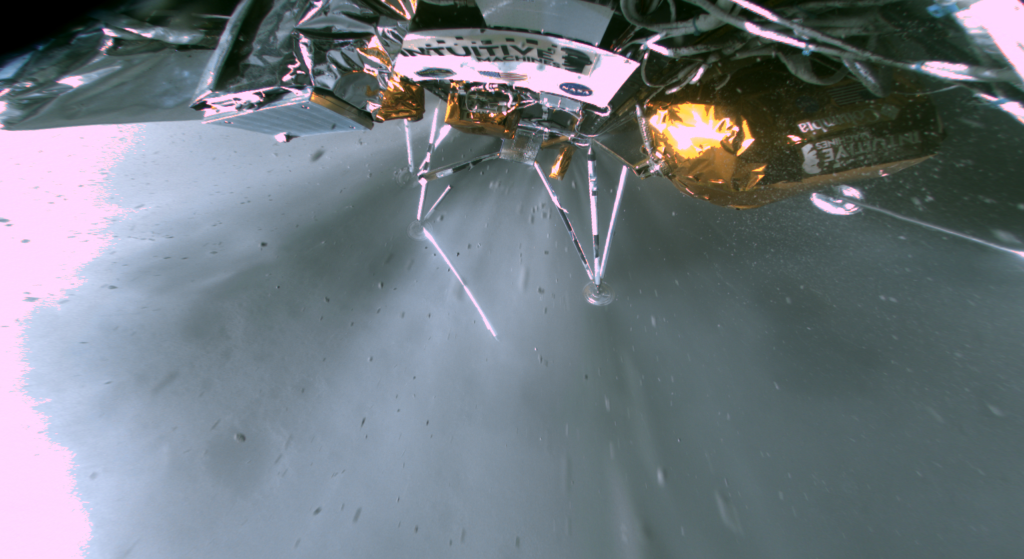

During the flight on IM’s Odysseus lunar lander, NDL was poised to aid the landing when the vehicle’s navigation system encountered an issue. Gathering data during descent, NDL provided 100% valid measurements from 10 km to the Moon’s surface providing an excellent demonstration of NDL’s potential for future lunar landing missions.

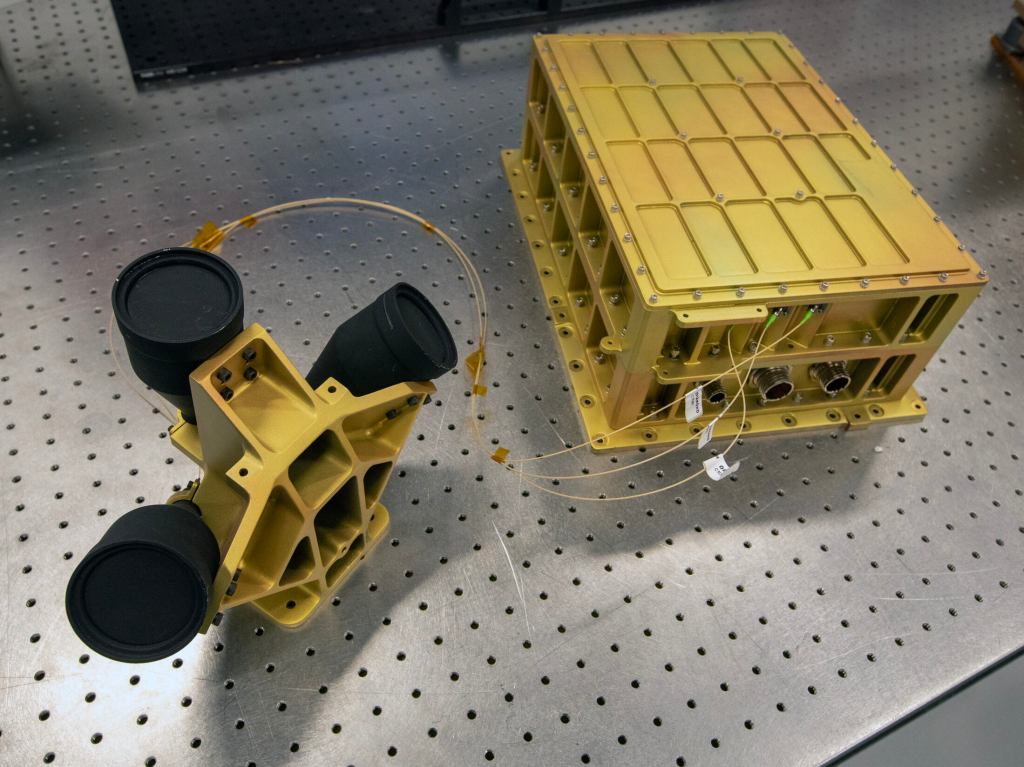

A copy of the NDL engineering test unit (identical to the one flown on both the Astrobotic Peregrine and Intuitive Machines Odysseus CLPS missions) has been assembled and delivered by Psionic to Astrobotic for their upcoming Griffin Mission 1.
