Schlieren Images Reveal Supersonic Shock Waves

The headshot image of NASA

NASA

Aug 25, 2015
Image Article

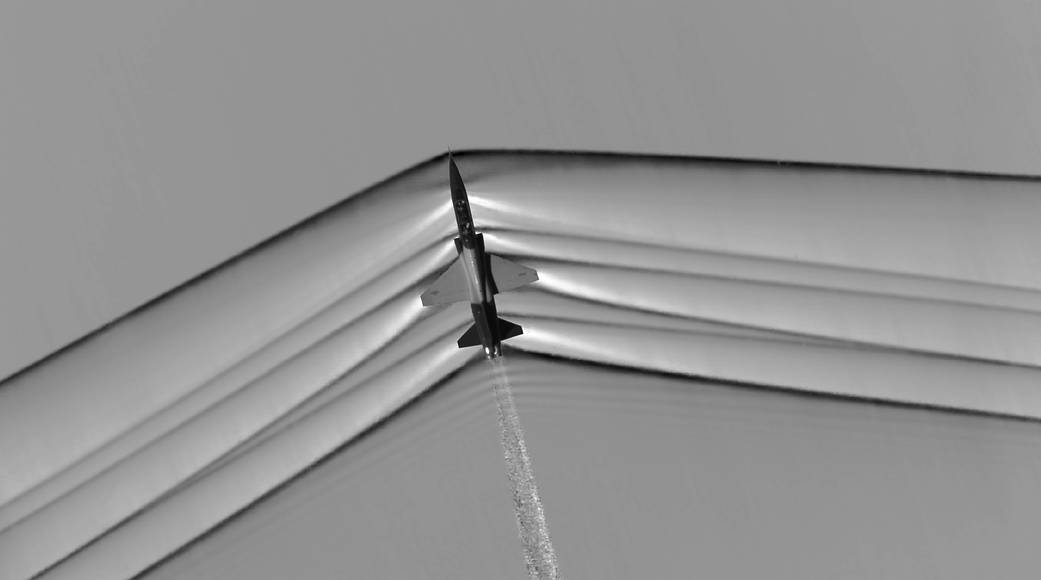

This schlieren image dramatically displays the shock wave of a supersonic jet flying over the Mojave Desert.
This schlieren image dramatically displays the shock wave of a supersonic jet flying over the Mojave Desert.

AirBOS_F7_P5

This schlieren image dramatically displays the shock wave of a supersonic jet flying over the Mojave Desert. Researchers used NASA-developed image processing software to remove the desert background, then combined and averaged multiple frames to produce a clear picture of the shock waves.
