X-43A Hyper-X

Updated Jan 5, 2024
Artist's Conception: X-43A Dual-Mode Ramjet/Scramjet Propulsion System
An artist's conception of the X-43A Hypersonic Experimental Vehicle, or "Hyper-X" in flight.

X-43A Flight Makes Aviation History

NASA made aviation history with the first and second successful flights of a scramjet-powered airplane at hypersonic speeds – speeds greater than Mach 5 or five times the speed of sound. Compared to a rocket-powered vehicle like the Space Shuttle, scramjet (supersonic combustion ramjet) powered vehicles promise more airplane-like operations for increased affordability, flexibility and safety for ultra high-speed flights within the atmosphere and into Earth orbit. Because they do not have to carry their own oxidizer, as rockets must, vehicles powered by air-breathing scramjets can be smaller and lighter – or be the same size and carry more payload.

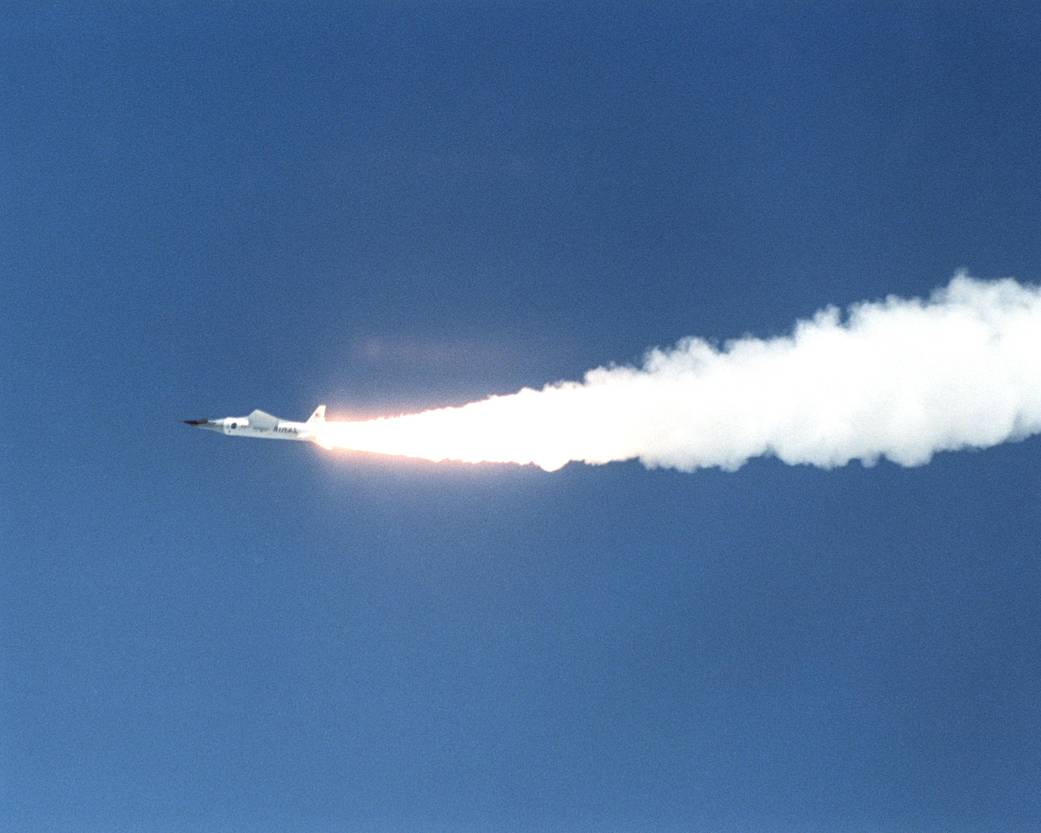

Pegasus Booster with X-43A Attached Released from B-52
The first X-43A hypersonic research aircraft and its modified Pegasus booster rocket were carried aloft by NASA’s NB-52B carrier aircraft from Dryden Flight Research Center at Edwards, CA, on June 2, 2001 for the first of three high-speed free flight attempts.
NASA/Jim Ross

Researchers have worked for decades to demonstrate scramjet technologies, first in wind tunnels and computer simulations, and now in an airplane in flight. Ultimate applications include future hypersonic missiles, hypersonic airplanes, the first stage of two-stage-to-orbit reusable launch vehicles and single-stage-to-orbit reusable launch vehicles.

High-Risk, High-Payoff Program

The eight-year, approximately $230 million NASA Hyper-X program was a high-risk, high-payoff research program. It undertook challenges never before attempted. No vehicle powered by an air-breathing engine had ever flown at hypersonic speeds before the successful March 2004 flight. In addition, the rocket boost and subsequent separation from the rocket to get to the scramjet test condition had complex elements that had to work properly for mission success. Careful analyses and design were applied to reduce risks to acceptable levels; even so, some level of residual risk was inherent to the program.

Hyper-X research began with conceptual design and wind tunnel work in 1996. Three unpiloted X-43A research aircraft were built. Each of the 12-foot-long, 5-foot-wide lifting body vehicles was designed to fly once and not be recovered. They are identical in appearance, but engineered with slight differences that simulate variable engine geometry, generally a function of Mach number. The first and second vehicles were designed to fly at Mach 7 and the third at Mach 10. At these speeds, the shape of the vehicle forebody served the same purpose as pistons in a car, compressing the air as fuel is injected for combustion. Gaseous hydrogen fueled the X-43A.

The Record-Breaking Flight

After the first flight attempt in June of 2001 failed when the booster rocket went out of control, the second and third attempts resulted in highly successful, record-breaking flights. Mach 6.8 was reached in March of 2004, and Mach 9.6 was reached in the final flight in November of 2004.

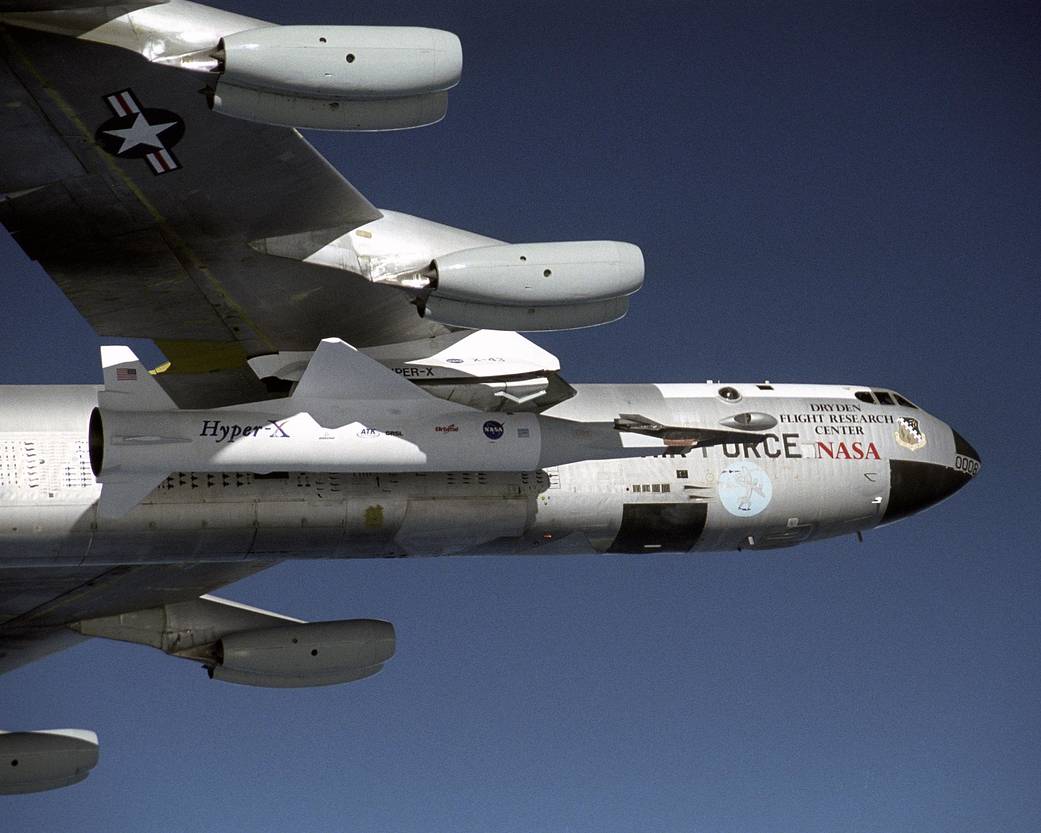

X-43A and Pegasus Booster Rocket Attached to B-52
The third X-43A hypersonic research aircraft, attached to a modified Pegasus booster rocket, was taken to launch altitude by NASA’s B-52B launch aircraft from the NASA Dryden Flight Research Center at Edwards, CA, on November 16, 2004.
NASA/Carla Thomas

At nearly 5,000 mph, the March flight easily broke the previous world speed record for a jet-powered (air breathing) vehicle. The X-43A research vehicle was boosted to 95,000 feet for a brief preprogrammed engine burn at nearly Mach 7, or seven times the speed of sound. During its third and final flight – at nearly Mach 10 – the X-43A research vehicle flew at approximately 7,000 mph at 110,000 feet altitude, setting the current world speed record for an air-breathing vehicle.

The Mach 10 research vehicle featured additional thermal protection, since expected heating was roughly twice that experienced by the Mach 7 vehicle. Carbon-carbon composite material, for instance, was added to the leading edges of the vehicle’s vertical fins to handle the higher temperatures.

Both flights began with the stack being carried by a B-52B aircraft from NASA’s Dryden Flight Research Center to a predetermined point over the Pacific Ocean, 50 miles west of the Southern California coast. Release altitude from the B-52B was 40,000 feet for both successful flights. At that point, each stack was dropped from the B-52B, and the booster lifted each research vehicle to its unique test altitude and speed.

Other than differences of altitude, speed and distance covered, the Mach 10 flight profile followed that of the Mach 7 flight: The Mach 10 research vehicle separated from the booster and flew under its own power and preprogrammed control. It was separated from the booster rocket by two small pistons. Shortly after separation, its scramjet engine operated for about ten seconds obtaining large amounts of unique flight data for an airframe-integrated scramjet. The engine thrust was very close to its design value in each flight – sufficient to accelerate the vehicle during the Mach 7 flight and to allow the vehicle to cruise at constant velocity in the Mach 10 flight.

In each case, when the scramjet engine test was complete, the vehicle went into a high-speed maneuvering glide and collected nearly ten minutes of hypersonic aerodynamic data while flying to a mission completion point, hundreds of miles due west (450 miles at Mach 7, 850 miles at Mach 10) in the Naval Air Warfare Center Weapons Division Sea Range off the southern coast of California. Each vehicle splashed into the ocean, as planned, and was not recovered.

Guinness World Records has recognized both the Mach 6.8 and Mach 9.6 accomplishments and has listed the flights on their web site and in the 2006 edition of their book of records. Prior to the 2004 X-43A flights, the previous record was held by a ramjet-powered missile that achieved slightly over Mach 5. The highest speed attained by a rocket-powered airplane, NASA’s X-15 aircraft, was Mach 6.7. The fastest air-breathing, crewed vehicle, the SR-71 achieved slightly over Mach 3. The X-43A more than doubled the top speed of the jet-powered SR-71.

2001 Flight and Investigation

The first flight attempt of the X-43A was in June of 2001. Unfortunately, the booster failed and had to be destroyed early in flight. As a result, the research vehicle was not tested because it never reached test conditions. Although no single contributing factor was found, the root cause of the problem was identified as the booster’s flight control system. The booster failed due to inaccurate design models that overestimated the capability of the flight control system to operate within predicted flight conditions.

Screen Capture Depicts X-43A Free Flight
This image (captured from animation video) illustrates the X-43A research vehicle alone after separation from the Pegasus booster. (LaRC Photo # EL-2000-00531)

 The Hyper-X program has significantly expanded the boundaries of air-breathing flight by being the first to fly a “scramjet” powered aircraft at hypersonic speeds. Numerous actions were taken in response to the findings. Wind tunnel tests were conducted to provide data to reduce atmospheric loads on the booster’s control surfaces, more powerful booster fin actuators were added to overcome aerodynamic loads, and propellant was machined out of the Pegasus booster to enable launch at its normal launch altitude of 40,000 feet instead of 23,000 feet – as on the first flight – in order to reduce aerodynamic loads.

How Scramjets Work

A ramjet operates by subsonic combustion of fuel in a stream of air compressed by the forward speed of the aircraft itself, as opposed to a normal jet engine, in which the compressor section (the fan blades) compresses the air. Ramjets operate from about Mach 3 to Mach 6.

A scramjet (supersonic-combustion ramjet) is a ramjet engine in which the airflow through the engine remains supersonic. Scramjets powered vehicles are envisioned to operate at speeds up to at least Mach 15. Ground tests of scramjet combustors have shown this potential, but no flight tests have surpassed the Mach 9.6 X-43A flight.

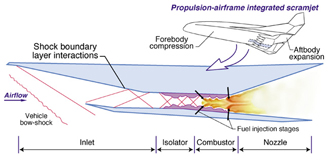

A hypersonic diagram
This simplified graphic illustrates how air and fuel mix at supersonic speeds inside a scramjet engine to propel the vehicle to many times the speed of sound. Supersonic speeds are greater than the speed of sound.
NASA Illustration

Langley and Dryden – A Joint Effort

The Hyper-X Program, managed by the Aeronautics Research Mission Directorate in Washington, was conducted jointly by the Langley Research Center in Hampton, Virginia, and the Dryden (now Armstrong) Flight Research Center in Edwards, California. Langley was lead center, responsible for hypersonic technology development. Dryden was responsible for flight research, hardware integration, and testing.

NASA’s Aeronautics Research Mission Directorate develops tools and technologies that can help transform how the air transportation system operates, how new aircraft are designed and manufactured, and how our Nation’s air transportation system can reach unparalleled levels of safety.

ATK GASL (formerly MicroCraft, Inc.), Tullahoma, Tennessee, and Ronkonkoma, New York, built the three X-43A research aircraft and engines. Boeing Phantom Works in Huntington Beach, California, designed the thermal protection and onboard systems. The booster was a modified Pegasus rocket built by Orbital Sciences Corp. in Chandler, Arizona.
