MADCAP

Conjunction Risk Assessment

Multimission Automated Deepspace Conjunction Assessment Process (MADCAP)

The Multimission Automated Deepspace Conjunction Assessment Process (MADCAP) at NASA Jet Propulsion Laboratory (JPL) is responsible for screening ephemerides for NASA spacecraft not orbiting the Earth against ephemerides for other spacecraft orbiting the same central body/point.  Since there is no space surveillance network at other bodies because non-cooperative tracking is not currently available in those flight regimes, screening of predicted ephemerides against each other is the only way for satellite owner/operators to predict and mitigate close approaches.  NASA gladly accepts shared ephemerides from non-NASA operators who also have spacecraft at these bodies in the interest of flight safety.

GENERIC INTERFACE CONTROL DOCUMENT, Version 1 – October 2024

Conjunction Assessment Process For Mars Orbiters Rev3 (PDF)

Conjunction Assessment Process For Lunar Orbiters (PDF)

MADCAP Conjunction Events

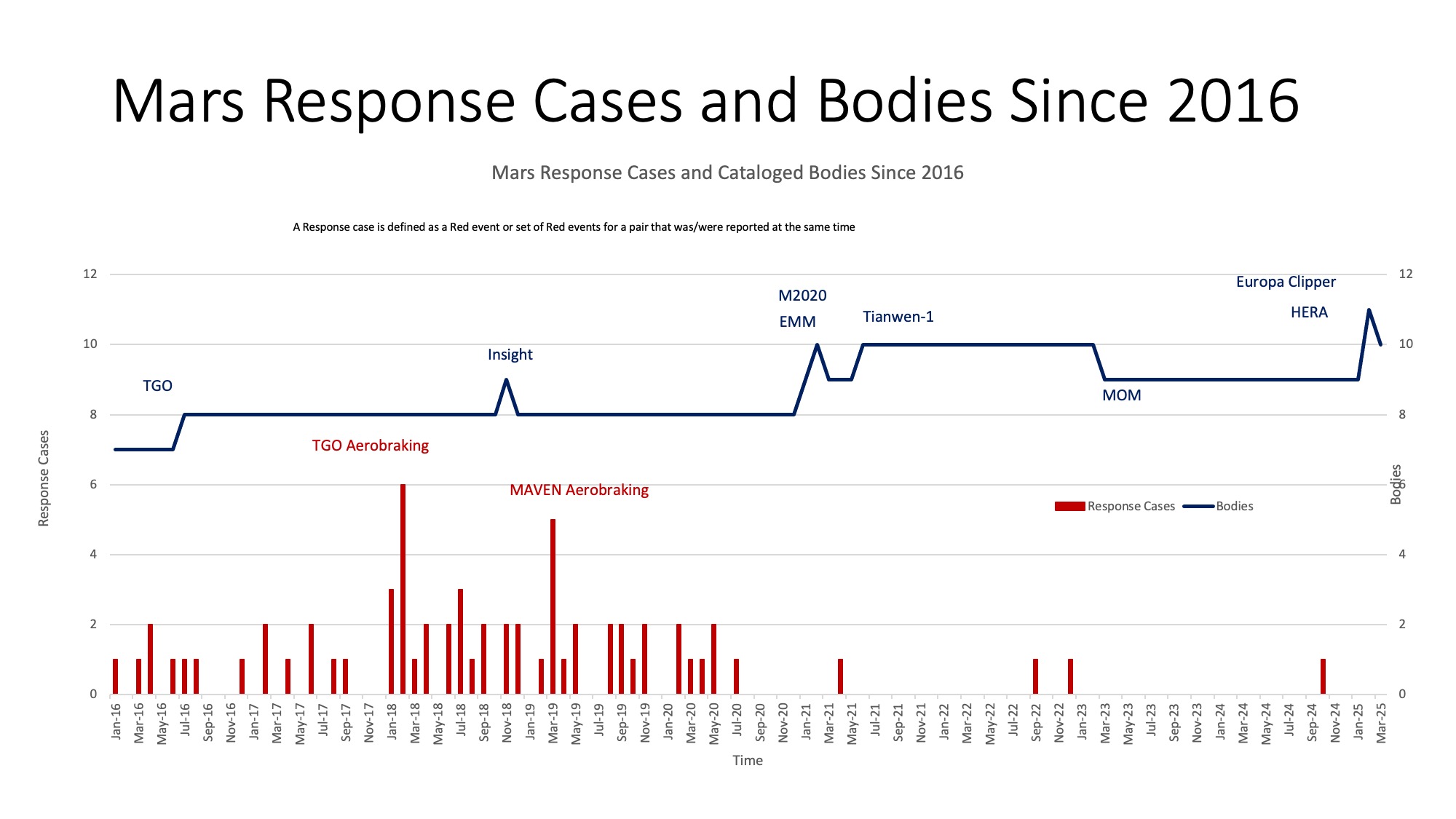

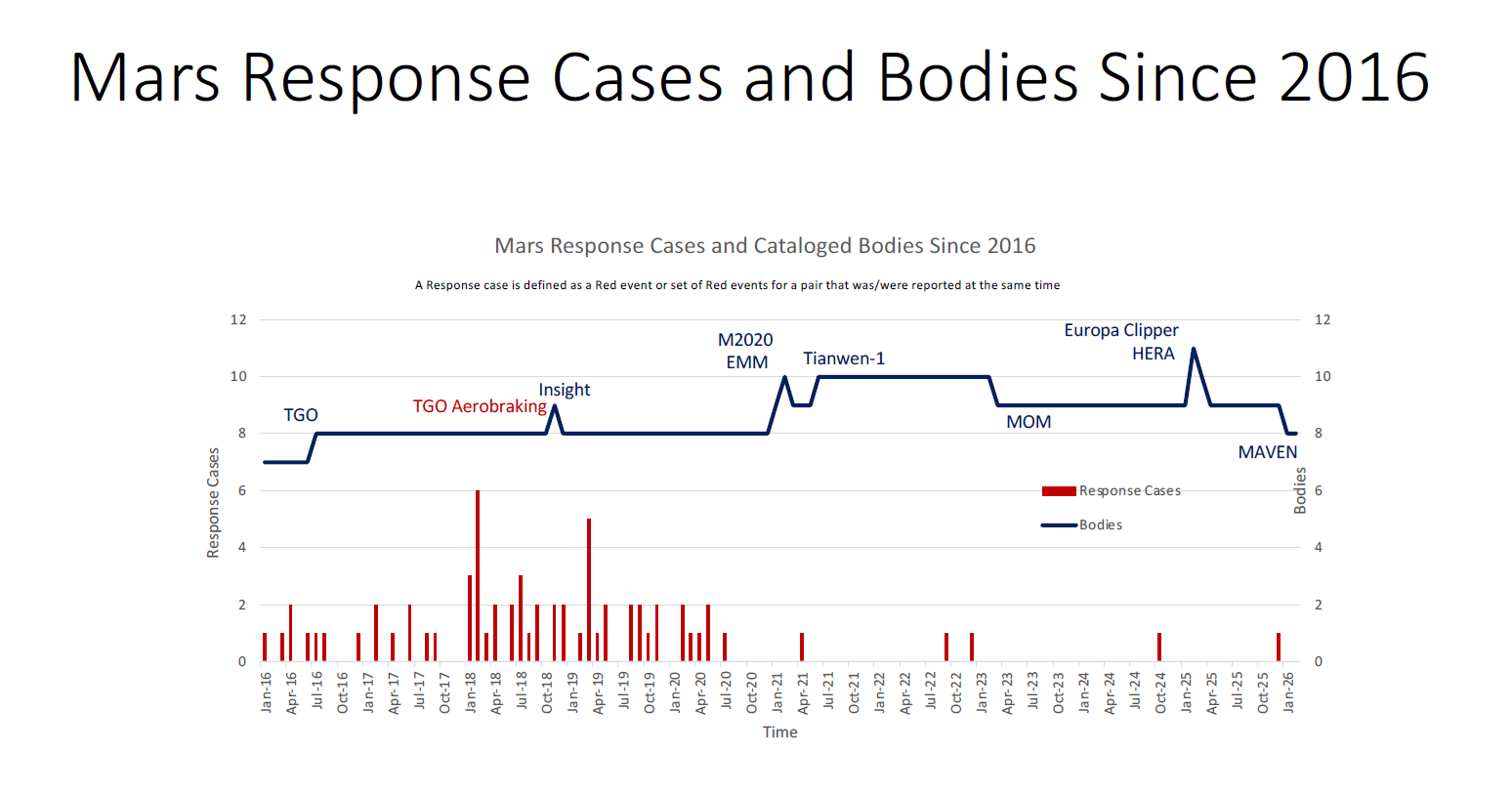

Mars Response Cases and Bodies Since 2016 chart displaying events
Mars Response Cases and Bodies Since 2016 chart displaying events

MADCAP publications

Recent Developments and Future Evolution (2024)

Zahi B. Tarzi, David S. Berry(1), Zach Kaufman, Jin Ma, Lauri K. Newman. This paper details recent MADCAP operational experience in the deep space environments, including statistics and process improvements. Updates to the MADCAP software and automation framework implemented to handle the recent growth in the number of deep space missions are also discussed. Future enhancements planned in anticipation of increasingly crowded deep-space environments, such as non-standard runs based on exploratory scenarios, are also discussed.

Deep-Space Conjunction Assessment: Recent Developments and Future Evolution (PDF)

Deriving Event Thresholds And Collision Probability for Automated Conjunction Assessment at Mars and The Moon (2022)
Tarzi, Zahi B., Young, Brian T., Berry, David S., “Deriving Event Thresholds and Collision Probability for Automated Conjunction Assessment at Mars and the Moon”, AAS 22-042, 2022 AAS/AIAA Astrodynamics Specialist Conference, Charlotte, NC, August, 2022. Detailed explanation of the development of thresholds used in MADCAP to determine whether or not spacecraft close approaches require active mitigation. Provides guidelines and methods for navigation teams to derive these thresholds from their orbit determination analysis.

AAS_22-042_paper

Automated Spacecraft Conjunction Assessment at Mars and the Moon-A Five Year Update (2018)
Berry, D., Tarzi, Z., Roncoli, R., Wilson, R., “Automated Spacecraft Conjunction Assessment at Mars and the Moon-A Five Year Update”, Paper 2810036, 14th International Conference on Space Operations, Marseille, France, May 2018. Provides a five year update on MADCAP operations at Mars and the Moon focusing on implementation of a number of features identified in the initial paper as “future work”. Also discussed are process changes in a few unplanned but important areas.

MADCAP Spaceops 2018 paper.pdf

An Updated Process for Automated Deepspace Conjunction Assessment (2015)
Tarzi, Z., Berry, D., Roncoli, R., “An Updated Process for Automated Deepspace Conjunction Assessment”, Paper AAS 14-373, 25th International Symposium on Space Flight Dynamics, Munich, Germany, October 2015. General update of MADCAP processing including improved classification of close approaches, more advanced automation, more informative reports. Special focus on close approaches of NASA’s LADEE and LRO during the LADEE mission, and process changes influenced by the MAVEN mission.

An Updated Process for Automated Deepspace Conjunction Assessment

Automated Spacecraft Conjunction Assessment at Mars and the Moon (2012)
Berry, D. S., Guinn, J. R., Tarzi, Z. B., & Demcak, S. W., “Automated Spacecraft Conjunction at Mars and the Moon”, Paper 1262983, 12th International Conference on Space Operations, Stockholm, Sweden, June 2012. Initial description of the Multimission Automated Deepspace Conjunction Assessment Process (MADCAP), originally used at Mars and the Moon but applicable to other shared orbital environments.

Automated Spacecraft Conjunction Assessment at Mars and the Moon
