Acoustic Buffer Zone

Surrounded by a 125,000-acre acoustical buffer zone, NASA Stennis provides unique services and capabilities to enhance its capacity to meet customer needs and maintain mission success. The buffer zone remains critical to the current and future missions of NASA and the resident agencies and partners at NASA Stennis, and is considered a national asset. Because of this unique asset, NASA Stennis can test large engines or rocket stages 24/7/365, thus minimizing the impact to local communities by loud and low-frequency sound waves produced in the propulsion test complex. The 13,800-acre “fee area” is where day-to-day center operations and business are conducted. Close proximity to highways, interstates, and river access to the Gulf of Mexico make NASA Stennis a perfect logistics location for manufacturing, assembly, and/or testing of various hardware and equipment.

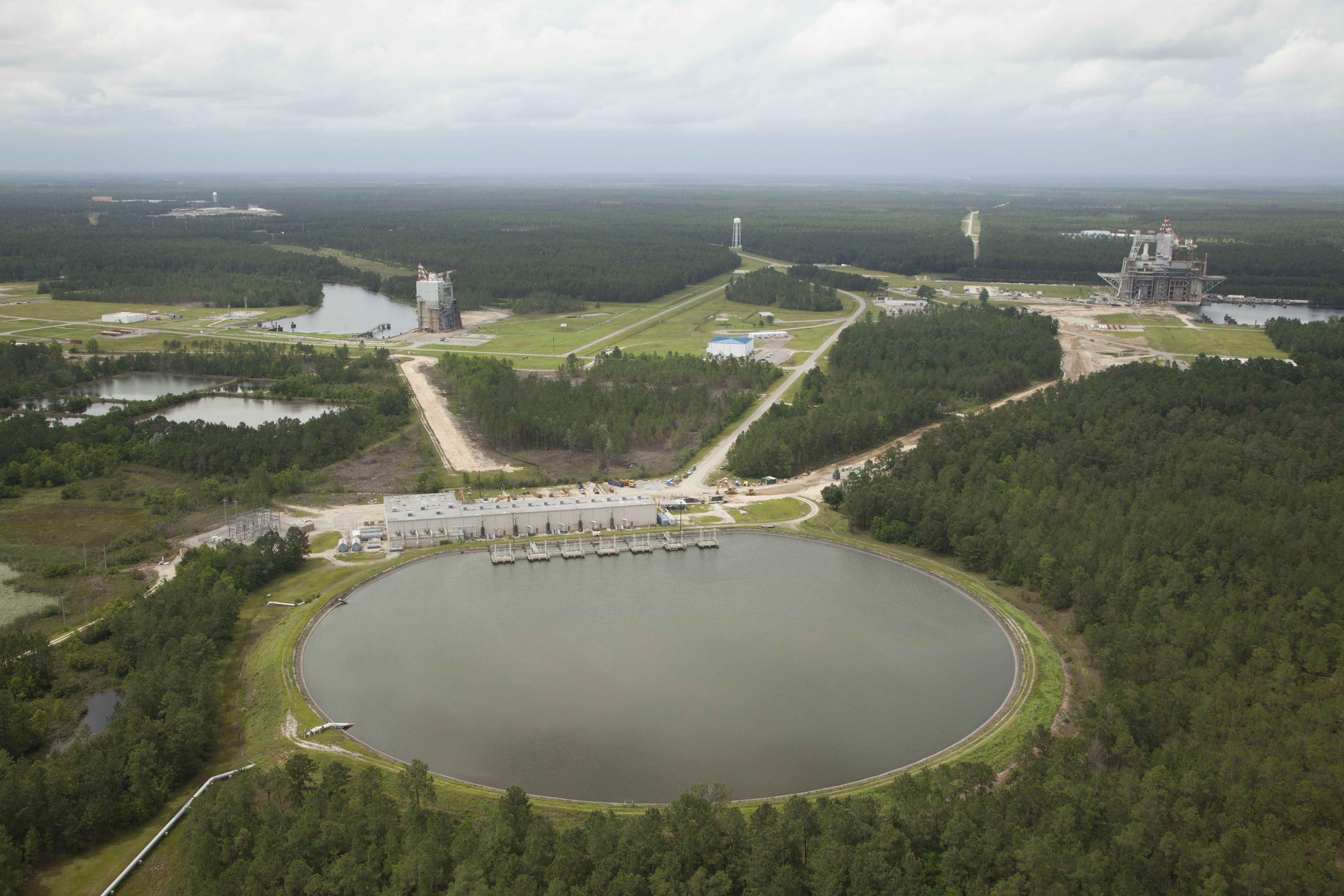

High Pressure Industrial Water (HPIW)

355,000 gpm (66 M gallon reservoir storage capacity)

• 66,000,000 gallon reservoir
• Ten diesel-driven pumps with a total capacity of 330,000 gallons per minute
• Piping and foundation to expand to 13 pumps

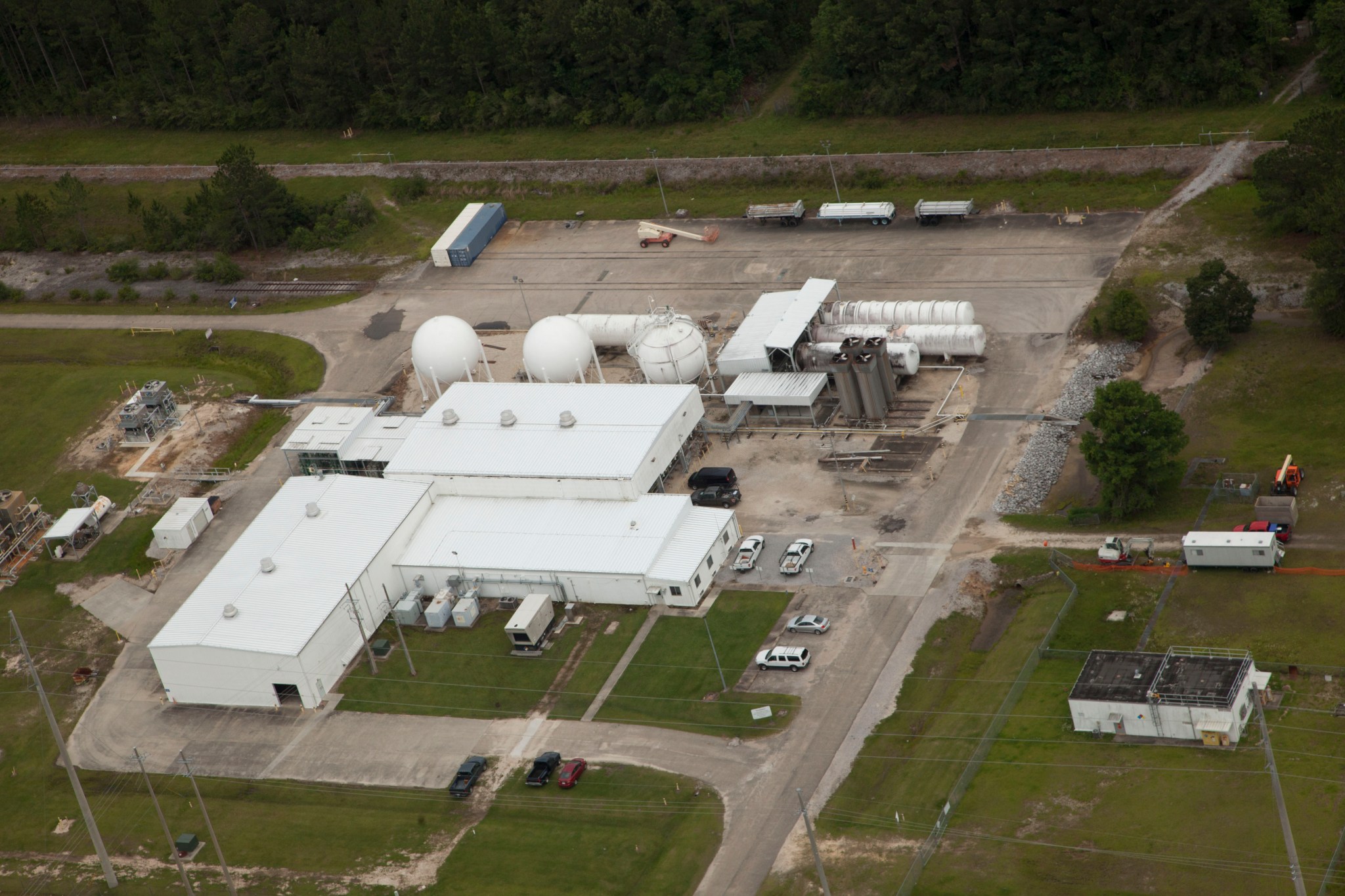

High Pressure Gas Facility (HPGF)

Storage and Distribution of GN, GHe, GH, Air

• Gaseous Nitrogen (GN2)
  • Pressure 4,400 psig, flow 28.8 lbs/sec
• Gaseous Hydrogen (GH2)
  • Pressure 3,000 psig, flow 4.3 lbs/sec
• Gaseous Helium (GHe)
  • Pressure 4,000 psig, flow 2.4 lbs/sec
  • 700,000 scf
• High Purity Air (HPA)
  • Pressure 3,000 psig

Auxiliary Storage: Six movable, trailer-mounted tube bank storage vessels available for storage and transfer of gaseous nitrogen, gaseous helium, high purity air, and gaseous hydrogen.

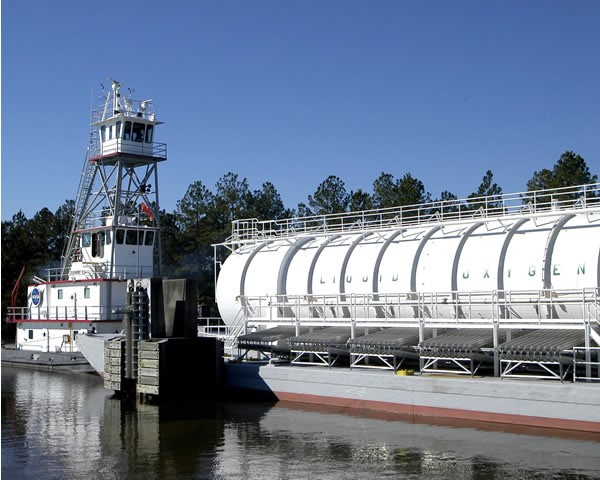

Cryogenic Propellant Systems

Six (6) 100,000 gal liquid oxygen (LOX) barges

Three (3) 240,000 gal liquid hydrogen(LH)barges

• Storage, transfer and distribution of propellants
• Six 100,000-gallon liquid oxygen (LOX) barges
• Three 240,000-gallon liquid hydrogen (LH) barges

Emergency Power-Generating System

• Four Cooper-Bessemer diesel engines, each driving a 4160-volt, 1875 volt amps (KVA) generator used to provide emergency electrical power.

Waterway Transportation

• 7-1/2-mile canal system
• NASA Stennis test complex connection to the Gulf of Mexico and associated waterways
• Barge transportation of large rocket stages
• Delivery of propellants to large test stands

Manufacturing & Assembly

• Over 800,000 square feet of industrial space is available
• Over 1100 acres of greenfield space is available (400 acres shovel ready)
• Allows co-location for manufacturing and assembly operations with test facilities

Additional Support Services

• Laboratories
  • Environmental
  • Gas and Material Analysis
  • Measurement Standards and Calibration
• Shops
  • Machine/Weld/Carpenter/Paint/Electrical
  • Valve/Component Cleaning/Rework
