NASA’s Flair for Flare: Engineers Test Hydrogen Burn-off Igniters for Space Launch System

NASA has a certain “flare” when it comes to safety on the launch pad.

Those flares are called hydrogen burn-off igniters — which resemble celebratory sparklers — and were successfully used to mitigate risk to a launch vehicle for space shuttle missions.

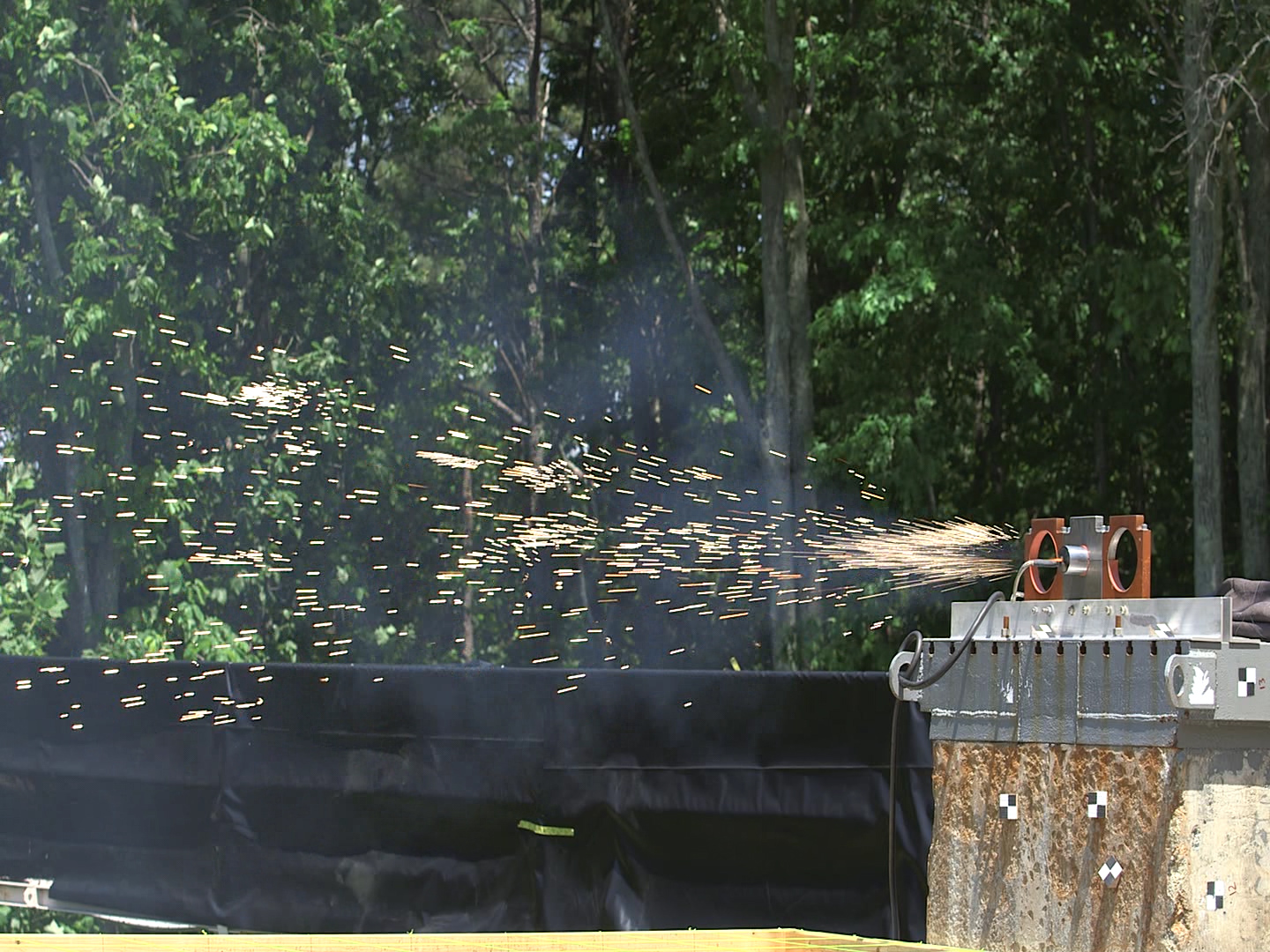

Sparks fly as a hydrogen burn-off igniter test is conducted May 5 at the Redstone Test Center on Redstone Arsenal in Huntsville.
Sparks fly as a hydrogen burn-off igniter test is conducted May 5 at the Redstone Test Center on Redstone Arsenal in Huntsville. The igniters will be used for NASA’s Space Launch System to burn off any free hydrogen that can potentially collect at the aft of the rocket about 10 seconds before liftoff.

A team of engineers is testing hydrogen burn-off igniters for NASA’s Space Launch System at NASA’s Marshall Space Flight Center in Huntsville, Alabama, where the program is managed for the agency. SLS will be the most powerful launch vehicle ever built. It is designed to be sustainable and evolve to carry crew and cargo on deep space missions, including an asteroid placed in lunar orbit, and ultimately to Mars.

NASA uses highly combustible propellants: liquid hydrogen and liquid oxygen to power the RS-25 engines. These engines, along with solid rocket boosters, lift the rocket into orbit.

“When the engines start up on the launch pad, there is a small amount of free hydrogen that can potentially collect at the aft of the rocket,” said Don Nance, a Jacobs Technology Inc. employee in the Fluid Dynamics branch of the Engineering Directorate at Marshall. “About 10 seconds before liftoff, the igniters burn off that excess hydrogen rather than let it burn on its own, which could be a safety concern.”

If too much excess hydrogen is allowed to accumulate beneath the vehicle and ignites, then the resulting blast wave could potentially damage the vehicle and the surrounding structure. Igniters are used to prevent large-scale accumulation of excess hydrogen from forming during launch. Engineers are testing the igniters to ensure that they function as intended, considering the SLS launch aspects of pad configuration, water suppression system and wind effects. The combination of these SLS launch aspects are different than the shuttle, necessitating the current test series.

Four RS-25 engines will be part of the rocket’s propulsion system, and the vehicle will have 12 hydrogen burn-off igniters per launch attempt. The igniters are not part of the propulsion system and don’t pose a risk to the engines themselves.

“Hydrogen burn-off igniters are more like small rocket motors than an explosive,” said David McDaniels, an aerospace engineer who also works in Marshall’s Fluid Dynamics branch. “They generate enough of a propellant plume to carry the sparks at least 15 feet to the right place to burn off any excess hydrogen.”

Nine tests are planned for the test series, which began May 5 at the Army’s Redstone Test Center on Redstone Arsenal in Huntsville.  The test center was used due to its certification in handling pyrotechnics, test stand availability and operation expertise for this kind of work.

During testing, the igniters are fired, and high-speed cameras record several measurements, including the throw distance and area coverage of the particles. Fans create various cross-wind environments similar to the conditions the vehicle may experience at launch. Weather permitting, testing will wrap up in mid-May.

“I’ve wanted to work on the space program ever since I was a little kid,” McDaniels said. “It’s great to be a part of testing for the rocket that will one day enable us to travel to Mars.”

The first flight test of SLS will feature a configuration for a 70-metric-ton (77-ton) lift capacity and carry an uncrewed Orion spacecraft beyond low-Earth orbit to test the performance of the integrated system. As the SLS evolves, it will provide an unprecedented lift capability of 130 metric tons (143 tons) to enable missions even farther into our solar system.
