NASA Tests New Engine Controller for First Space Launch System Flight

NASA marked a critical milestone March 23 with a test of the first RS-25 engine controller that will be used on the first flight of the new Space Launch System (SLS), the world’s most powerful rocket.

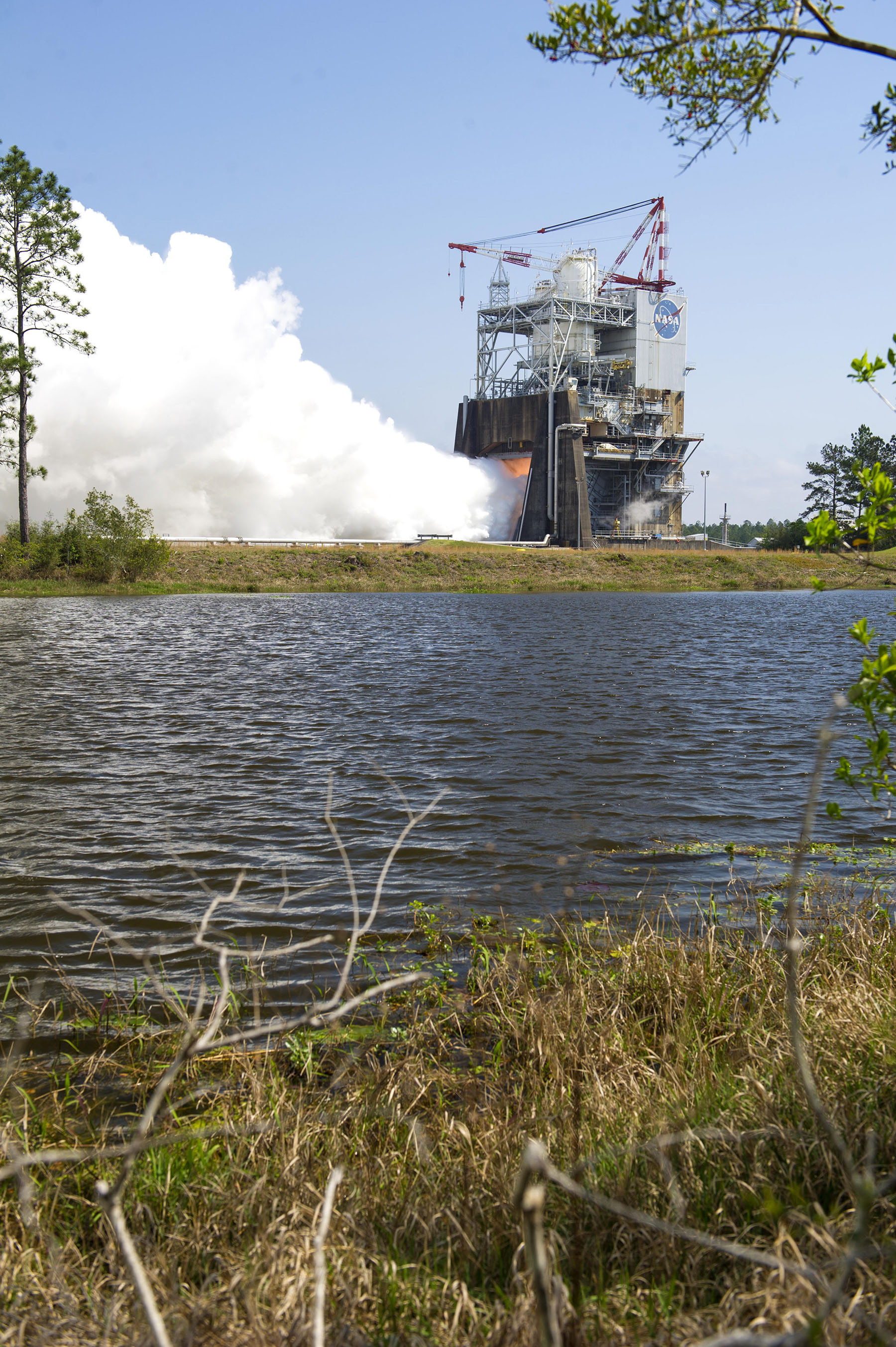

view of A-2 Test Stand during a test
NASA engineers conduct a test of the first RS-25 engine controller that will be used on an actual Space Launch System flight on the A-2 Test Stand at Stennis Space Center on March 23. The RS-25 engine, with the flight controller, was test fired for a full-duration 500 seconds.

The new controller or “brain” has the electronics that operate the engine and communicate with the SLS vehicle.  Engine Controller Unit-2 (ECU-2) was installed on RS-25 development engine No. 0528 and test fired for 500 seconds on the A-1 Test Stand at Stennis Space Center near Bay St. Louis, Mississippi. Once test data is certified, the engine controller will be removed and installed on one of four flight engines that will help power the first integrated flight of SLS and the Orion spacecraft.

This year, two more engine controllers for the first SLS mission will be tested on this development engine at Stennis, and then installed on flight engines. The fourth controller will be tested when NASA tests the entire core stage during a “green run” on the B-2 Test Stand at Stennis. That testing will involve installing the core stage on the stand and firing its four RS-25 flight engines simultaneously, as during a mission launch.

“This an important – and exciting – step in our return to deep space missions,” Stennis Director Rick Gilbrech said. “With every test of flight hardware, we get closer and closer to launching humans deeper into space than we ever have traveled before.”

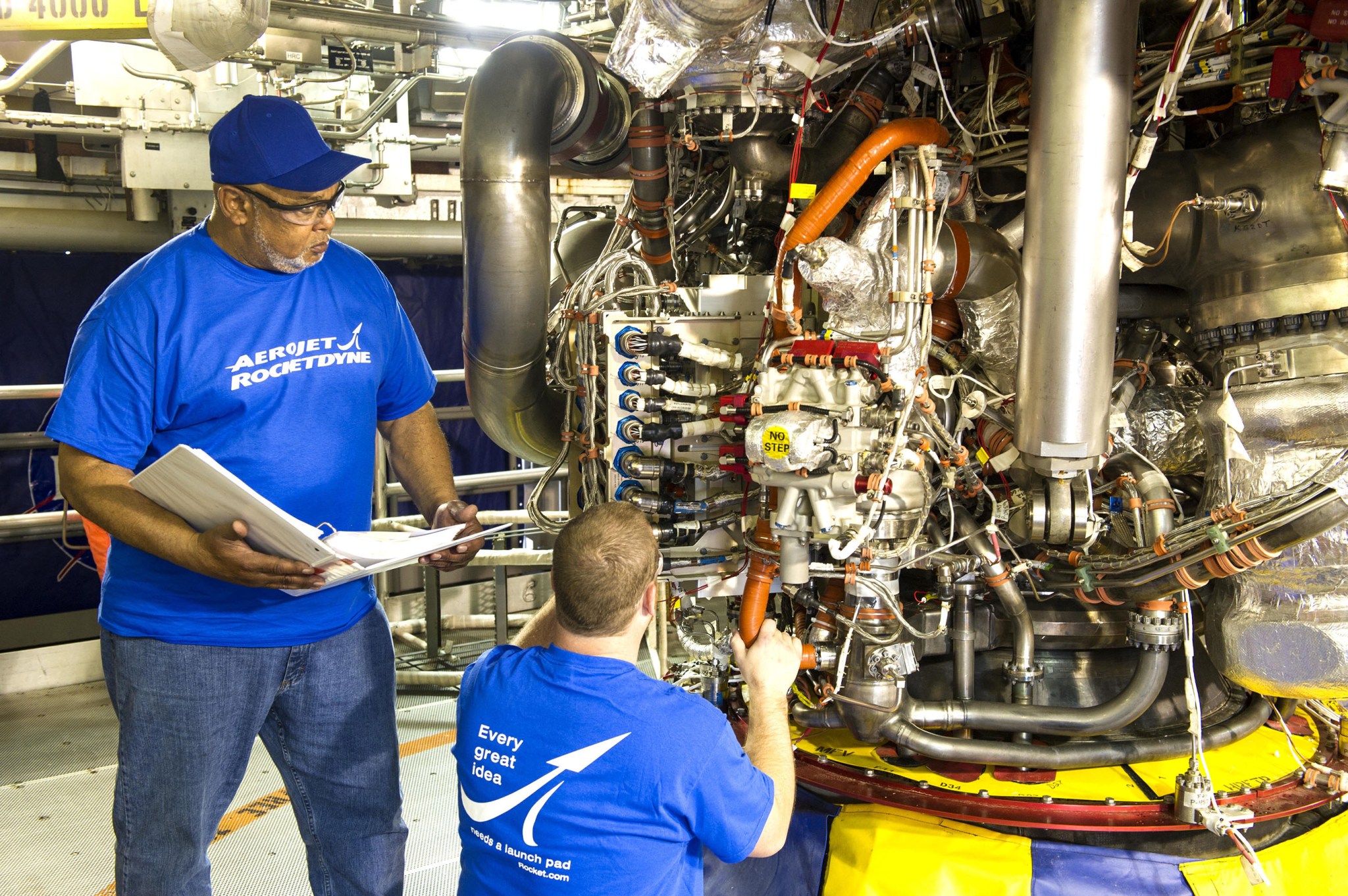

Aerojet Rocketdyne technicians inspect the engine controller
Aerojet Rocketdyne technicians inspect the engine controller for the first integrated flight of NASA’s Space Launch System and Orion. The engine controller was installed on RS-25 development engine no. 0528 for testing at Stennis Space Center. The engine controller is a modern version from the RS-25 controller that helped propel all of the space shuttle missions to space. The controller manages the engine by regulating the thrust and fuel mixture ratio and monitors the engine’s health and status – much like the computer in your car. The RS-25 and controller work are a collaborative effort between NASA and prime contractor Aerojet Rocketdyne of Sacramento, California, and subcontractor Honeywell of Clearwater, Florida. For the first flight of SLS, the four RS-25 engines, along with two solid rocket boosters, will power the spacecraft to thousands of miles beyond the moon. The data gleaned will help prepare for a journey to Mars. Credits: NASA/SSC

The RS-25 engines that will help power the SLS vehicle on its first flights are former space shuttle main engines, built for NASA by Aerojet Rocketdyne. Four engines will fire simultaneously to provide 2 million pounds of thrust and operate in conjunction with a pair of solid rocket boosters to power the SLS launch.

Space shuttle main engines were tested extensively and used to power 135 missions from 1981 to 2011. For SLS, the engines have been upgraded to operate at a higher level and under different conditions, and the flight controller was one of the critical new parts of the engine to enable performance under these new conditions.

Prior to a flight, performance specifications, such as the percentage of thrust needed, are programmed into the controller. The controller then communicates the specifications and monitors engine conditions to ensure they are being met, controlling such factors as propellant mixture ratio and thrust level.

Testing for the upgraded engines and new controllers is vital to ensure they will perform as needed within the operating parameters. For instance, space shuttle main engines operated at a maximum of 104.5 percent of power level capability. For SLS flights, the RS-25 engines must fire at 109 percent of capability. The engines also will operate with colder liquid oxygen and engine compartment temperatures, higher propellant pressure and greater exhaust nozzle heating.

“The importance of this testing cannot be overemphasized,” A-1 Test Director Jeff Henderson said. “Each test has specific objectives to determine how the engine will respond. The goal is to learn as much as we can about the performance of the engine.”

RS-25 testing at Stennis is conducted by a team of NASA, Aerojet Rocketdyne and Syncom Space Services engineers and operators. Aerojet Rocketdyne is the prime contractor for RS-25 engines. Syncom Space Services is the prime contractor for Stennis facilities and operations.
