Types of Scientific Balloons

The two types of balloons currently used by the NASA Balloon Flight program are zero-pressure and super-pressure.

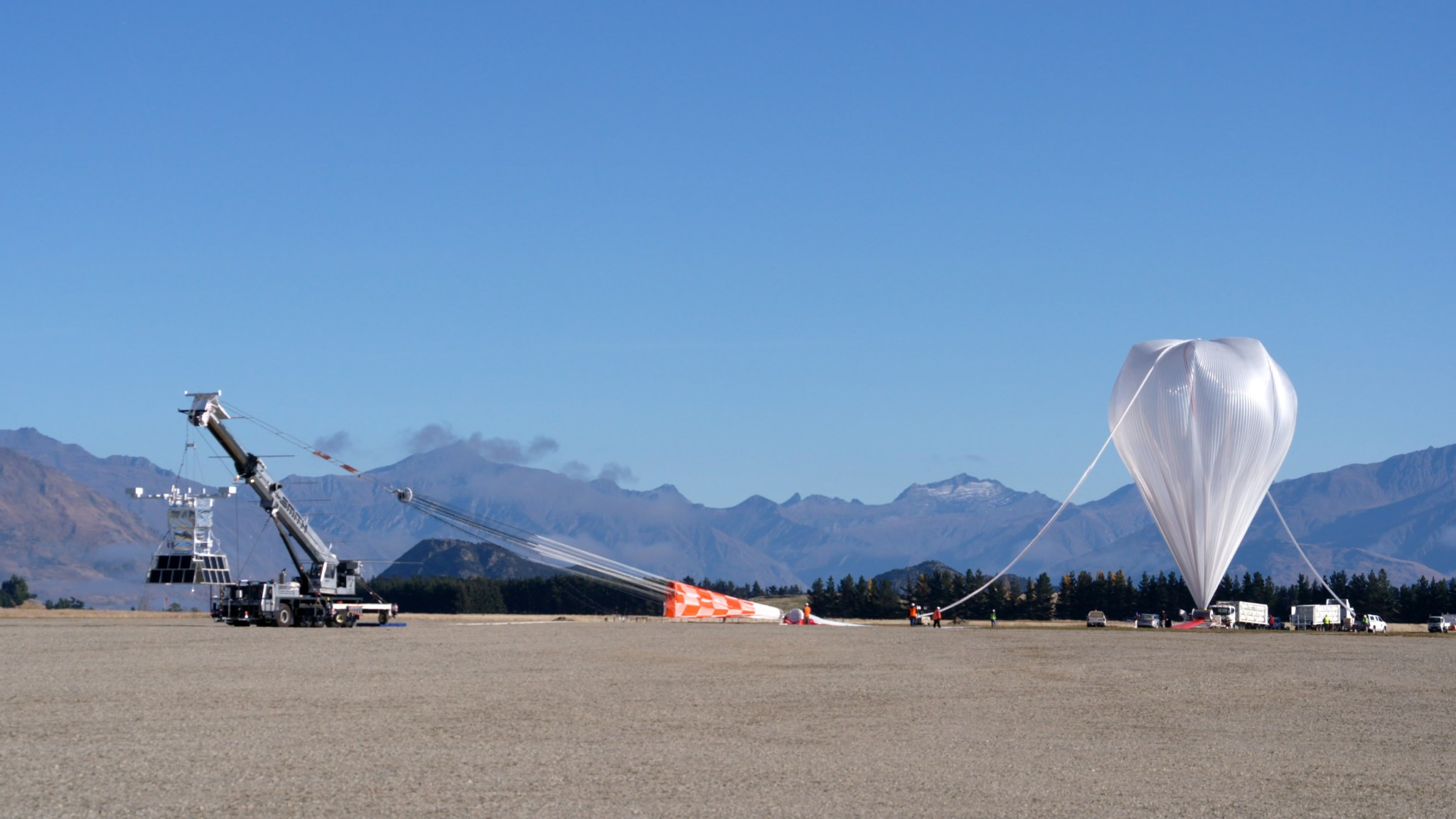

A crane is leading a scientific balloon before launch. The balloon is to the right, and appears an a plastic, upside down teardrop. A tube attached to the top of the balloon leads down to the ground where a number of personnel are holding it. To the left, a crane holding a large payload structure with many solar panels is attached to the end of the balloon.

Scientific balloons can lift up to 8,000 pound payloads!

NASA’s Balloon Program Office uses multiple types of balloons to lift scientific payloads into the atmosphere. The Balloon Program Office supports numerous space and Earth science research missions, and different balloons may be more beneficial to different payloads. The two types of balloons currently used by the NASA Balloon Flight program are zero-pressure and super-pressure. Though either balloon can be used for any flight type, zero-pressure balloons typically are used for short flights, whereas a super pressure balloon is required for an extended flight. The design of a zero-pressure balloon does not allow for extended flights except during the summer in the polar regions. Various balloon sizes with corresponding capabilities are available.

An infographic on NASA Scientific Balloons. "For several decades, NASA's Scientific Balloon Program, managed by Wallops Flight Facility in Virginia, has expertiv delivered low-cost near space access for scientific experiments and technology tests that contribute to our Understanding of the Earth. the solar system, and the universe."
Facts about NASA Scientific Balloons.

Zero-Pressure Balloons

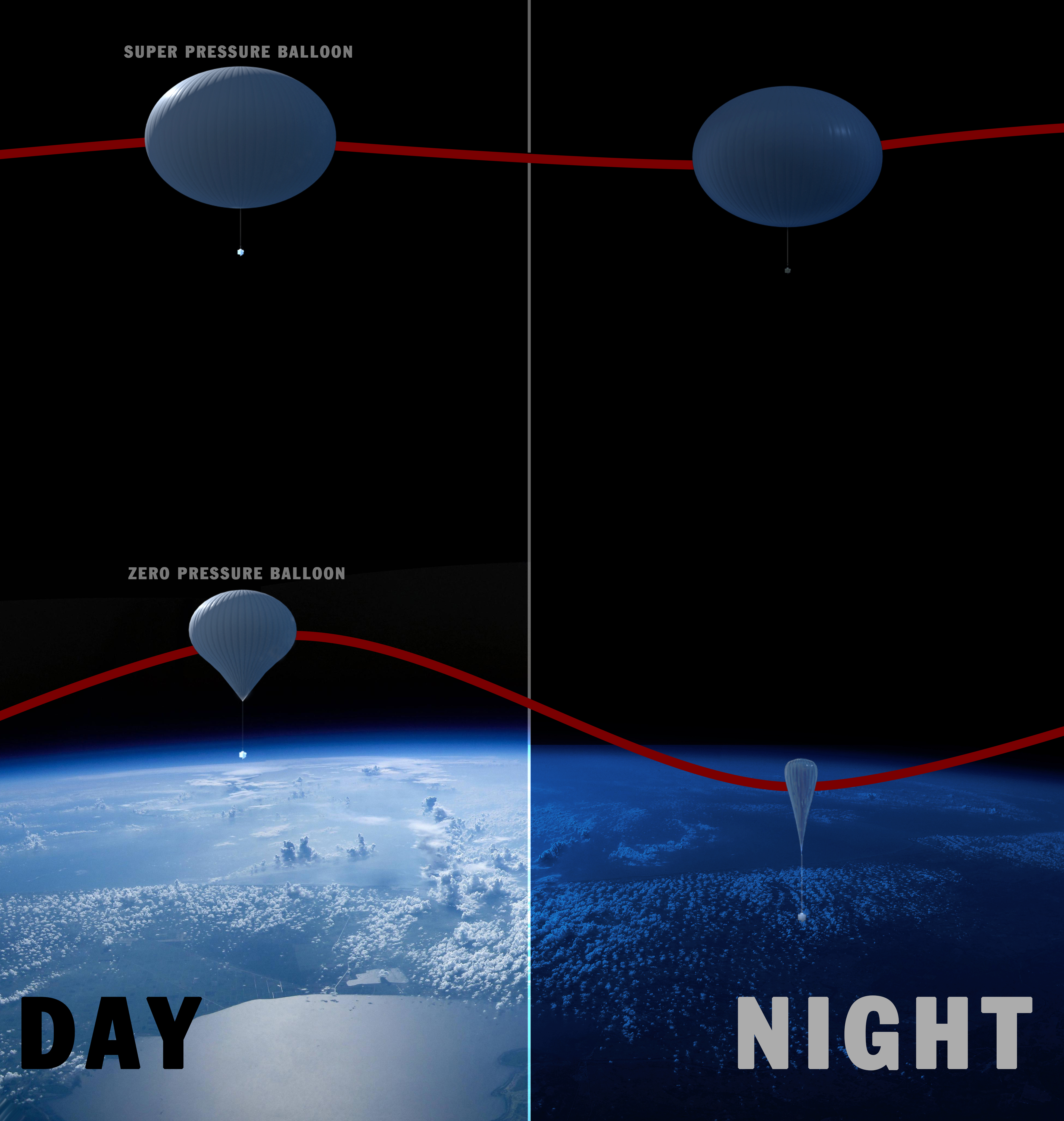

These balloons are open at the bottom and have open ducts hanging from the sides to allow gas to escape and to prevent the pressure inside the balloon from building up during gas expansion as the balloon rises above Earth’s surface. The duration of this type of balloon is limited because of gas loss, mostly due to the day/night cycling of the balloon.

Super-Pressure Balloons

(ULDB – Pumpkin)

These ultra-long distance balloons, or ULDBs, are completely sealed with no open ducts. Gas cannot escape the balloon and pressure builds up as the gas expands. Because gas loss is minimized in this balloon, super-pressure balloons can fly for longer durations than zero-pressure balloons. Because of their shape, they are called the Pumpkin.

Both types of balloons are made of thin plastic film, called polyethylene. The thickness is similar to that of plastic sandwich wrap. The most common size of NASA’s balloons is 40 million cubic feet, or a volume equivalent to more than 195 Goodyear blimps (a Goodyear Blimp measures 202,700 ft). When fully inflated, a football stadium could fit inside the balloon. Technicians inflate the balloons using helium gas. The balloons then float at altitudes around 120,000 feet, or more than twice as high as commercial airplanes.

A balloon in free-flight may encounter significant operational restrictions across a range of projected mission types.

You can fit 195 Goodyear Blimps inside a Zero-Pressure Balloon!


These restrictions may include:

(a) need to avoid high population centers for safety reasons for long duration missions;
(b) need to avoid regions restricted for geopolitical reasons;
(c) desired over flight of a specific region;
(d) desire to recover payload in acceptable areas; and,
(e) desire to enable new science, particularly for Earth Science.

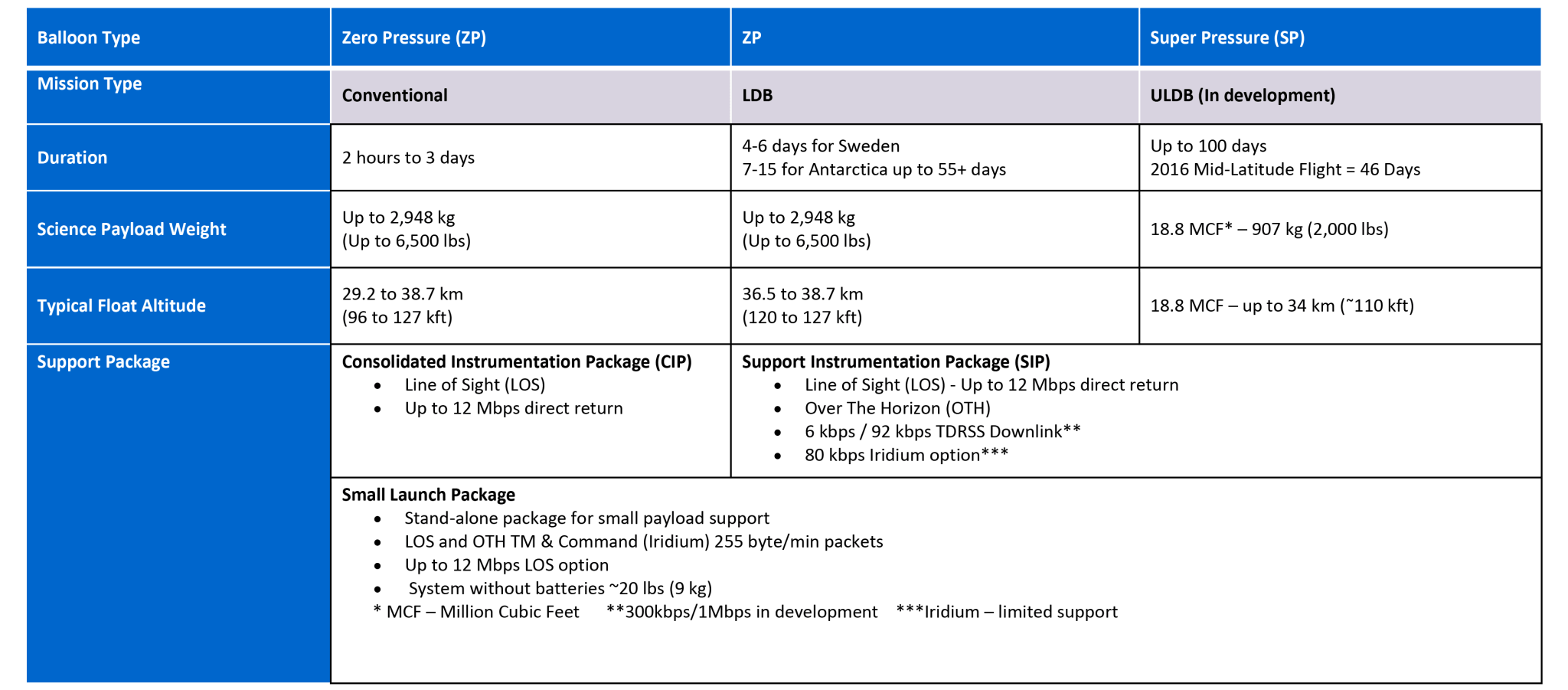

Chart outlining difference scientific balloon types.

Planetary Ballooning

The Balloon Program in collaboration with other NASA centers and private industry continued to investigate the feasibility of balloon missions on other planets and space bodies. Current NASA missions of interest are targeted for Mars, Venus and Titan. Balloons will enable in-situ measurements at different altitudes that are currently not feasible with other platforms such as satellites and rovers.
