STS070-S-001 (March 1995) --- Designed by the crew members, the STS-70 crew patch depicts the space shuttle Discovery orbiting Earth in the vast blackness of space. The primary mission of deploying a NASA Tracking and Data Relay Satellite (TDRS) is depicted by three gold stars. They represent the triad composed of spacecraft transmitting data to Earth through the Tracking and Data Relay Satellite System (TDRSS). The stylized red, white and blue ribbon represents the American goal of linking space exploration to the advancement of all humankind. Surnames of the five astronaut crew members are spaced around the periphery of the patch.    The NASA insignia design for space shuttle flights is reserved for use by the astronauts and for other official use as the NASA Administrator may authorize. Public availability has been approved only in the forms of illustrations by the various news media. When and if there is any change in this policy, which is not anticipated, the change will be publicly announced. Photo credit: NASA


Occurred 29 years ago

Deployed Tracking and Data Relay Satellite-G (TDRS-G).



mission duration

8 days, 22 hours, 20 minutes


July 13, 1995


July 22, 1995
Three men and two women in orange spacesuits pose for crew photo.
The crew assigned to the STS-70 mission included (front left to right) Kevin R. Kregel, pilot; Nancy J. Currie, mission specialist; Terrence T, Henricks, commander; Mary Ellen Weber, mission specialist, and Donald A. Thomas, mission specialist. Launched aboard the Space Shuttle Discovery on July 13,9:41:55.078 am (EDT), the STS-70 mission’s primary payload was the Tracking and Data Relay Satellite-G (TDRS-G).

STS-70 Mission Facts

Mission: TDRS-G
Space Shuttle: Discovery
Launch Pad: 39B
Launched: July 13, 1995 at 9:41:55.078 a.m. EDT
Landing Site: Kennedy Space Center, Florida
Landing: July 22, 1995 at 8:02 a.m. EDT
Runway: 33
Rollout Distance: 8,465 feet
Rollout Time: 57 seconds
Revolution: 143
Mission Duration: 8 days, 22 hours, 20 minutes, 5 seconds
Orbit Altitude: 160 nautical miles
Orbit Inclination: 28.45 degrees
Miles Traveled: 3.7 million


Terence T. Henricks, Commander
Kevin R. Kregel, Pilot
Nancy Jane Currie, Mission Specialist
Donald A. Thomas, Mission Specialist
Mary Ellen Weber, Mission Specialist

Launch Highlights

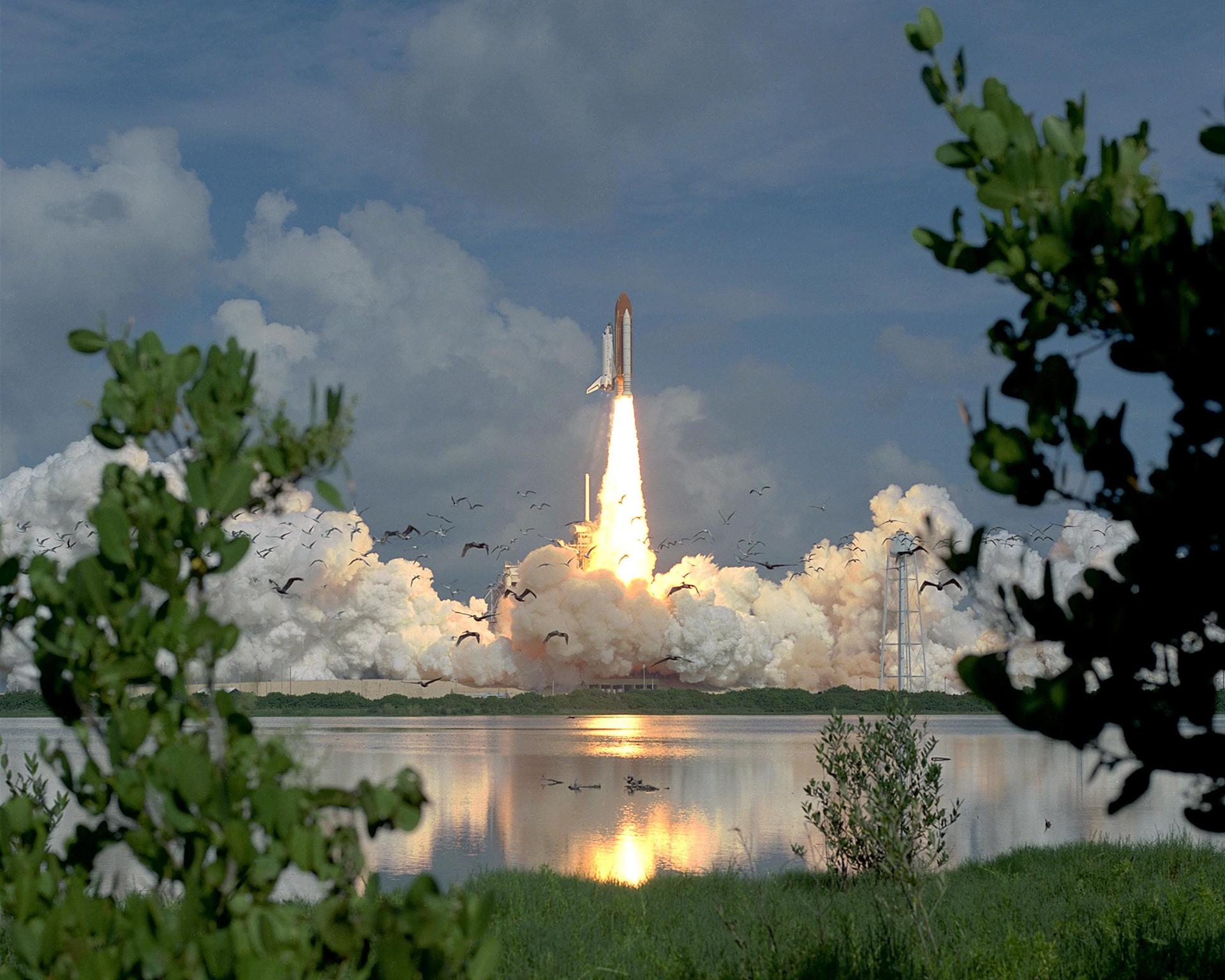

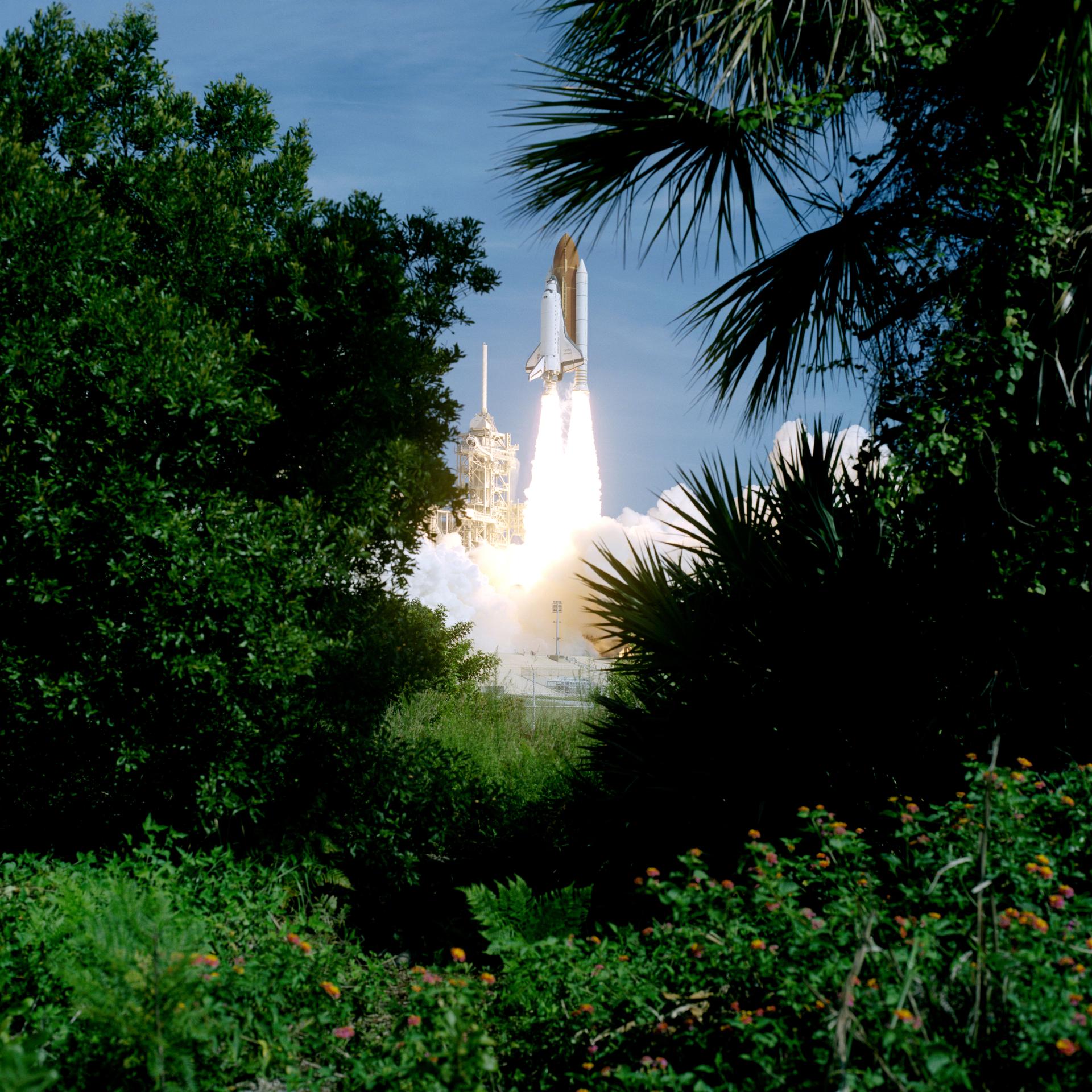

Liftoff was first targeted for June 22, after STS-71 Shuttle-Mir docking mission scheduled earlier same month. However, due to Russian space program scheduling delays affecting STS-71, mission managers opted to flip-flop 70 and 71 launch dates, and accelerated processing flow to ready Discovery and her payloads for liftoff no earlier than June 8, with Atlantis to follow on STS-71 later in June. This schedule thrown off following extended Memorial Day holiday weekend, when Northern Flicker Woodpeckers at Pad 39B poked about 200 holes in foam insulation of Discovery’s external tank. Attempts to repair damage at the pad were unsuccessful, and shuttle stack returned to VAB on June 8, with new launch date set for July 13. Holes ranged in size from large excavations about four inches (10 centimeters) to single pecks and claw marks. Countdown to July 13 liftoff proceeded smoothly; brief 55-second hold at T-31 seconds occurred when engineers had to verify signal from range safety system was being properly received by destruct device on external tank. Interval between landing of STS-71 on July 7 and launch of STS-70 six days later on July 13 marked quickest turnaround to date between shuttle missions. Post-landing inspections of STS-70 boosters showed gas path in right-hand solid rocket motor nozzle internal joint number 3, extending from the motor chamber to, but not past, the primary O-ring. STS-70 gas path similar to what was seen in nozzle joint number 3 post-flight on previous mission, STS-71. Gas paths or small air pockets are result of nozzle fabrication involving backfilling of the joint with insulation material. Similar paths had been expected and observed following previous flights, but Missions STS-71 and STS-70 marked first time slight heat effect was noted on the primary O-ring.

Mission Highlights

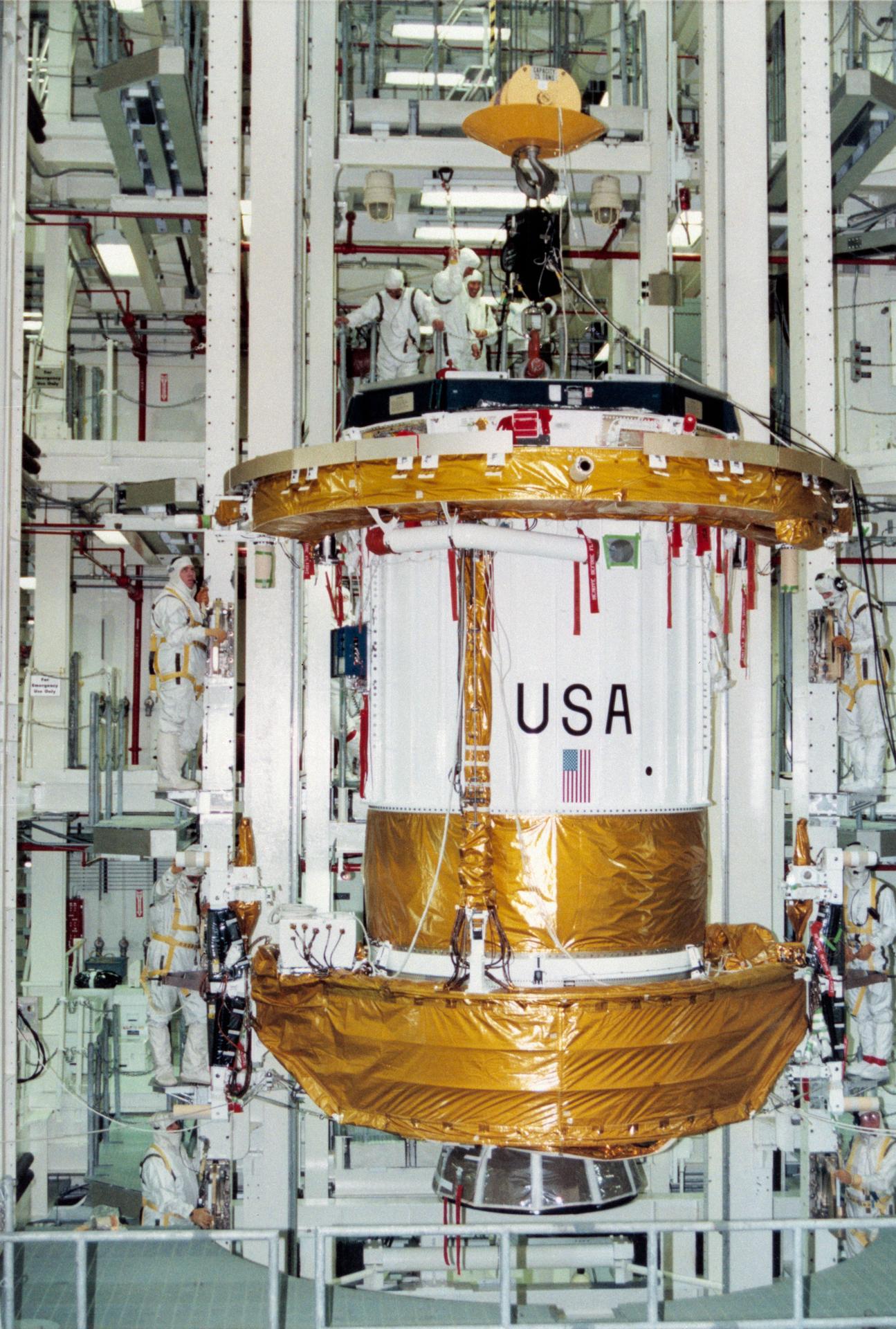

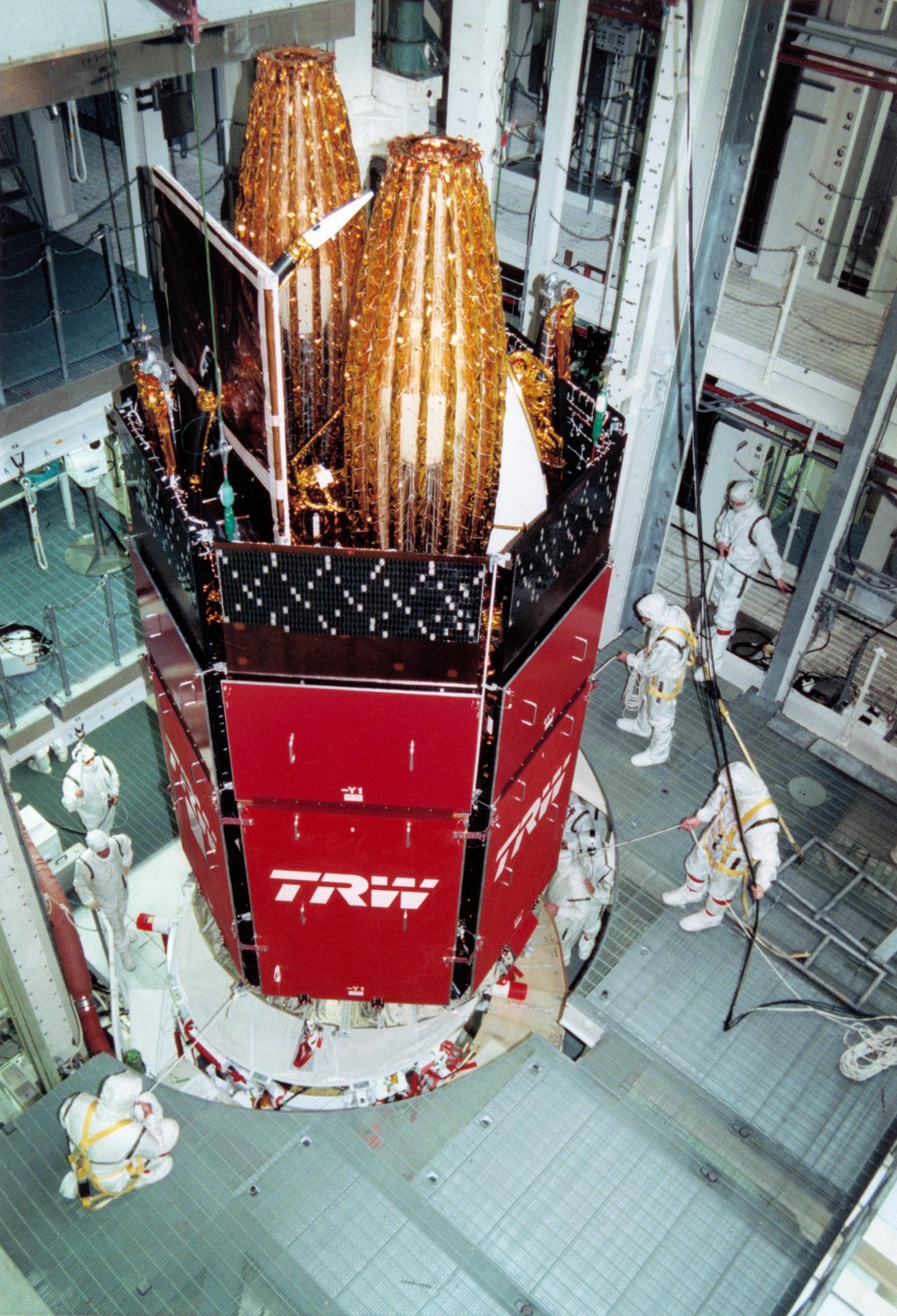

Primary objective of the mission accomplished when Tracking and Data Relay Satellite-G deployed from orbiter payload bay about six hours after liftoff. Approximately one hour after deployment, Inertial Upper Stage (IUS) booster attached to TDRS-G completed first of two scheduled burns to place TDRS-G in geosynchronous orbit. Once it completes on-orbit checkout, TDRS-G will become operational spare, completing existing TDRS network of advanced tracking and communications satellites.

During remainder of mission, five crew members completed variety of experiments. Biological Research in Canister (BRIC) experiments study effects of microgravity on wide range of physiological processes in plants, insects and small invertebrate animals. BRIC-4 examined how hormone system and muscle formation of tobacco hornworm affected by microgravity; BRIC-5 tested whether cell division changes in daylily are due to microgravity or other causes. Also, Bioreactor Development System (BDS), composed of device developed at Johnson Space Center, used colon cancer cells to test bioreactor performance in microgravity; this experiment worked extremely well, yielding tissue cultures better than any seen previously.

National Institutes of Health-R-2 featured suite of experiments examining how microgravity affects different aspects of rodent pre- and post-natal development.

Commercial Protein Crystal Growth (CPCG) experiment featured Protein Crystallization Facility (PCF) on its eighth flight. Five of these flights have yielded space-grown protein crystals of superior X-ray quality. Human insulin crystals grown on SPACEHAB 1 and 2 missions yielded most detailed analysis ever made of this protein, which is key medication used to treat diabetes. Industry now using this structural information to develop new and improved time-release insulin formulation. On STS-70, crystals of alpha interferon protein—used to treat human viral hepatitis B and C — were grown.

Other experiments: Space Tissue Loss-B (STL-B), studying effect of microgravity on embryogenesis; and Hand-Held, Earth-Oriented, Cooperative, Real-Time, User-Friendly, Location Targeting and Environmental System (HERCULES), a space-based geolocating system that features video camera and electronic still camera to document locations on Earth and tag every frame with latitude and longitude to within three nautical miles. Crew had difficulty at first aligning HERCULES camera, but eventually obtained 95% of planned photographic targets.

Also, Microencapsulation in Space-B (MIS-B), making its second flight aboard the Shuttle. MIS-B designed to produce better microencapsulated antibiotic; this type of antibiotic has proven extremely effective in treating wound infections, as it releases antibiotic at precise and predictable rate to cure infection. First flight of MIS-B yielded purer microcapsules than could be obtained on Earth, but only a small quantity was produced. Researchers hoped second flight of MIS-B on STS-70 would yield greater quantity of antibiotic.

Midcourse Space Experiment (MSX) required no onboard hardware; military MSX satellite used Shuttle during mission as tracking and calibration target. Military Applications of Ship Tracks (MAST) required crew to photograph ship tracks as part of effort to determine how pollutants generated by ships modify reflective properties of clouds. Radiation Monitoring Equipment-III (RME-III) is prototype dosimeter instrument which has been flying on shuttle since STS-31, and measures exposure to ionizing radiation on shuttle; data from RME-III is archived and used to update and refine models of space radiation environment in low-Earth orbit.

Objective of Window Experiment (WINDEX), another military experiment, is to gain understanding of chemistry and dynamics of low Earth orbit by collecting variety of data about such phenomena as shuttle thruster plumes, water dumps and atmospheric nightglow.

Visual Function Tester-4 (VFT-4) designed to gain better understanding of whether astronauts’ vision is affected by microgravity. VFT-4 instrument measures eyesight at near- and close range to test theories on what happens to human eye in space. Astronauts since Gemini days in early ’60s have noticed that in space it takes longer to adjust and focus on near objects, and STS-70 crew confirmed this observation.

Crew also spoke with ground radio operators as part of Shuttle Amateur Radio Experiment (SAREX), counting around 50 contacts a day for several days of flight.

No significant problems were experienced with the orbiter. STS-70 marked first flight of new Block I main engine featuring new high-pressure liquid oxidizer turbopump built by Pratt & Whitney. Engine 2036 flew in number one position; other two main engines were of existing Phase II design.
