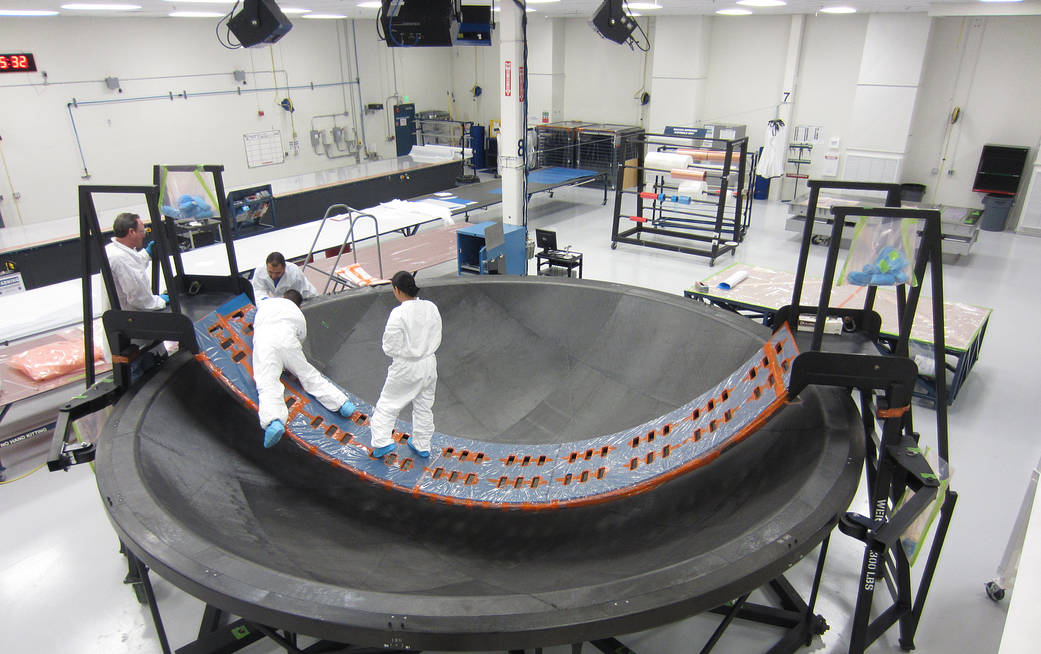

Technicians from Janicki Industries in Hamilton, Washington, position the layers of the diaphragm for the Orion stage adapter. The adapter will join the Orion spacecraft to the interim cryogenic propulsion stage (ICPS) of the Space Launch System, NASA’s new rocket for the journey to Mars. The ICPS is a liquid oxygen/liquid hydrogen-based system that will give Orion the in-space push needed to fly beyond the moon before it returns to Earth on the first flight of SLS in 2018. The adapter diaphragm is used to keep launch vehicle gases away from the spacecraft.
The diaphragm is constructed of multiple layers of carbon fiber fabric material engrained with epoxy. The layers are pieced together and carefully positioned in place using laser projectors to outline where they need to go. Janicki finished laying the final piece in late October. The diaphragm work is being done in collaboration with NASA’s Langley Research Center in Hampton, Virginia, and NASA’s Marshall Space Flight Center in Huntsville, Alabama.
