sUAS – Johnson Space Center

The headshot image of Bill Keeter

Bill Keeter

May 06, 2020
Article

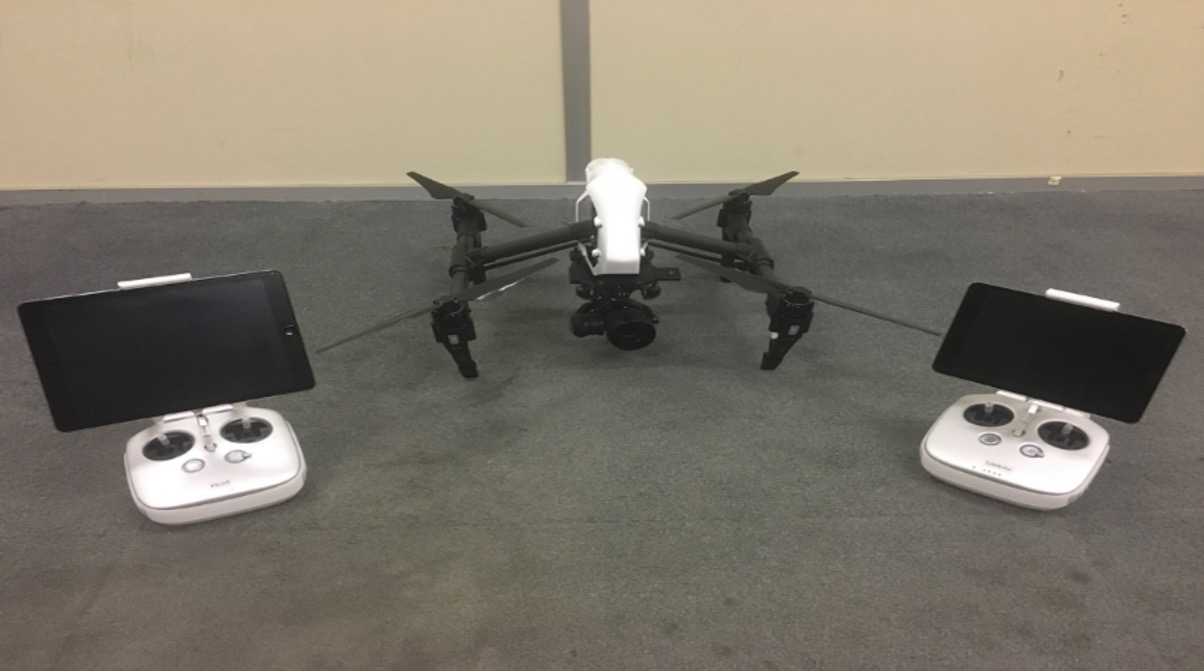

dji inspire 1raw
  • Make and Model: DJI Inspire 1Raw
  • Quantity: 1
  • Manufacturer Link: https://www.dji.com/spreading-wings-s1000/spec
  • UAS Capabilities: Pilot Training/ Aerial Imaging
  • Max TOW (kg): 7
  • Max Payload (kg): N/A
  • Max Speed (m/s): 18
  • Endurance (hrs): 0.3
  • Range (NM): 2
  • Command and Control: VLOS 2 user operation
  • Payloads Available: Hi res camera with gimbal
  • System POC: Bryan Coleman

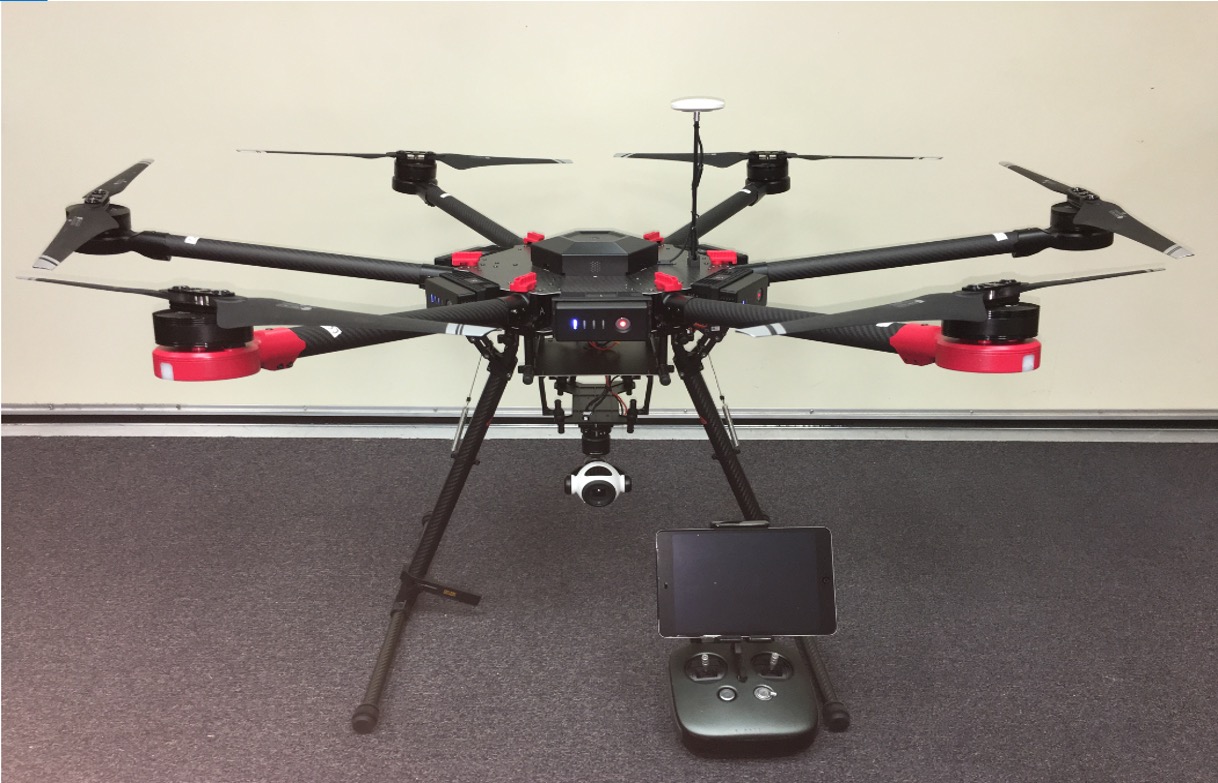

dji m600
  • Make and Model: DJI M600
  • Quantity: 1
  • Manufacturer Link: https://www.dji.com/matrice600-pro/info#specs
  • UAS Capabilities: Camera System
  • Max TOW (kg): 15.5
  • Max Payload (kg): 7
  • Max Speed (m/s): 8
  • Endurance (hrs): 0.5
  • Range (NM): 3
  • Command and Control: VLOS single user operation
  • Payloads Available: Hi res camera with gimbal, diverse payload capabilities
  • System POC: Bryan Coleman

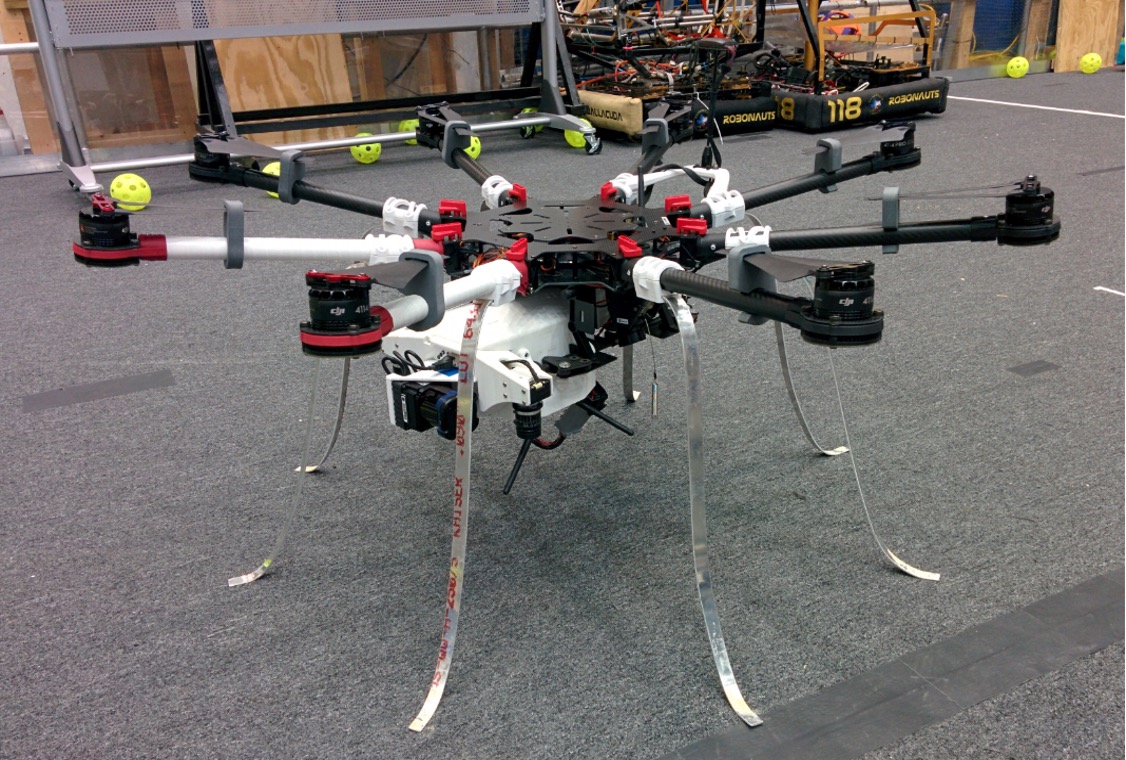

dji s1000
  • Make and Model: DJI S1000+
  • Quantity: 1
  • Manufacturer Link: https://www.dji.com/spreading-wings-s1000/spec
  • UAS Capabilities: Diverse payload capability
  • Max TOW (kg): 15.5
  • Max Payload (kg): 6
  • Max Speed (m/s): 8
  • Endurance (hrs): 0.5
  • Range (NM): 3
  • Command and Control:  VLOS single user operation
  • Payloads Available: Sensor and software test, LIDAR
  • System POC: Shaun Azimi

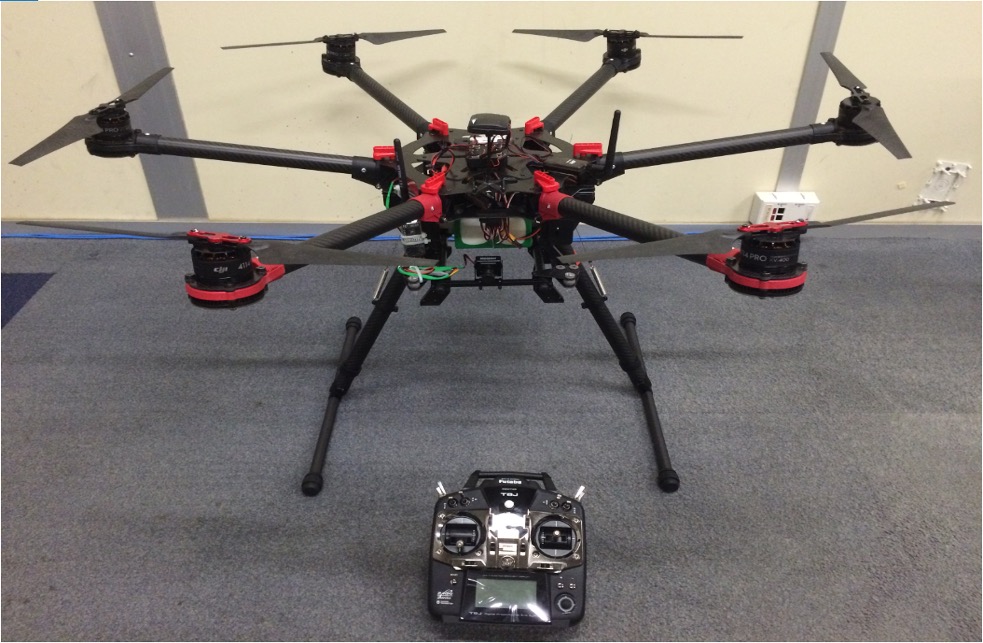

dji spreading wings s900
  • Make and Model: DJI Spreading Wings S900
  • Quantity: 2
  • Manufacturer Link: https://www.dji.com/spreading-wings-s900/info#specs
  • UAS Capabilities: Pilot training /Research payloads
  • Max TOW (kg): 8.2
  • Max Payload (kg): 4.9
  • Max Speed (m/s): 16
  • Endurance (hrs): 0.3
  • Range (NM): 1–2
  • Command and Control: VLOS single user operation, GCS
  • Payloads Available: FPV Camera
  • System POC: Bryan Coleman

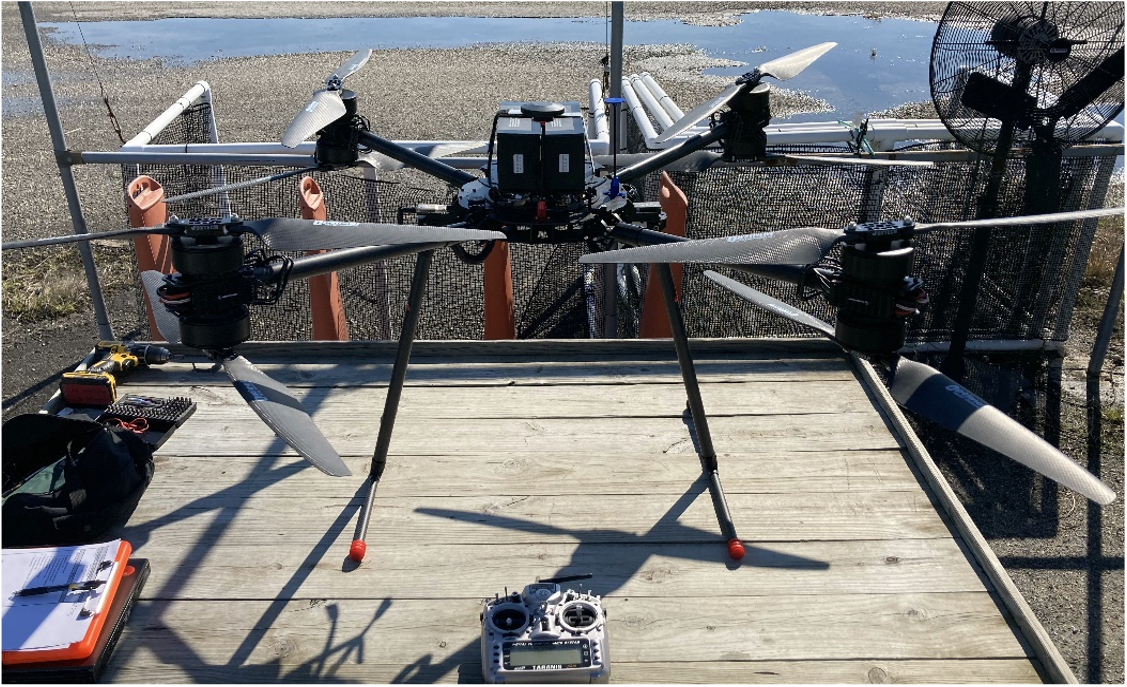

Photo of the Foxtech D130 X8 V2 drone
  • Make and Model: Foxtech D130 X8 V2
  • Quantity: 1
  • Manufacturer Link: https://www.foxtechfpv.com/d130-x8-v2-frame-p-1293.html
  • UAS Capabilities: Pilot training/Research payloads
  • Max TOW (kg): 24.0
  • Max Payload (kg): 7.1
  • Max Speed (m/s): 25
  • Endurance (hrs): 0.5
  • Range (NM): 24.3
  • Command and Control:  VLOS single user operation
  • Payloads Available: Sensor and software test, LIDAR, machine vision camera
  • System POC: Shaun Azimi
