Webb Study Reveals Rocky Planets Can Form in Extreme Environments

The image is dominated by a dusty disk extending from upper left to lower right and tilted toward the viewer. It resembles patchy clouds with small rocky bits scattered throughout. At 4 o’clock and 11 o’clock are two small, embedded planets. The outer edges of the disk are reddish, the middle orange, and the inner region yellow-white. At the center is a gap within which is a bright white star.

An international team of astronomers has used NASA’s James Webb Space Telescope to provide the first observation of water and other molecules in the highly irradiated inner, rocky-planet-forming regions of a disk in one of the most extreme environments in our galaxy. These results suggest that the conditions for terrestrial planet formation can occur in a possible broader range of environments than previously thought.

Image: Protoplanetary Disk (Artist Concept)

The image is dominated by a dusty disk extending from upper left to lower right and tilted toward the viewer. It resembles patchy clouds with small rocky bits scattered throughout. At 4 o’clock and 11 o’clock are two small, embedded planets. The outer edges of the disk are reddish, the middle orange, and the inner region yellow-white. At the center is a gap within which is a bright white star.
This is an artist’s impression of a young star surrounded by a protoplanetary disk in which planets are forming.
ESO/L. Calçada

These are the first results from the eXtreme Ultraviolet Environments (XUE) James Webb Space Telescope program, which focuses on the characterization of planet-forming disks (vast, spinning clouds of gas, dust, and chunks of rock where planets form and evolve) in massive star-forming regions. These regions are likely representative of the environment in which most planetary systems formed. Understanding the impact of environment on planet formation is important for scientists to gain insights into the diversity of the different types of exoplanets.

The XUE program targets a total of 15 disks in three areas of the Lobster Nebula (also known as NGC 6357), a large emission nebula roughly 5,500 light-years away from Earth in the constellation Scorpius. The Lobster Nebula is one of the youngest and closest massive star-formation complexes, and is host to some of the most massive stars in our galaxy. Massive stars are hotter, and therefore emit more ultraviolet (UV) radiation. This can disperse the gas, making the expected disk lifetime as short as a million years. Thanks to Webb, astronomers can now study the effect of UV radiation on the inner rocky-planet forming regions of protoplanetary disks around stars like our Sun.

“Webb is the only telescope with the spatial resolution and sensitivity to study planet-forming disks in massive star-forming regions,” said team lead María Claudia Ramírez-Tannus of the Max Planck Institute for Astronomy in Germany.

Astronomers aim to characterize the physical properties and chemical composition of the rocky-planet-forming regions of disks in the Lobster Nebula using the Medium Resolution Spectrometer on Webb’s Mid-Infrared Instrument (MIRI). This first result focuses on the protoplanetary disk termed XUE 1, which is located in the star cluster Pismis 24.

“Only the MIRI wavelength range and spectral resolution allow us to probe the molecular inventory and physical conditions of the warm gas and dust where rocky planets form,” added team member Arjan Bik of Stockholm University in Sweden.

Image: XUE 1 spectrum detects water

Graphic titled “XUE 1 Irradiated Protoplanetary Disk, MIRI Medium -Resolution Spectroscopy” shows a graph of brightness versus wavelength from 13.3 to 15.5 microns, with acetylene, hydrogen cyanide, water, and carbon dioxide peaks highlighted.
This spectrum shows data from the protoplanetary disk termed XUE 1, which is located in the star cluster Pismis 24. The inner disk around XUE 1 revealed signatures of water (highlighted here in blue), as well as acetylene (C2H2, green), hydrogen cyanide (HCN, brown), and carbon dioxide (CO2, red). As indicated, some of the emission detected was weaker than some of the predicted models, which might imply a small outer disk radius.
NASA, ESA, CSA, M. Ramírez-Tannus (Max Planck Institute for Astronomy), J. Olmsted (STScI)

Due to its location near several massive stars in NGC 6357, scientists expect XUE 1 to have been constantly exposed to high amounts of ultraviolet radiation throughout its life. However, in this extreme environment the team still detected a range of molecules that are the building blocks for rocky planets.

“We find that the inner disk around XUE 1 is remarkably similar to those in nearby star-forming regions,” said team member Rens Waters of Radboud University in the Netherlands. “We’ve detected water and other molecules like carbon monoxide, carbon dioxide, hydrogen cyanide, and acetylene. However, the emission found was weaker than some models predicted. This might imply a small outer disk radius.”

“We were surprised and excited because this is the first time that these molecules have been detected under these extreme conditions,” added Lars Cuijpers of Radboud University. The team also found small, partially crystalline silicate dust at the disk’s surface. This is considered to be the building blocks of rocky planets.

These results are good news for rocky planet formation, as the science team finds that the conditions in the inner disk resemble those found in the well-studied disks located in nearby star-forming regions, where only low-mass stars form. This suggests that rocky planets can form in a much broader range of environments than previously believed.

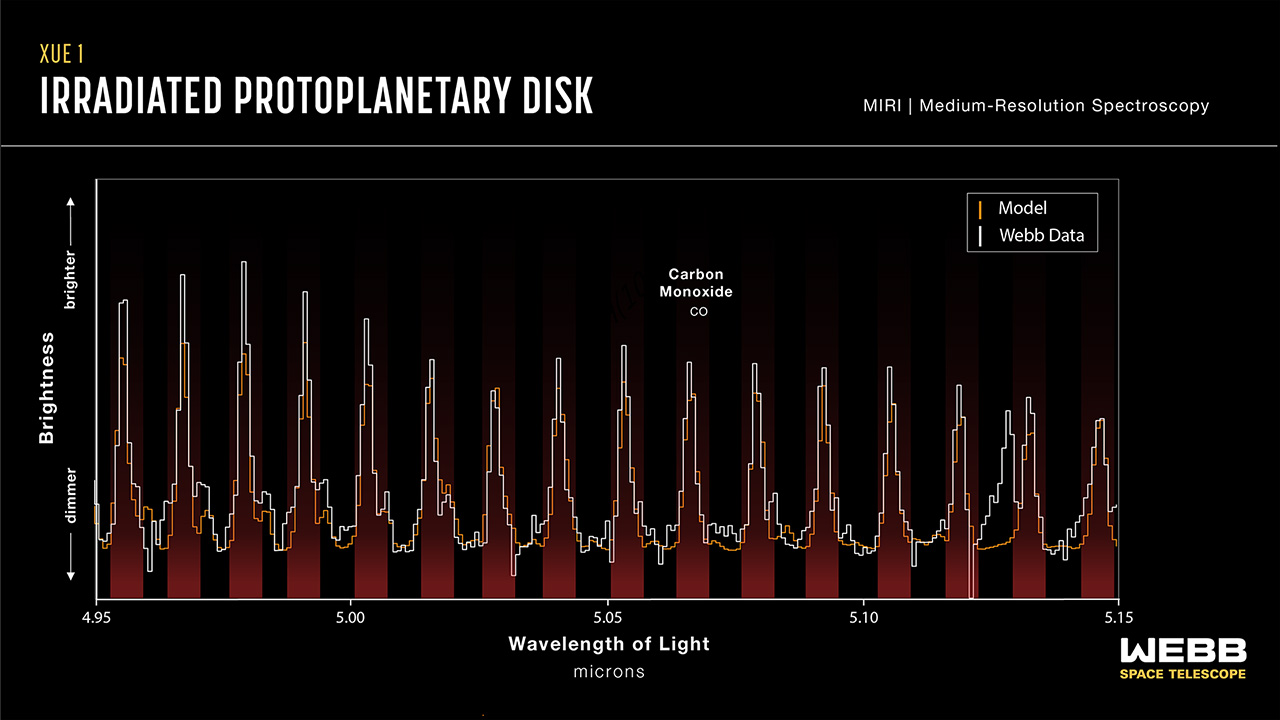

Image: XUE 1 Spectrum detects CO

Graphic titled “XUE 1 Irradiated Protoplanetary Disk, MIRI Medium -Resolution Spectroscopy” shows a graph of brightness versus wavelength from 4.95 to 5.15 microns, with carbon monoxide peaks highlighted.
This spectrum shows data from the protoplanetary disk termed XUE 1, which is located in the star cluster Pismis 24. It features the observed signatures of carbon monoxide spanning 4.95 to 5.15 microns.
NASA, ESA, CSA, M. Ramírez-Tannus (Max Planck Institute for Astronomy), J. Olmsted (STScI)

The team notes that the remaining observations from the XUE program are crucial to establish the commonality of these conditions.

“XUE 1 shows us that the conditions to form rocky planets are there, so the next step is to check how common that is,” said Ramírez-Tannus. “We will observe other disks in the same region to determine the frequency with which these conditions can be observed.”

These results have been published in The Astrophysical Journal.

The James Webb Space Telescope is the world’s premier space science observatory. Webb is solving mysteries in our solar system, looking beyond to distant worlds around other stars, and probing the mysterious structures and origins of our universe and our place in it. Webb is an international program led by NASA with its partners, ESA (European Space Agency) and the Canadian Space Agency.
