What Is an Orbit? (Grades 5-8)

This article is for students grades 5-8.

An orbit is a regular, repeating path that one object in space takes around another one. An object in an orbit is called a satellite. A satellite can be natural, like Earth or the moon. Many planets have moons that orbit them. A satellite can also be man-made, like the International Space Station.

Planets, comets, asteroids and other objects in the solar system orbit the sun. Most of the objects orbiting the sun move along or close to an imaginary flat surface. This imaginary surface is called the ecliptic plane.

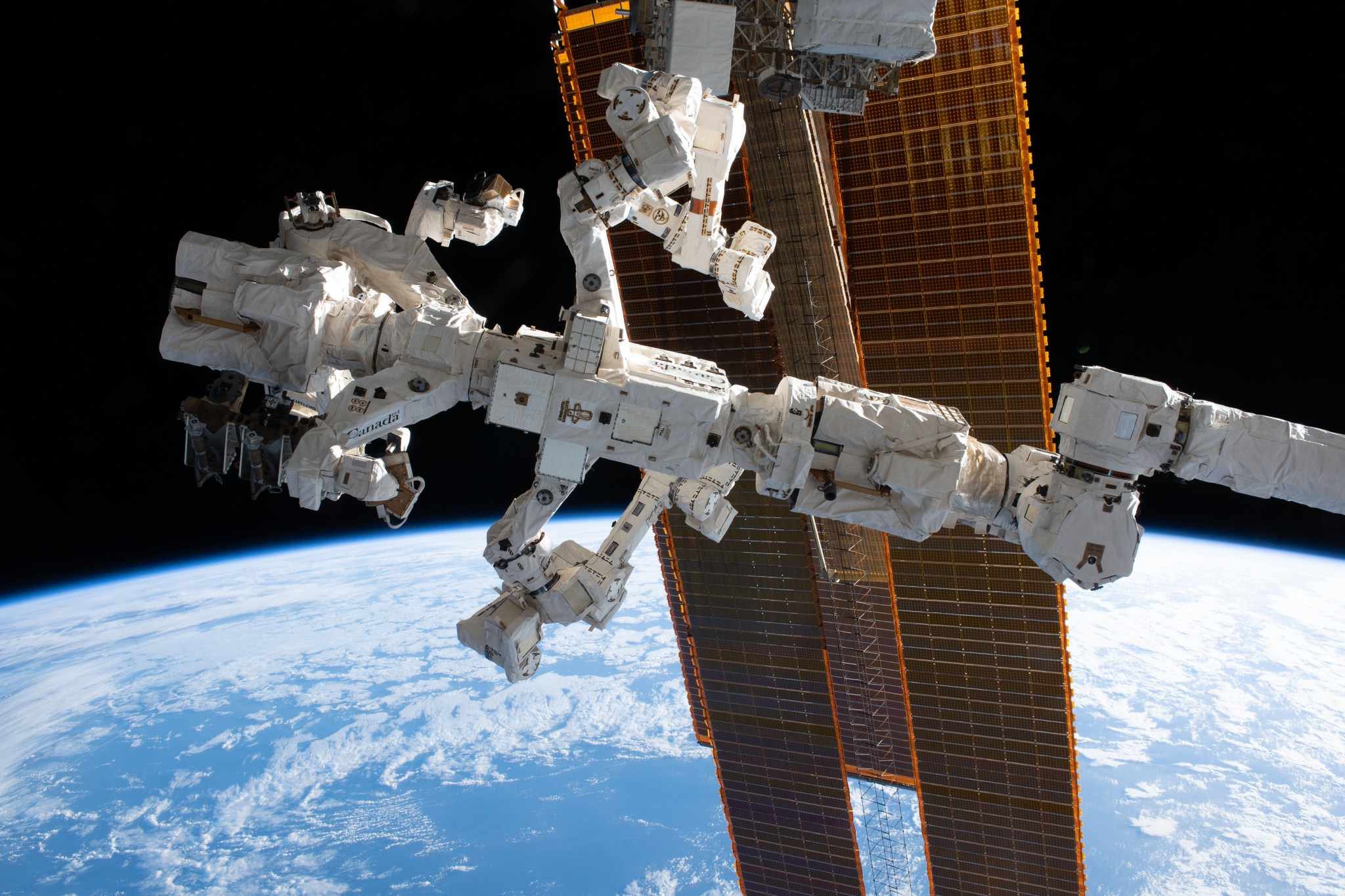

The Special Purpose Dexterous Manipulator (also known as Dextre), a fine-tuned robotic hand designed and built by the Canadian Space Agency, is pictured in front of the International Space Station's main solar arrays as the orbital complex soared 260 miles above the Pacific Ocean. Dextre is attached to the leading end effector, or tip, of the Canadarm2 robotic arm.


Words to Know

ellipse: A flattened circle or oval.

orbital plane: An imaginary, gigantic flat plate containing an Earth satellite’s orbit. The orbital plane passes through the center of Earth.


What Shape Is an Orbit?

Orbits come in different shapes. All orbits are elliptical, which means they are an ellipse, similar to an oval. For the planets, the orbits are almost circular. The orbits of comets have a different shape. They are highly eccentric or “squashed.” They look more like thin ellipses than circles.

Satellites that orbit Earth, including the moon, do not always stay the same distance from Earth. Sometimes they are closer, and at other times they are farther away. The closest point a satellite comes to Earth is called its perigee. The farthest point is the apogee. For planets, the point in their orbit closest to the sun is perihelion. The farthest point is called aphelion. Earth reaches its aphelion during summer in the Northern Hemisphere. The time it takes a satellite to make one full orbit is called its period. For example, Earth has an orbital period of one year. The inclination is the angle the orbital plane makes when compared with Earth’s equator.

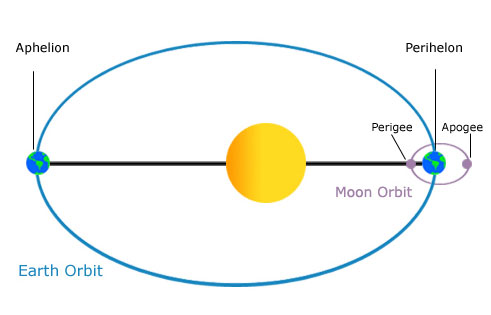

Diagram depicting Earth's oval orbit

How Do Objects Stay in Orbit?

An object in motion will stay in motion unless something pushes or pulls on it. This statement is called Newton’s first law of motion. Without gravity, an Earth-orbiting satellite would go off into space along a straight line. With gravity, it is pulled back toward Earth. A constant tug-of-war takes place between the satellite’s tendency to move in a straight line, or momentum, and the tug of gravity pulling the satellite back.

An object’s momentum and the force of gravity have to be balanced for an orbit to happen. If the forward momentum of one object is too great, it will speed past and not enter into orbit. If momentum is too small, the object will be pulled down and crash. When these forces are balanced, the object is always falling toward the planet, but because it’s moving sideways fast enough, it never hits the planet. Orbital velocity is the speed needed to stay in orbit. At an altitude of 150 miles (242 kilometers) above Earth, orbital velocity is about 17,000 miles per hour. Satellites that have higher orbits have slower orbital velocities.


Words to Know

momentum: The mass of an object multiplied by its velocity.

parallel: Extending in the same direction, everywhere equidistant, and not meeting.


Where Do Satellites Orbit Earth?

The International Space Station is in low Earth orbit, or LEO. LEO is the first 100 to 200 miles (161 to 322 km) of space. LEO is the easiest orbit to get to and stay in. One complete orbit in LEO takes about 90 minutes.

Satellites that stay above a location on Earth are in geosynchronous Earth orbit, or GEO. These satellites orbit about 23,000 miles (37,015 km) above the equator and complete one revolution around Earth precisely every 24 hours. Satellites headed for GEO first go to an elliptical orbit with an apogee about 37,015 km. Firing the rocket engines at apogee then makes the orbit round. Geosynchronous orbits are also called geostationary.

Artist's concept depicts NASA's Voyager 1 spacecraft entering interstellar space

Any satellite with an orbital path going over or near the poles maintains a polar orbit. Polar orbits are usually low Earth orbits. Eventually, Earth’s entire surface passes under a satellite in polar orbit. When a satellite orbits Earth, the path it takes makes an angle with the equator. This angle is called the inclination. A satellite that orbits parallel to the equator has a zero-degree orbital inclination. A satellite in a polar orbit has a 90-degree inclination.
