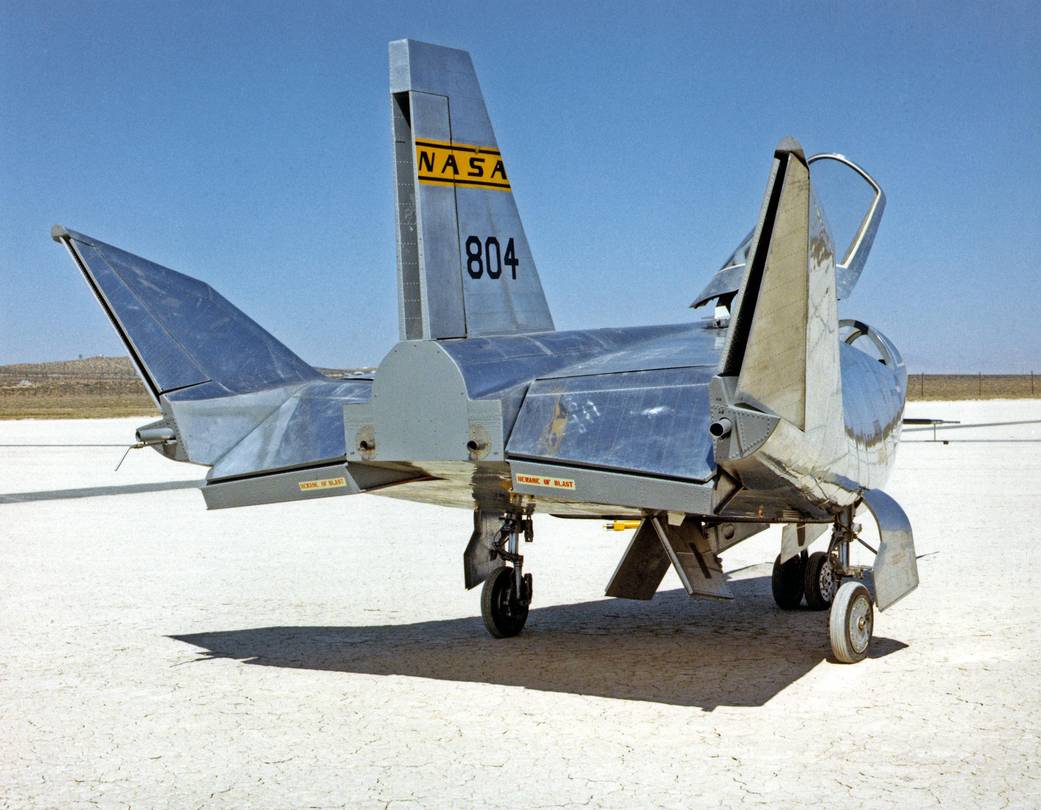

The HL-10 is shown on the lakebed with its subsonic control surface configuration. The unusual shapes of the lifting bodies, as well as the demands of flying a re-entry shape to comparative low-speed landings, required a complex set of control surfaces. The rudders also served as speed brakes, allowing the pilot to adjust his speed during descent. Moving the flaps at the rear of the fuselage in the same direction pitched the nose up, while moving them in opposite directions rolled the vehicle to the right or left. After the HL-10’s fins were modified to improve its handling qualities, the vehicle proved to be the best handling of the original heavy-weight lifting bodies.
The HL-10 was one of five heavyweight lifting-body designs flown at NASA’s Flight Research Center (FRC-later Dryden Flight Research Center), Edwards, Calif., from July 1966 to November 1975 to study and validate the concept of safely maneuvering and landing a low lift-over-drag vehicle designed for reentry from space.
Northrop Corporation built the HL-10 and M2-F2, the first two of the fleet of “heavy” lifting bodies flown by the NASA Flight Research Center. The contract for construction of the HL-10 and the M2-F2 was $1.8 million. “HL” stands for horizontal landing, and “10” refers to the tenth design studied by engineers at NASA’s Langley Research Center, Hampton, Va.
After delivery to NASA in January 1966, the HL-10 made its first flight on Dec. 22, 1966, with research pilot Bruce Peterson in the cockpit. Although an XLR-11 rocket engine was installed in the vehicle, the first 11 drop flights from the B-52 launch aircraft were powerless glide flights to assess handling qualities, stability, and control. In the end, the HL-10 was judged to be the best handling of the three original heavy-weight lifting bodies (M2-F2/F3, HL-10, X-24A).
The HL-10 was flown 37 times during the lifting body research program and logged the highest altitude and fastest speed in the Lifting Body program. On Feb. 18, 1970, Air Force test pilot Peter Hoag piloted the HL-10 to Mach 1.86 (1,228 mph). Nine days later, NASA pilot Bill Dana flew the vehicle to 90,030 feet, which became the highest altitude reached in the program.
Some new and different lessons were learned through the successful flight testing of the HL-10. These lessons, when combined with information from its sister ship, the M2-F2/F3, provided an excellent starting point for designers of future entry vehicles, including the Space Shuttle.September 15, 1966
