The Gimbal Rig Mercury Astronaut Trainer

The multiple-axis space test inertia facility, fondly called “the gimbal rig,” simulated tumble-type maneuvers that might be encountered in space flight.

Three tubular aluminum cages could revolve separately or in combination to give roll, pitch and yaw motions at speeds up to 30 revolutions per minute, greater than those expected in actual space flight. Nitrogen-gas jets, attached to the three cages, controlled the motion. NASA Lewis (now Glenn) engineers built the entire rig inside a test chamber in the research center’s old Altitude Wind Tunnel.

All Rigged Up

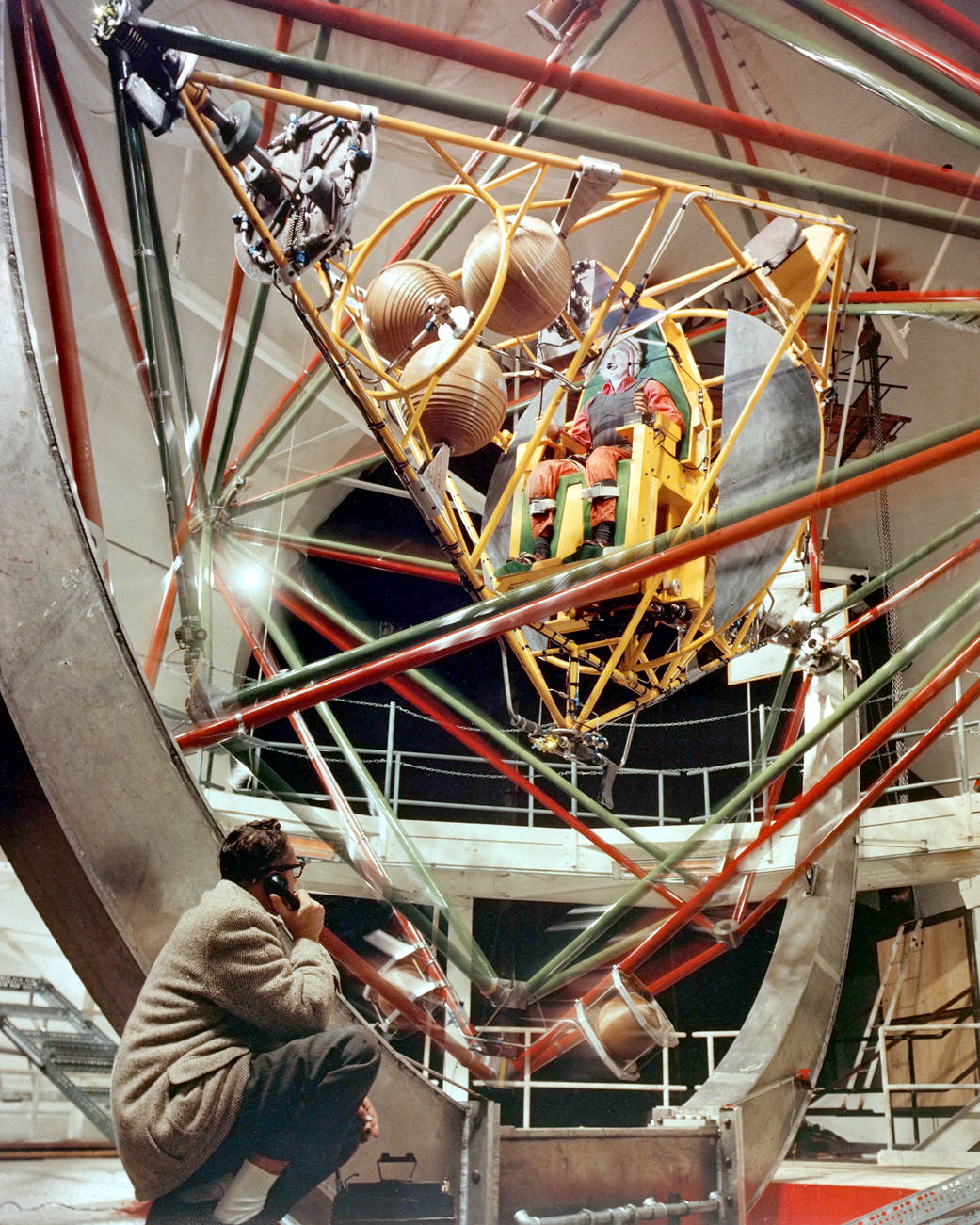

The photograph from 1959 shows the Project Mercury Altitude Wind Tunnel Gimbaling Rig. The Multiple Axis Space Test Inertia Facility, or MASTIF, was developed for Project Mercury to train astronauts in gaining control over a spacecraft that could move in multiple directions at once – pitching, rolling, and yawing all at the same time.

At the center of the innermost cage, the pilot was strapped into a plastic seat, similar to that in the Mercury capsule. His head, body and legs were held in place, leaving only his arms free. The pilot actuated the jets by means of a right-hand control column. Communication was by radio, which was operated by a button atop the left-hand column.

An operator at the control station started the complex tumbling motions, and then switched control to the pilot. By reading instruments mounted at eye level before him, the pilot interpreted his motions and made corrections accordingly. A movement of the column to the right or the left fired the nitrogen-gas jets on the roll cage. In a similar manner, forward or backward movement of the column fired the jets on the pitch cage, and twisting movements actuated jets on the yaw cage.

From February 15 through March 4, 1960, the gimbal rig provided valuable training for all seven Project Mercury astronauts. Each experienced about five hours of simulated flight time.

A woman flying a gimbal rig
Jerrie Cobb, one of the Mercury 13, takes a spin in the gimbal rig.

Later that year, the Mercury 13, a group of thirteen women who passed the physical tests given to candidate astronauts for the Mercury Project, also used the Gimbal Rig.

The rig also was used to evaluate instrument control systems for space flight and to test the physiological effects of spinning, such as eye oscillation and motion sickness.
