60 Years Ago: First Launch of a Saturn Rocket

In October 1961, as NASA celebrated its third anniversary, the agency could already look back on a series of significant accomplishments. It had established several new field centers around the country to help develop and implement the nation’s human spaceflight program. The first program, Project Mercury, had already flown two suborbital crewed missions and preparations were underway for the first orbital mission in early 1962. Five months earlier, President John F. Kennedy had committed the nation to landing a man on the Moon and returning him safely to the Earth, and NASA’s Project Apollo would accomplish that task. This endeavor required a family of new large rockets called Saturn, and on Oct. 27, 1961, the first Saturn rocket took off from its seaside launch pad in Florida.

saturn_1_first_launch_1_assembly_of_main_lox_tank_1960 saturn_1_first_launch_2_assembly_of_side_tank_1960

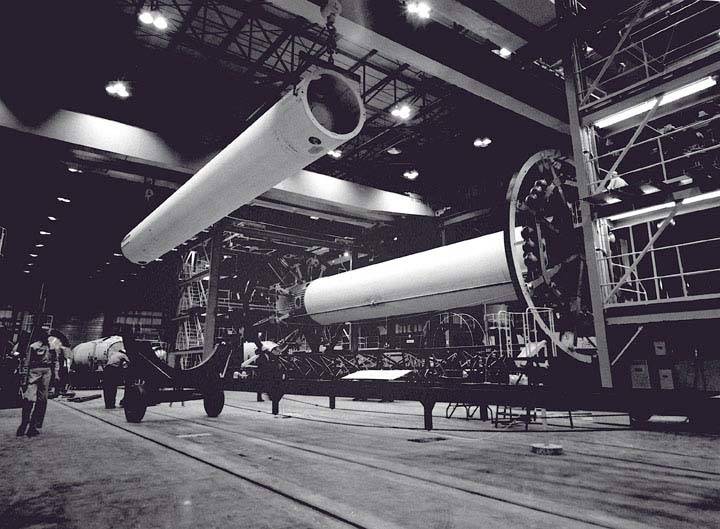

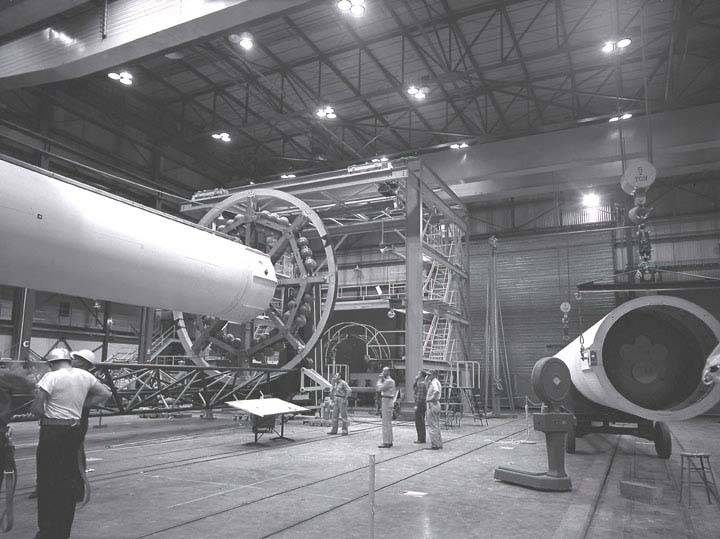

Left: The central liquid oxygen tank at left, during assembly of the first Saturn C-I booster stage in January 1960. Right: Workers lift one of the peripheral tanks to attach it to the central tank during assembly of the first Saturn C-I booster in 1960.

saturn_1_first_launch_3_structural_fabrication_of_sa-1_1960 saturn_1_first_launch_4_installation_of_h-1_engine_on_sa-1_1960

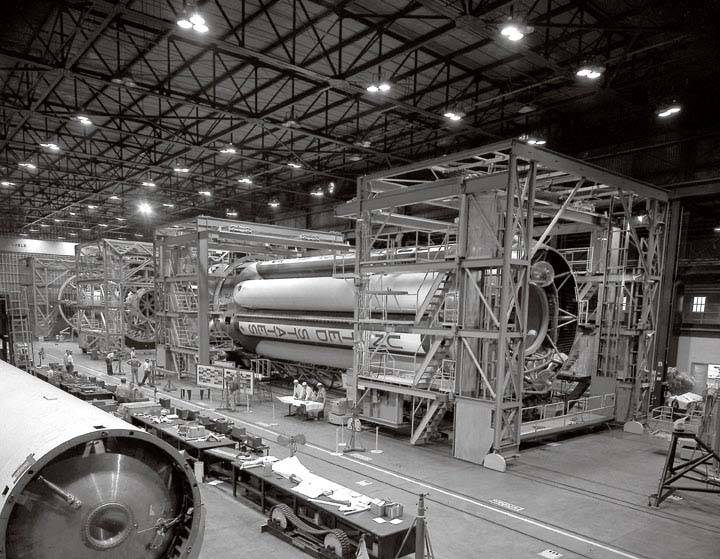

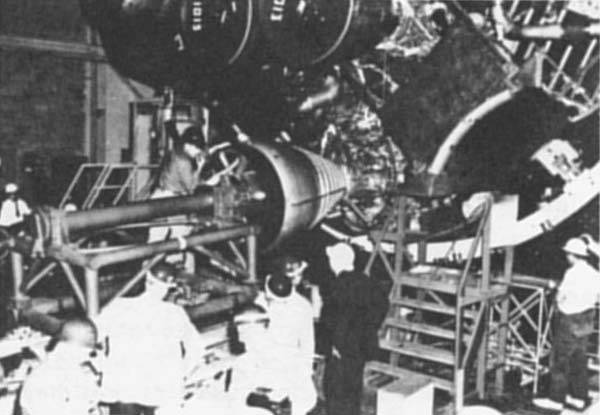

Left: The first Saturn C-I rocket’s booster stage during structural fabrication at NASA’s Marshall Space Flight Center (MSFC) in Huntsville, Alabama, in 1960. Right: Workers install an H-1 engine onto the first Saturn C-I booster at MSFC in 1960.

In 1957, while working with the Army Ballistic Missile Agency (ABMA) at the Redstone Arsenal in Huntsville, Alabama, Wernher von Braun and his team of engineers began studies to build a rocket with a then-unprecedented thrust of 1.5 million pounds. On Aug. 15, 1958, the Department of Defense’s Advanced Research Project Agency (ARPA) formally authorized the project, designating it as Saturn on Feb. 3, 1959. On Dec. 15, after studying various configurations, ARPA settled on the initial rocket called the Saturn C-I, simplified to Saturn I in February 1963. The booster stage consisted of a core liquid oxygen (LOX) tank derived from the Jupiter rocket surrounded by eight tanks modified from the Redstone missile, four containing RP-1 kerosene and four containing LOX, powering a cluster of eight H-1 engines, upgraded versions of powerplants used on Thor and Jupiter rockets. Use of legacy hardware minimized the retooling needed and lowered overall development costs.

saturn_1_first_launch_5_sa-t_first_stage_at_msfc_feb_28_1960 saturn_1_first_launch_6_sa-t_firing_jun_15_1960_msfc saturn_1_first_launch_7_von_braun_w_eisenhower_sep_8_1960

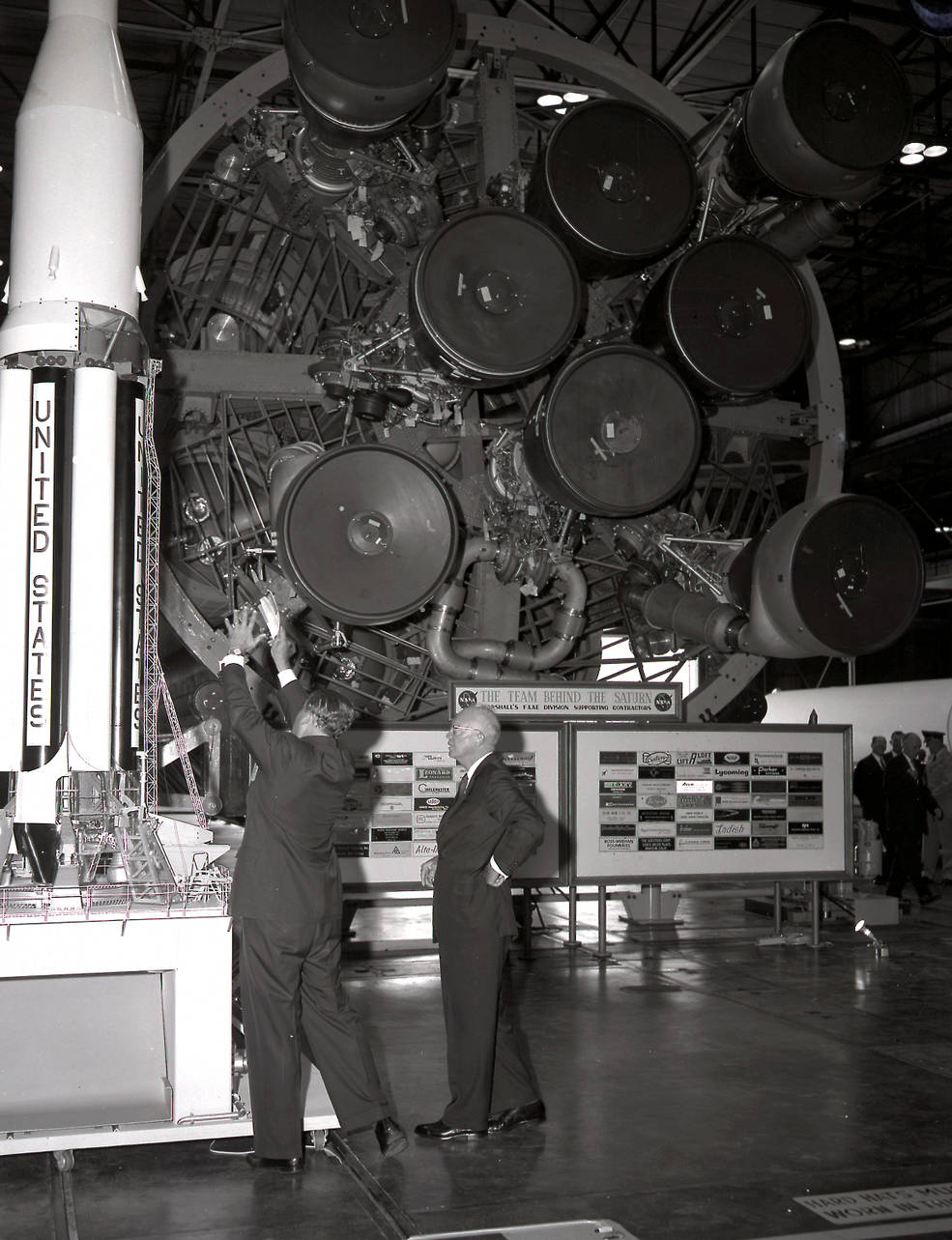

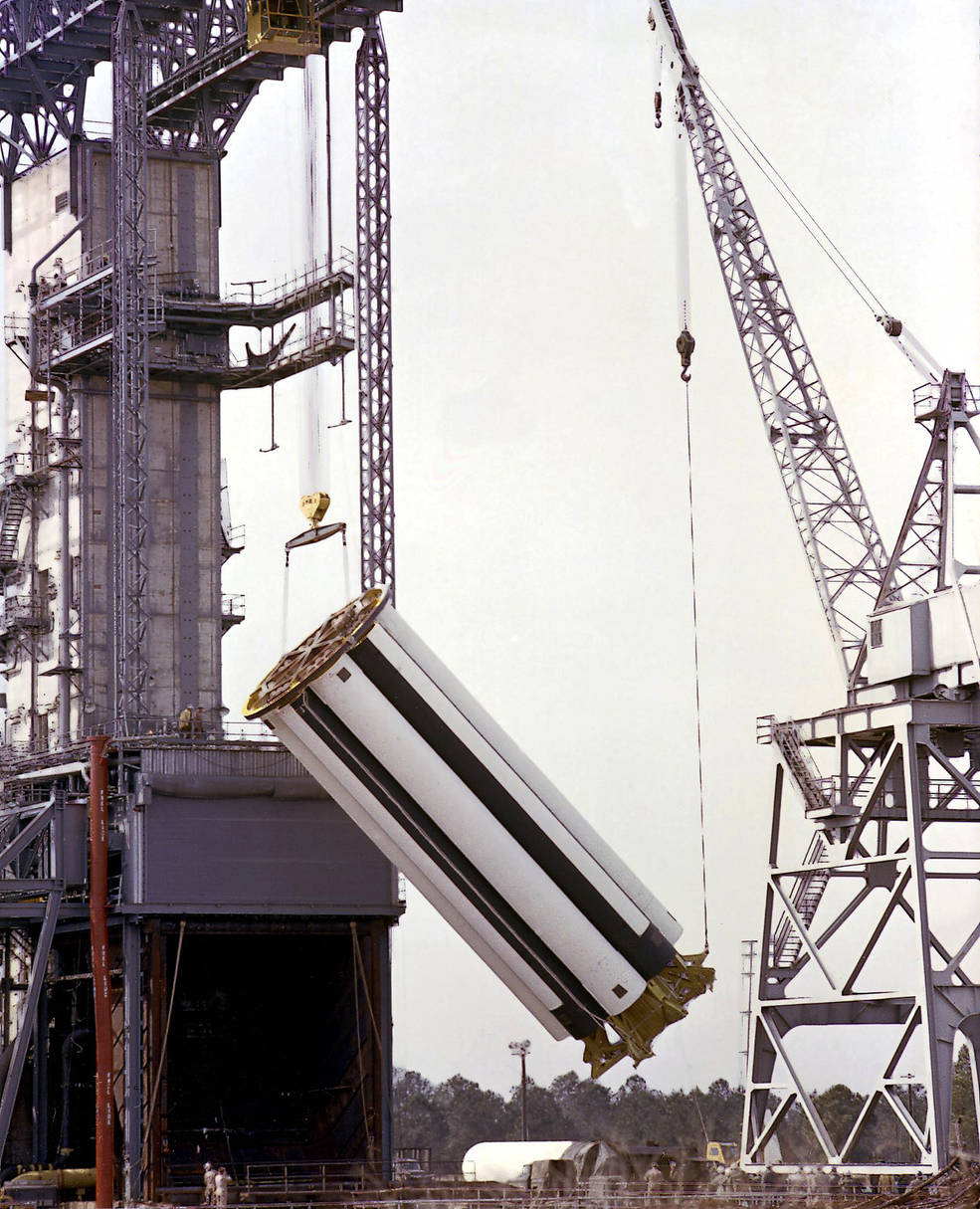

Left: Ground crews lift the Saturn C-I SA-T test stage onto a static stand at the Redstone Arsenal in Huntsville, Alabama, in February 1960. Middle: A test firing of the Saturn SA-T test stage at the Redstone Arsenal in June 1960. Right: At the formal dedication of NASA’s Marshall Space Flight Center in Huntsville, Alabama, Saturn C-I rocket designer Wernher von Braun, left, describes a model of his rocket to President Dwight D. Eisenhower.

A Saturn C-I first stage test vehicle, designated SA-T, was placed on a static stand at the Redstone Arsenal with the first firing on March 28, 1960, an eight-second test of two of the stage’s eight H-1 engines, with the first eight-engine test taking place on April 29. On July 1, 1960, management of the Saturn program was transferred to NASA’s newly-established George C. Marshall Space Flight Center (MSFC) on the site of the ABMA and Redstone Arsenal in Huntsville. A model of the Saturn C-I was on display during MSFC’s formal dedication ceremony, attended by President Dwight D. Eisenhower, on Sept. 8, 1960.

saturn_1_first_launch_8_checkout_of_sa-1_msfc_jan_1961 saturn_1_first_launch_9_first_horizontal_mating_msfc_feb_1961

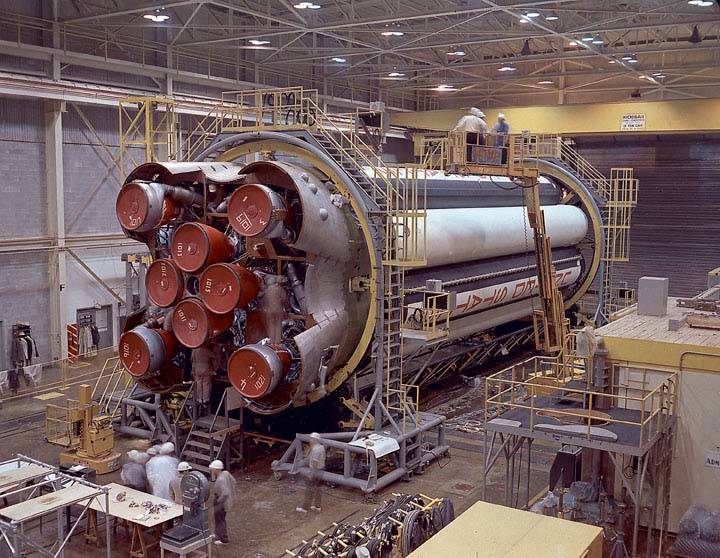

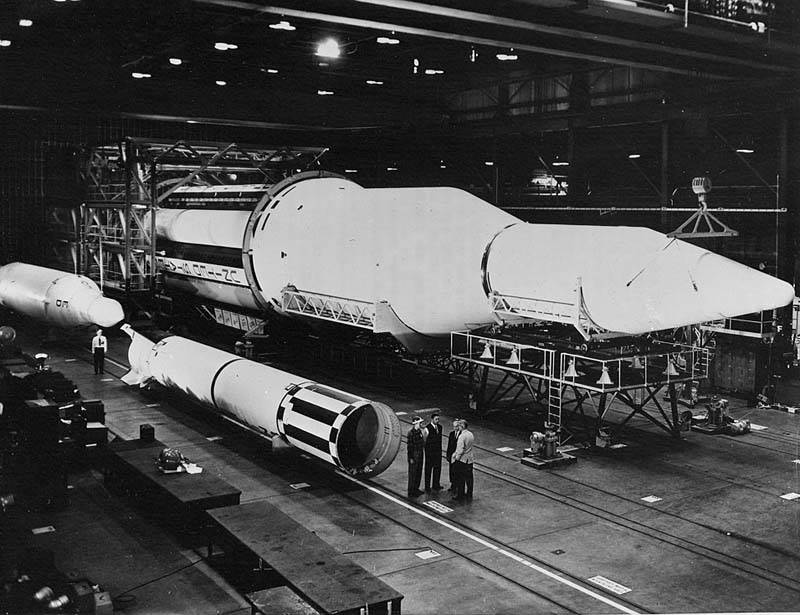

Left: Engineers check out the first Saturn C-I booster at NASA’s Marshall Space Flight Center (MSFC) in Huntsville, Alabama, in January 1961. Right: Horizontal mating of the first Saturn C-I rocket’s three stages at MSFC in February 1961.

Assembly of the booster for the first launch, designated SA-1, began at the Redstone Arsenal on May 26, 1960. Engineers there fabricated a dummy S-IV second stage in January 1961. A dummy S-V third stage arrived at the Arsenal in February 1961 from the Convair manufacturing plant in San Diego. The second and third stages were mated together, and the entire vehicle assembled horizontally in February 1961. On April 29, engineers test fired the SA-1 booster in the static test stand at MSFC, a 30-second firing of all eight H-1 engines.

saturn_1_first_launch_10_construction_of_lc-34_tower_and_pedestal_1960 saturn_1_first_launch_11_lc-34_construction_march_1961 saturn_1_first_launch_12_lc-34_jun_1961

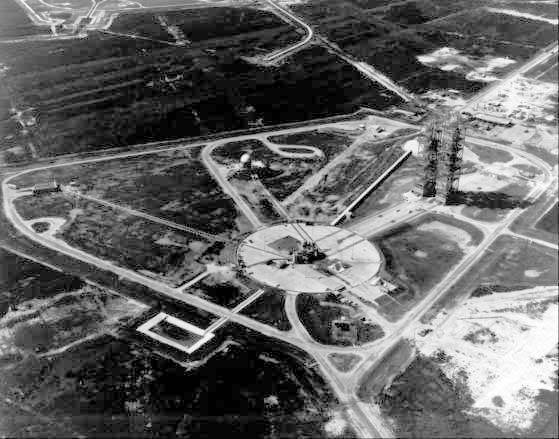

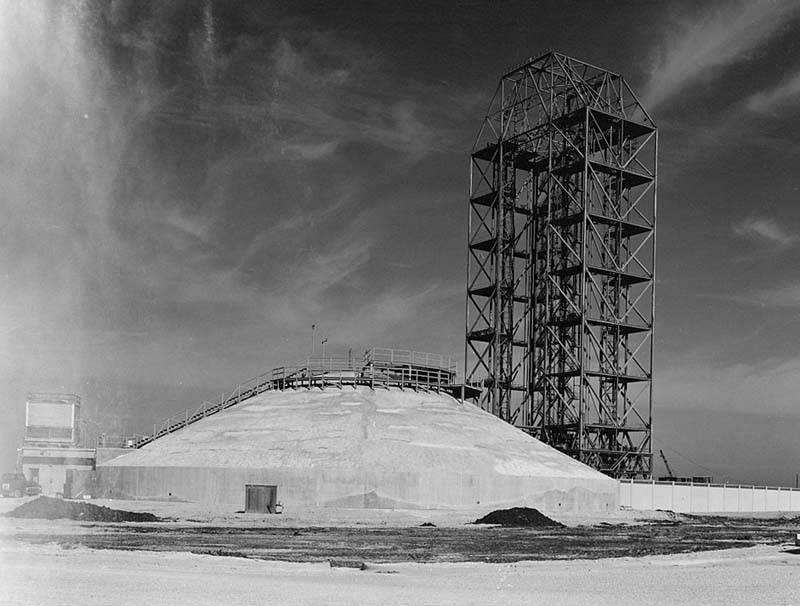

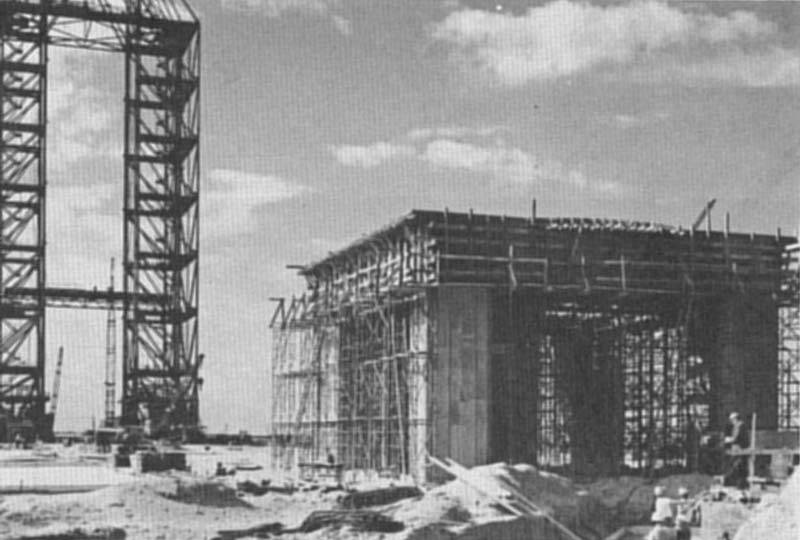

Left: Early construction of Launch Complex 34 at the Cape Canaveral Air Force Station, now the Cape Canaveral Space Force Station in Florida in 1960. Middle: The blockhouse, foreground, and the service structure at Launch Complex 34. Right: Aerial view of Launch Complex 34 in 1961.

To accommodate the large Saturn C-I rocket for preflight processing and launch, workers began construction of Launch Complex 34 at the Cape Canaveral Air Force Station (CCAFS), now the Cape Canaveral Space Force Station, in Florida, in June 1960. Following a small dedication ceremony on June 5, 1961, the facility was turned over to NASA.

saturn_1_first_launch_13_sa-1_first_stage_erection_lc-34_aug_20_1961 saturn_1_first_launch_14_sa-1_second_stage_erection_lc-34_aug_21_1961 saturn_1_first_launch_15_sa-1-at-launch-complex-34-27-october-1961

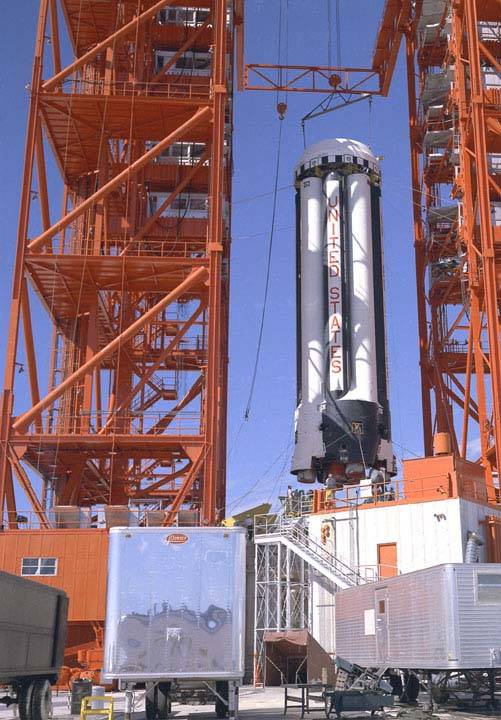

Left: Ground crews position the first Saturn C-I booster onto the pedestal at Launch Complex 34 at the Cape Canaveral Air Force Station, now the Cape Canaveral Space Force Station, in Florida. Middle: Ground crews lift the dummy second stage onto the first Saturn C-I booster at Launch Complex 34. Right: The fully assembled first Saturn C-I rocket on the pedestal at Launch Complex 34.

The dummy third stage arrived at CCAFS from MSFC by barge on April 30, 1961. The live first stage and dummy second stage arrived by barge on Aug. 15. Stacking of the SA-1 first stage at Launch Complex 34 took place on Aug. 20, 1961, with the addition of the dummy second and third stages and the nose cone the following day. The second and third stages were filled with 90,000 and 100,000 pounds of water, respectively, to serve as ballast during the flight. A first stage tank pressurization test was successfully completed on Sept. 6, clearing the way for the launch.

saturn_1_first_launch_16_sa-1_launch_oct_27_1961 saturn_1_first_launch_17_launch_and_ascent_oct_27_1961 saturn_1_first_launch_18_msc_space_news_roundup_article_nov_1_1961

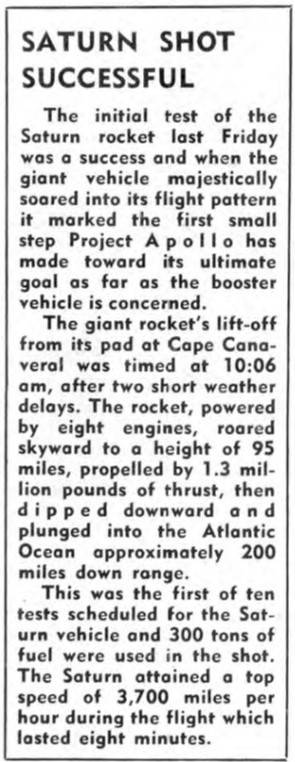

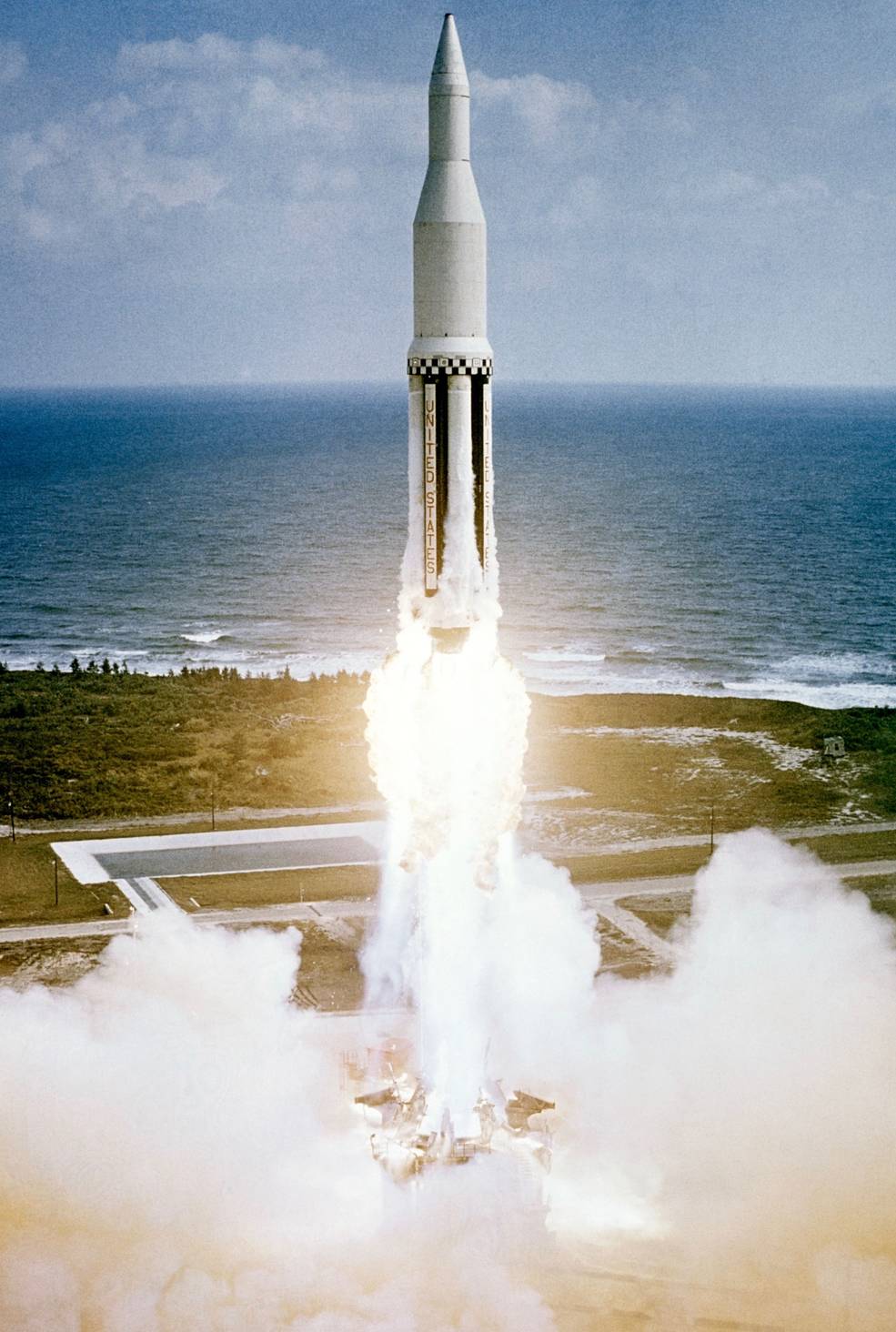

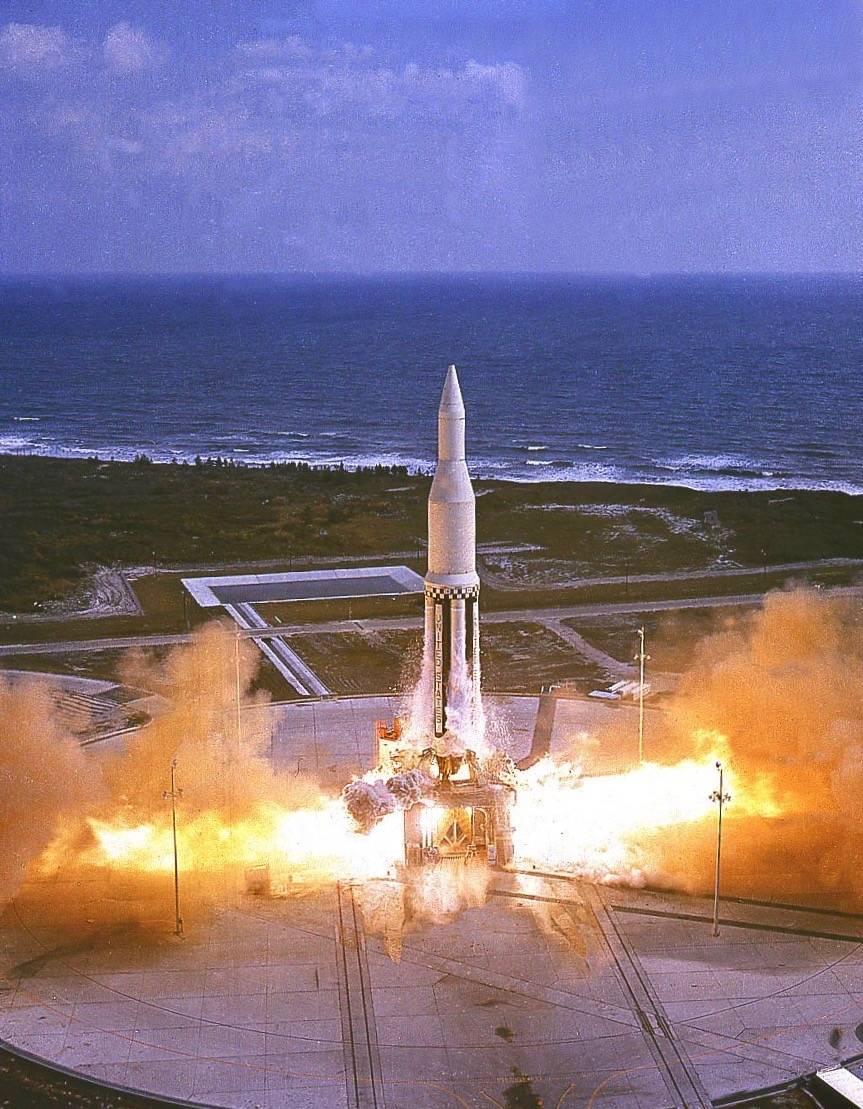

Left: Ignition of the first Saturn C-I booster’s eight H-1 engines at Launch Complex 34. Middle: The first Saturn C-I rocket lifts off on a pillar of flame. Right: An article about the first Saturn C-I launch in the Nov. 1, 1961, inaugural edition of the Space News Roundup, the newsletter of the Manned Spacecraft Center, now NASA’s Johnson Space Center in Houston.

The Saturn SA-1 vehicle, 162 feet high and weighing 460 tons, lifted off from Launch Complex 34 on Oct. 27, 1961. The booster stage produced the intended 1.3 million pounds of thrust — later versions of the rocket increased the thrust to 1.5 million pounds — lifting the rocket to an altitude of 85 miles. The four inboard engines shut down after 109 seconds of burning; the four outboard engines cut off six seconds later. At a maximum speed of approximately 3,600 miles per hour the Saturn followed a precalculated flight path to land within 13 miles of the predicted impact, over 214 miles from its launch site. The flight was considered essentially flawless. The Saturn SA-1 flight was the first of 32 successful Saturn rocket launches —10 Saturn Is, 9 Saturn IBs, and 13 Saturn Vs — between 1961 and 1973. To this day, the Saturn remains the only family of rockets to achieve a 100 percent success rate.
