50 Years Ago: Apollo 16 Launches to the Moon

The fifth Moon landing mission began with the April 16, 1972 launch of Apollo 16. The giant Saturn V rocket lifted off from Launch Pad 39A at NASA’s Kennedy Space Center (KSC) in Florida with Commander John W. Young, Command Module Pilot Thomas K. “Ken” Mattingly, and Lunar Module Pilot Charles M. Duke strapped inside their capsule. After their rocket delivered them into a parking orbit around the Earth, the third stage reignited to send them on their way to the Moon. Following an uneventful three-day coast to the Moon, Young, Mattingly, and Duke arrived in lunar orbit on April 19 to prepare for the landing in and exploration of the Descartes site and to conduct scientific observations from lunar orbit.

apollo_16_launch_crew_photo apollo_16_launch_patch
Left: The Apollo 16 crew of Thomas K. “Ken” Mattingly, left, John W. Young,
and Charles M. Duke. Right: The Apollo 16 crew patch.

The terminal countdown for Apollo 16’s launch began on April 14 and proceeded without any significant issues. Engineers in Firing Room 1 of KSC’s Launch Control Center (LCC) monitored all aspects of the countdown, including the final fueling of the Saturn V rocket. Young, Mattingly, and Duke ate their traditional steak and eggs breakfast before putting on their spacesuits and taking the Astrovan to Launch Pad 39A, where they boarded their spacecraft, the Command Module (CM) Casper. Young took the left-hand seat, Duke the right, and finally Mattingly settled in the middle. Thousands of spectators assembled along the beaches near KSC to view the launch. Vice President Spiro T. Agnew arrived in the firing room’s viewing gallery to watch the launch with senior NASA managers.

apollo_16_launch apollo_16_launch
Left: At the traditional prelaunch breakfast, Apollo 16 astronauts John W. Young,
Thomas K. Mattingly, and Charles M. Duke are joined by backup and support
astronauts and managers. Right: Apollo 16 astronauts Young, left,
Mattingly, and Duke suiting up prior to their launch.

apollo_16_launch apollo_16_launch
Left: Apollo 16 astronauts John W. Young, left, Charles M. Duke, and Thomas K.
Mattingly about to board the Astrovan for the ride out to Launch Pad 39A.
Right: In the White Room at Launch Pad 39A, Apollo 16 astronaut Young,
partially hidden at left, and Duke, right, about to board the Command
Module Casper as Mattingly awaits his turn out of the
camera’s field of view.

apollo_16_launch apollo_16_launch apollo_16_launch king_hussein
Left: In the Firing Room 1 viewing gallery, designer of the Saturn V rocket Wernher von Braun chats with Vice President Spiro T. Agnew in the moments before launch. Middle: In the Firing Room 1 viewing gallery, astronaut Alan L. Bean, center, briefs the two daughters of President Richard M. Nixon and their husbands about the Apollo 16 launch – Julie and David Eisenhower, left, and Tricia and Edward Cox. Right: In the VIP viewing stands, King Hussein of Jordan waves to the crowd.

apollo_16_launch apollo_16_launch

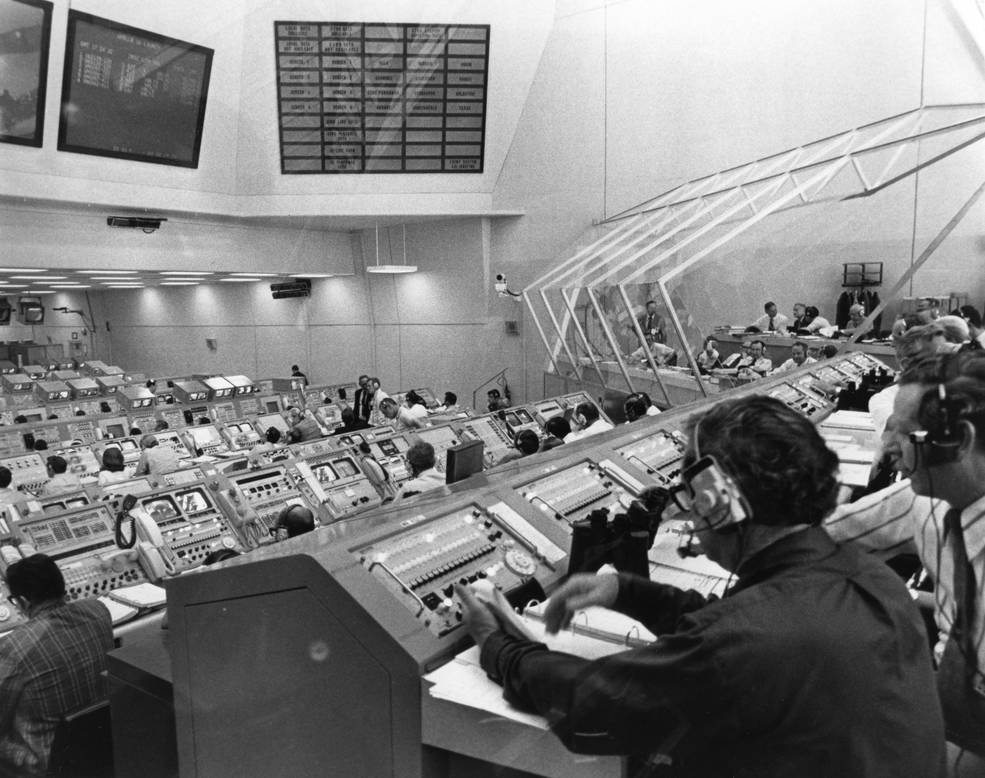

Left: In Firing Room 1 of the Launch Control Center at NASA’s Kennedy Space Center
in Florida, engineers monitor the progress of the Apollo 16 countdown. Right: In
the Firing Room 1 viewing gallery, NASA Deputy Administrator George M. Low, left,
NASA Administrator James C. Fletcher, and Vice President Spiro T.
Agnew observe the Apollo 16 launch.

The countdown continued smoothly, with perfect weather for the launch. Liftoff on 7.7 million pounds of thrust came at 12:54 p.m. Eastern on April 16, 1972. The Saturn V rocket launched Apollo 16 into a clear afternoon sky. Ten seconds after the first motion, the rocket cleared the launch tower and mission responsibility shifted from KSC’s Firing Room 1 to the Mission Control Center (MCC) at the Manned Spacecraft Center, now NASA’s Johnson Space Center in Houston. In the MCC, Flight Director Eugene F. Kranz led his White Team of controllers who monitored this phase of the mission, with NASA astronaut C. Gordon Fullerton acting as capsule communicator (capcom), the person who talked directly to the crew during the flight. After burning for 2 minutes and 42 seconds and lifting the rocket to an altitude of 40 miles, the first stage engines shutoff and the stage jettisoned. The second stage continued to power the ascent until 9 minutes 20 seconds, taking the spacecraft nearly to orbit, at which time it too was jettisoned, and the third stage took over. It burned for two and a half minutes to place Apollo 16 into a circular 105-mile-high parking orbit around the Earth. The astronauts were now weightless, and Young reported enthusiastically, “Boy, it’s just beautiful up here, looking out the window. It’s just really fantastic. And the thing worked like a gem.”

Liftoff of Apollo 16!

For the next two and a half hours, Apollo 16, still attached to the Saturn V’s third stage, orbited the Earth. Young, Mattingly, and Duke removed their helmets and gloves but for now kept their spacesuits on. Together with Mission Control, they determined that all onboard systems were working nominally, and that they could proceed with Trans-Lunar Injection (TLI), the second burn of the Saturn V’s third stage to send them out of Earth orbit and toward the Moon. The engine ignited and fired for 5 minutes and 51 seconds, increasing Apollo 16’s velocity to 24,229 miles per hour to begin the three-day coast to the Moon.

apollo_16_launch apollo_16_launch_earth_before_tli_apr_16_1972 apollo_16_launch_earth_around_time_of_td
Left: The Apollo 16 astronauts took this photograph of Baja California, Mexico, during the first revolution around the Earth. Middle: Clouds over the Pacific Ocean during Apollo 16’s second revolution around the Earth. Right: Photograph from Apollo 16 taken shortly after Trans-Lunar Injection, showing most of North and Central America.

mcc_kranz_and_griffin_before_launch_apr_16_1972 apollo_16_launch
Left: Flight Directors Eugene F. Kranz, left, and Gerald D. Griffin monitor the countdown
of Apollo 16 from the Mission Control Center (MCC) at the Manned Spacecraft Center,
now NASA’s Johnson Space Center in Houston. Right: View of the MCC during a
television broadcast from Apollo 16, with the spacecraft 8,600 miles from
Earth on its way to the Moon.

Twenty-five minutes after the shutdown of the third stage engine, Fullerton called up to the crew that they were “Go” for the transposition and docking maneuver. Six minutes later, and already more than 4,200 miles from Earth, Mattingly separated the Command and Service Module Casper from the spent stage that still held the Lunar Module (LM) Orion. He moved Casper about 60 feet away before turning it around and starting the rendezvous process. Duke set up a camera in the window and Mission Control received the image of the LM as they slowly approached it, along with what Duke called “a zillion particles” traveling with them, most likely flakes of paint from the LM. Seventeen minutes later, Mattingly brought the two spacecraft together to achieve a soft docking. Latches then joined the two to complete a hard docking. By the conclusion of the docking maneuver, less than three and a half hours after liftoff, Apollo 16 had traveled more than 7,800 miles from Earth.

apollo_16_launch apollo_16_launch
Left: The Apollo 16 Lunar Module Orion still attached to the Saturn V rocket’s third
stage during the transposition and docking maneuver. Right: The Saturn V rocket’s
spent third stage as it moves away from the now docked Apollo 16 spacecraft.

One of the astronauts’ first tasks involved pressurizing the LM using oxygen from Casper. About 40 minutes after docking, they separated the combined spacecraft from the now spent third stage and watched as they drifted apart. Ground controllers commanded the stage onto a trajectory to impact on the Moon to trigger the seismometers left on the surface by the Apollo 12, 14, and 15 crews. As the crew aboard Casper watched it slowly accelerate away, Young thanked all the designers and manufacturers of the Saturn V for the great ride to orbit and beyond. Young, Mattingly, and Duke finally removed the spacesuits they had been wearing since several hours before launch, and ate their first meal since the prelaunch breakfast. In Mission Control, Griffin’s Gold Team handed over to Flight Director M.P. “Pete” Frank and his Orange Team of controllers, with astronaut Donald H. “Pete” Peterson replacing Fullerton as capcom. Young complimented the off-going shift with a “Man, that was super!” for their work during the first six hours of the mission. Because the crew continued to observe particles flaking from the LM, Mission Control instructed them to power up Orion and partially activate it to get a status on its system to verify all its systems. They found nothing abnormal during this unscheduled entry into the LM. Mattingly provided TV views of Orion’s exterior, showing a few particles especially when the Reaction Control System (RCS) thrusters fired. Peterson informed the crew that because the third stage had performed so well, the first planned mid-course correction maneuver was not required. The astronauts took a series of ultraviolet photographs of both the Earth and the Moon, as well as some in visible wavelengths, showing the Earth as a shrinking blue orb. They placed their spacecraft into the passive thermal control (PTC) or barbecue mode, in which the vehicle slowly rotated along its longitudinal axis three times per hour to evenly distribute temperatures. In Mission Control, Flight Director Gerald D. “Gerry” Griffin and his Gold Team of controllers, including capcom Henry W. “Hank” Hartsfield, took their consoles to monitor the astronauts as they began their first sleep period in space, about 80,000 miles from Earth.

earth_during_translunar_coast_1 earth_during_translunar_coast_2 earth_during_translunar_coast_3 earth_during_translunar_coast_4
Successive views of the receding Earth as Apollo 16 makes its way to the Moon.

While the crew slept, in Mission Control Flight Director Kranz and his White Team of controllers resumed their positions at the consoles, with astronaut Anthony W. “Tony” England as the new capcom. After a quiet night, the crew woke up, now 113,000 miles from Earth. The first activity of the day involved activating the Fluid Electrophoresis Demonstration experiment to assess the feasibility of using electrophoresis in space to separate cells and large molecules. Later in the day, Frank’s Orange Team of controllers with Peterson as capcom resumed their consoles to help the astronauts conduct a midcourse correction (MCC-2) maneuver, a two-second burn of the 20,000-pound thrust Service Propulsion System (SPS) engine to lower the point of closest approach to the Moon from 135 miles to 82 miles, the correct altitude for the Lunar Orbit Insertion (LOI) burn. Young and Duke activated the LM Orion, spending about two hours activating and checking out its systems and transferring items such as film cassettes. Mattingly made a brief visit inside Orion to take a peek. Philip C. Shaffer, a flight director assigned to the Skylab program, began his first shift, as he and his Purple Team came on for the overnight shift, with Hartsfield once again as capcom. Young, Mattingly, and Duke went to sleep, now 162,000 miles from Earth.

electrophoresis_experiment electrophoresis_experiment

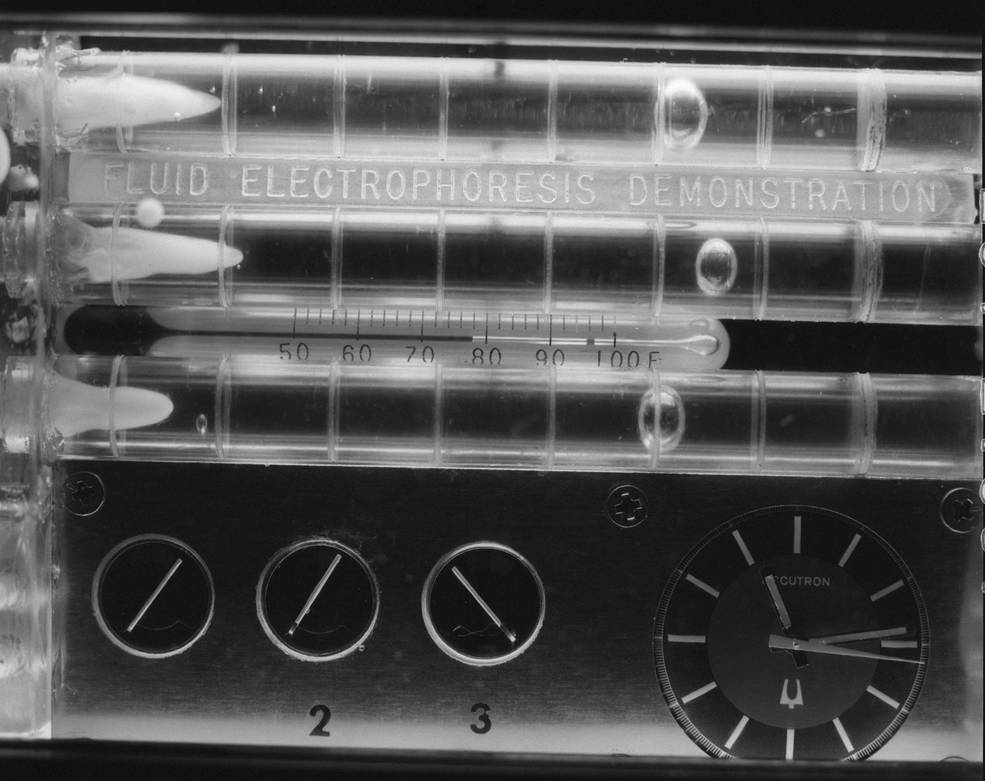

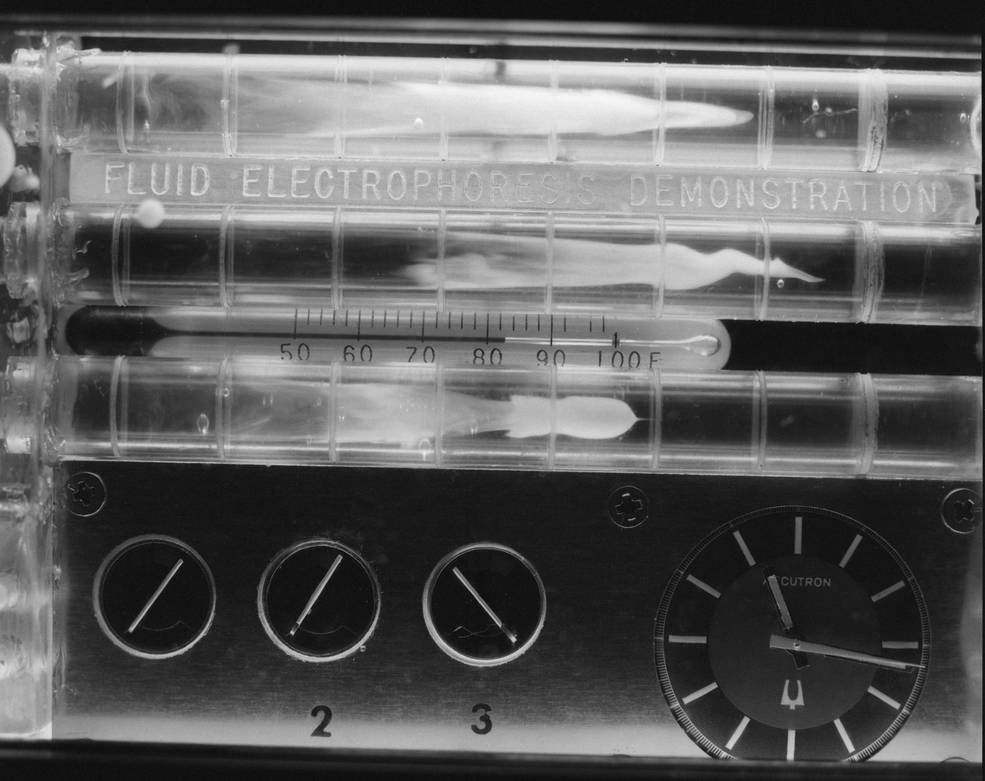

Two sequential photographs of the Fluid Electrophoresis Demonstration experiment carried out during Apollo 16, showing the differential movement of particles from left to right.

The astronauts began their third day in space already 176,000 miles from Earth. One of the experiments on this day sought to gain more information about the light flashes seen by many Moon-bound astronauts. Young, Duke, and Mattingly all donned the helmet and face shield of the Apollo Light Flash Moving Emulsion Detector experiment and reported to Mission Control on the type, frequency, and color of any light flashed they saw. Flight Director Shaffer decided that they could skip the planned third MCC as their trajectory continued to be highly precise. Young and Duke once again activated Orion and in a rehearsal of procedures used on landing day, they donned their spacesuits, without helmets and gloves, and the practiced transferring through the docking tunnel. During their dinner, all three astronauts tested foods and packaging planned for the Skylab program, such as snap-top cans, packets of salt, packages with spoonable foods, and plastic bellows beverage containers. Shortly before the astronauts went to sleep, they crossed the invisible boundary that marked the transition between the Earth’s and the Moon’s gravitational sphere of influence, and Apollo 16 began to accelerate toward its target. As the crew fell asleep, only 38,700 miles separated them from the Moon.

alfmed_experiment dr_ziegelschmid_reviewing_med_trip_chart
Left: One of the Apollo 16 astronauts wears the helmet and face shield for the Apollo Light Flash Moving Emulsion Detector experiment. Right: In a Mission Control Center support room, flight surgeon Dr. John F. Ziegelschmid examines a strip chart recording from one of the Apollo 16 astronaut’s biomedical monitoring harness.

By the time Young, Mattingly, and Duke awoke to begin their fourth day in space, they had closed the distance to the Moon to just 22,200 miles. Once again, Mission Control canceled a planned midcourse correction maneuver as the spacecraft continued to maintain a steady trajectory. The astronauts jettisoned the panel that covered the Scientific Instrument Module (SIM) bay in the Service Module. During launch and the translunar coast, the 5-by-9-foot panel, sometimes referred to as the world’s largest lens cap, protected the cameras and other instruments and a deployable subsatellite in the SIM-bay used to study the Moon and its environment from orbit. Several hours later, as previous lunar missions had done, Apollo 16 disappeared behind the leading edge of the Moon and communications with Mission Control stopped as expected. While behind the Moon, precisely 74 hours and 28 minutes after leaving Earth, Apollo 16 fired its SPS engine for 6 minutes and 14 seconds to enter an elliptical orbit around the Moon.

To be continued…
