45 years ago: Viking 1 Touches Down on Mars

In the summer of 1976, a pair of orbiter and lander spacecraft called Viking arrived at Mars. After first entering orbit, Viking 1’s lander touched down on the Red Planet on July 20. It became the first U.S. spacecraft to land on another planet. Its twin, Viking 2, arrived a few weeks later. The two orbiters and landers operated well beyond their expected 90 days, returning tens of thousands of photographs and scientific data that dramatically increased our knowledge of Mars, its atmosphere, its surface, and its two moons. They revealed the planet to have been geologically active during its history, with evidence of flowing liquid – possibly water – in the past. The landers’ biology experiments produced no definitive evidence for life on the surface.

viking_1_1_spacecraft viking_1_2_model_w_carl_sagan_in_mojave_desert

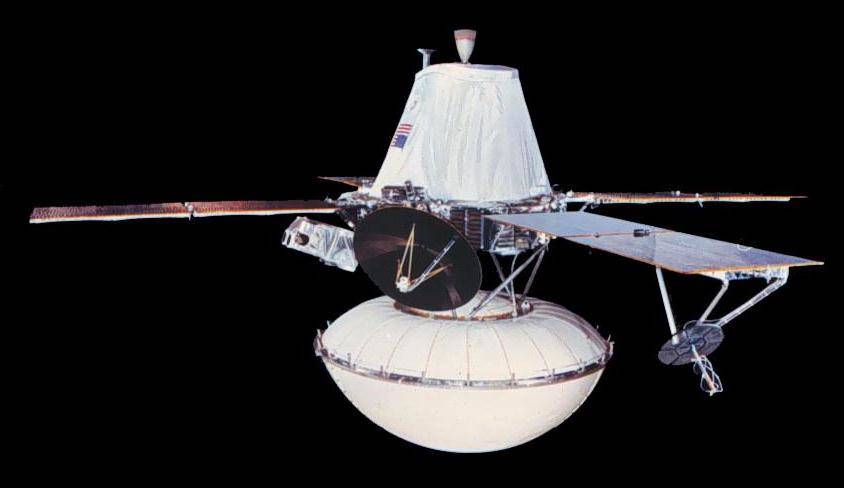

Left: Image of the Viking spacecraft, with the lander encased in its bioshield
at bottom. Right: Cornell University astronomer Carl Sagan stands next to a
model of a Viking lander to provide scale.

Does Mars support life, or did it at some point in its history? That question has been on the minds of scientists and lay people alike for a very long time. During brief flyby explorations of the Red Planet in the 1960s, the Mariner 4, 6, and 7 spacecraft returned photos of a heavily cratered lunar-like surface, dashing hopes for an inhabited world. Those hopes revived somewhat in 1971, at least for the potential of past life, after Mariner 9 entered orbit around Mars and returned photographic evidence of features possibly generated by flowing liquid. The next step in Mars exploration involved placing sophisticated landers called Viking on the surface to analyze the Martian soil and atmosphere for a minimum of 90 days. Three biology experiments were designed to search for possible signs of life.

viking_1_3_launch_aug_20_1975 viking_1_4_viking_2_launch_sep_9_1975

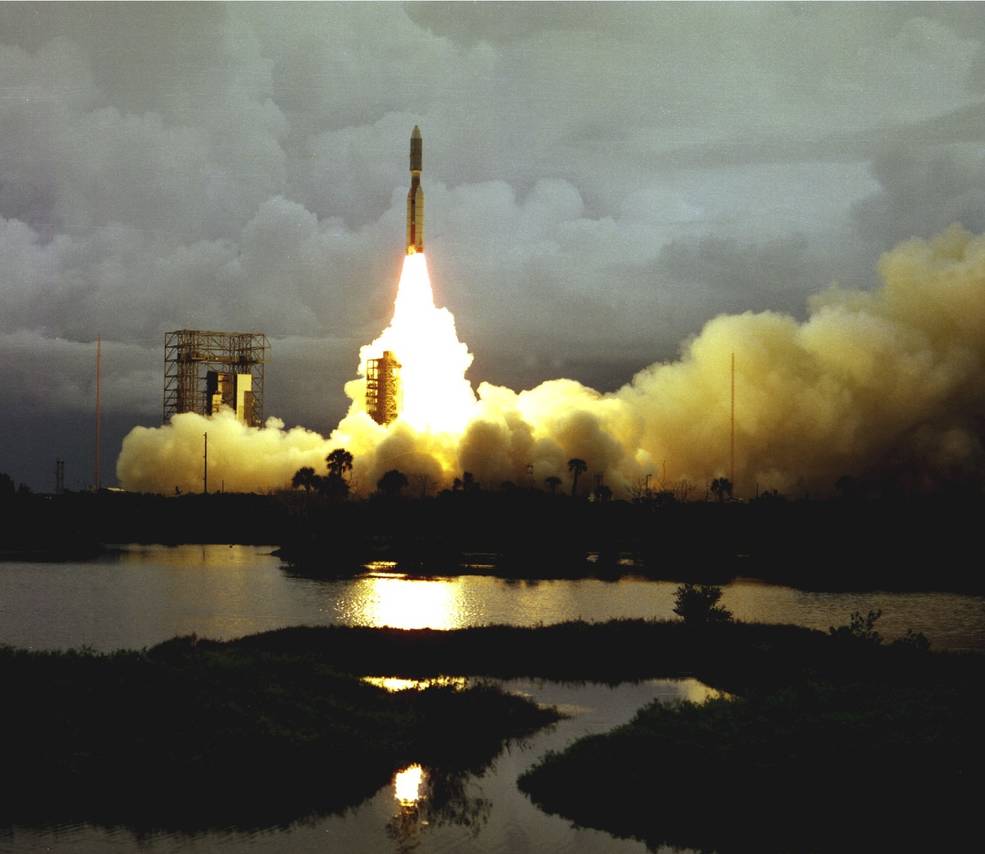

Launches of Viking 1, left, and Viking 2 from Launch Pad 41 at the Cape
Canaveral Air Force Station, now the Cape Canaveral Space Force Station, in Florida.

NASA’s Langley Research Center in Hampton, Virginia, managed the Viking project to develop twin spacecraft each consisting of an orbiter, based on the Mariner 9 spacecraft built by the Jet Propulsion Laboratory (JPL), in Pasadena, California, and a lander, built by Martin Marietta under contract to NASA Langley while JPL handled spacecraft operations. Viking 1 lifted off from Launch Complex 41 at Cape Canaveral Air Force Station, now Cape Canaveral Space Force Station in Florida, on Aug. 20, 1975, to begin its 304-day cruise to the Red Planet, followed by Viking 2 on Sep. 9 to start its 320-day voyage. On June 19, 1976, Viking 1 entered an elliptical orbit around Mars. Although mission managers had planned for the landing to occur on July 4 to coincide with the nation’s bicentennial, photographs taken from orbit showed the original landing site to be rougher than anticipated. A search for a new, safer touchdown point delayed that landing by more than two weeks. On July 20, by coincidence the seventh anniversary of the Apollo 11 Moon landing, the Viking 1 lander separated from the orbiter and began its descent to the surface, making a soft landing in the Chryse Planitia region of Mars. Within five minutes it began sending back the first photograph of its landing site. Viking 2 entered orbit around Mars on July 25 and the second lander made its touchdown in Utopia Planitia on Sep. 3.

viking_1_5_first_image_from_surface_jul_20_1976 viking_1_6_first_color_image_from_surface_jul_21_1976
Left: The first photograph ever returned from the surface of Mars, by the Viking 1 lander,
including one of its footpads. Right: The first color photograph returned by the Viking 1 lander.

viking_1_7_viking_2_first_image_from_the_surface viking_1_8_viking_2_first_color_image_from_the_surface
Left: The first photograph returned from the surface of Mars by the Viking 2 lander,
including one of its footpads. Right: The first color photograph returned by the Viking 2 lander.

Both orbiters and landers far exceeded their expected 90-day lifetimes in their scientific exploration of Mars, vastly increasing our knowledge of the planet, its atmosphere, and its surface. The Viking 1 and 2 orbiters continued their missions until Aug. 17, 1980, and July 24, 1978, respectively, in total returning 52,663 images of Mars, mapping 97% of its surface at a resolution of 300 meters with selected areas to a resolution of 8 meters. The orbiters also imaged Mars’ two small moons, Phobos and Deimos, providing striking photographs of the irregular objects. The Viking 1 and 2 landers continued monitoring weather changes at the surface until Nov. 11, 1982, and April 12, 1980, respectively, together returning 4,500 photographs from the two landing sites. The biology experiments produced no definitive evidence of life at either landing site. The Viking 1 lander held the record for the longest operating spacecraft on the surface of Mars, 2307 Earth days (more than six years) or 2245 Martian sols, until May 19, 2010, when the Opportunity rover surpassed it.

View of the Martian sky at sunrise taken by the Viking 1 lander.

viking_1_10_trench_color viking_1_11_viking_2_surface_image

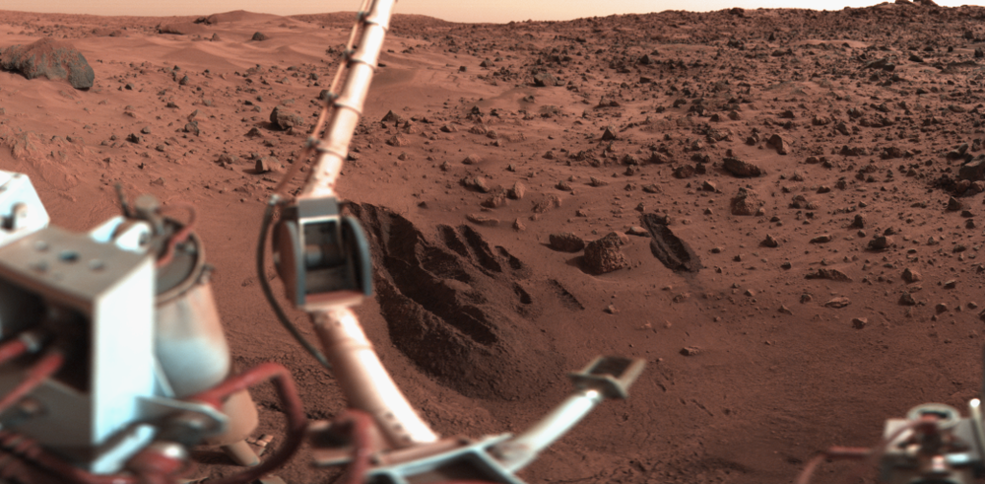

Left: View of trenches dug by the Viking lander’s robotic arm to collect soil samples.

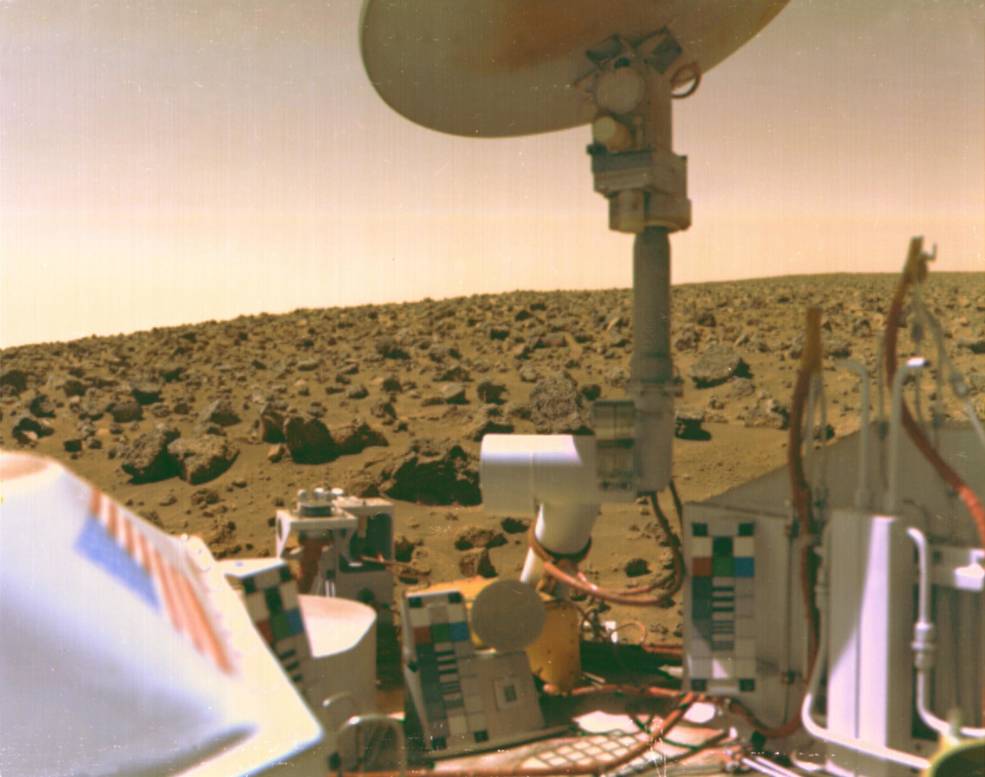

Right: Photograph of the Viking 2 landing site including parts of the spacecraft.

viking_1_12_orbiter_valles_marineris viking_1_13_viking_2_lander_frost
Left: Image of the Valles Marineris, the largest canyon in the solar system, taken by
the Viking 1 orbiter. Right: View of surface frost at the Viking 2 landing site.

viking_1_14_orbiter_phobos_mosaic_1978 viking_1_15_lander_imaged_by_mro_dec_2006
Left: Mosaic of images of the Martian moon Phobos taken by the
Viking 1 orbiter. Right: Image of the Viking 1 lander taken by
the Mars Reconnaissance Orbiter in 2006.

Sunset at the Viking 1 landing site.

A long hiatus in Mars surface exploration followed the end of Viking operations, with the next lander, NASA’s Mars Pathfinder carrying the Sojourner rover, arriving on July 4, 1997. That mission, along with the insertion of the Mars Global Surveyor into orbit around the Red Planet on Sep. 12, 1997, ushered in an era of continuous robotic exploration of Mars. Since that time, at least one and typically multiple spacecraft have been operating either in orbit around or on the surface of Mars. The effort has been multinational, with missions sponsored by the United States, the European Space Agency, Russia, India, the United Arab Emirates, and the People’s Republic of China.

For more information about NASA’s Viking missions, visit NASA’s Mars Exploration Program site.
