Robot Team Builds High-Performance Digital Structure for NASA

Greater than the sum of its parts: NASA tests the capability of a system that includes simple robots, structural building blocks, and smart algorithms to build functional, high-performance large-scale structures, ultimately enabling autonomous deep-space infrastructure.

A NASA researcher closely examines a small robot that bolts building blocks to a structure.
Research engineer Christine Gregg inspects a Mobile Metamaterial Internal Co-Integrator (MMIC-I) builder robot. These simple robots are part of a hardware and software system NASA researchers are developing to autonomously build and maintain high-performance large space structures comprised of building blocks. MMIC-I works by climbing though the interior space of building blocks and bolting them to the rest of the structure during a build or unbolting during disassembly.
NASA/Dominic Hart

If they build it, we will go – for the long-term.

Future long-duration and deep-space exploration missions to the Moon, Mars, and beyond will require a way to build large-scale infrastructure, such as solar power stations, communications towers, and habitats for crew. To sustain a long-term presence in deep space, NASA needs the capability to construct and maintain these systems in place, rather than sending large pre-assembled hardware from Earth.

NASA’s Automated Reconfigurable Mission Adaptive Digital Assembly Systems (ARMADAS) team is developing a hardware and software system to meet that need. The system uses different types of inchworm-like robots that can assemble, repair, and reconfigure structural materials for a variety of large-scale hardware systems in space. The robots can do their jobs in orbit, on the lunar surface, or on other planets – even before humans arrive.

Researchers at NASA’s Ames Research Center in California’s Silicon Valley recently performed a laboratory demonstration of the ARMADAS technology and analyzed the system’s performance. During the tests, three robots worked autonomously as a team to build a meters-scale shelter structure – roughly the size of a shed – using hundreds of building blocks.  The team published their results today in Science Robotics.

Two NASA researchers watch small robots assembling building blocks into a structure in a laboratory.

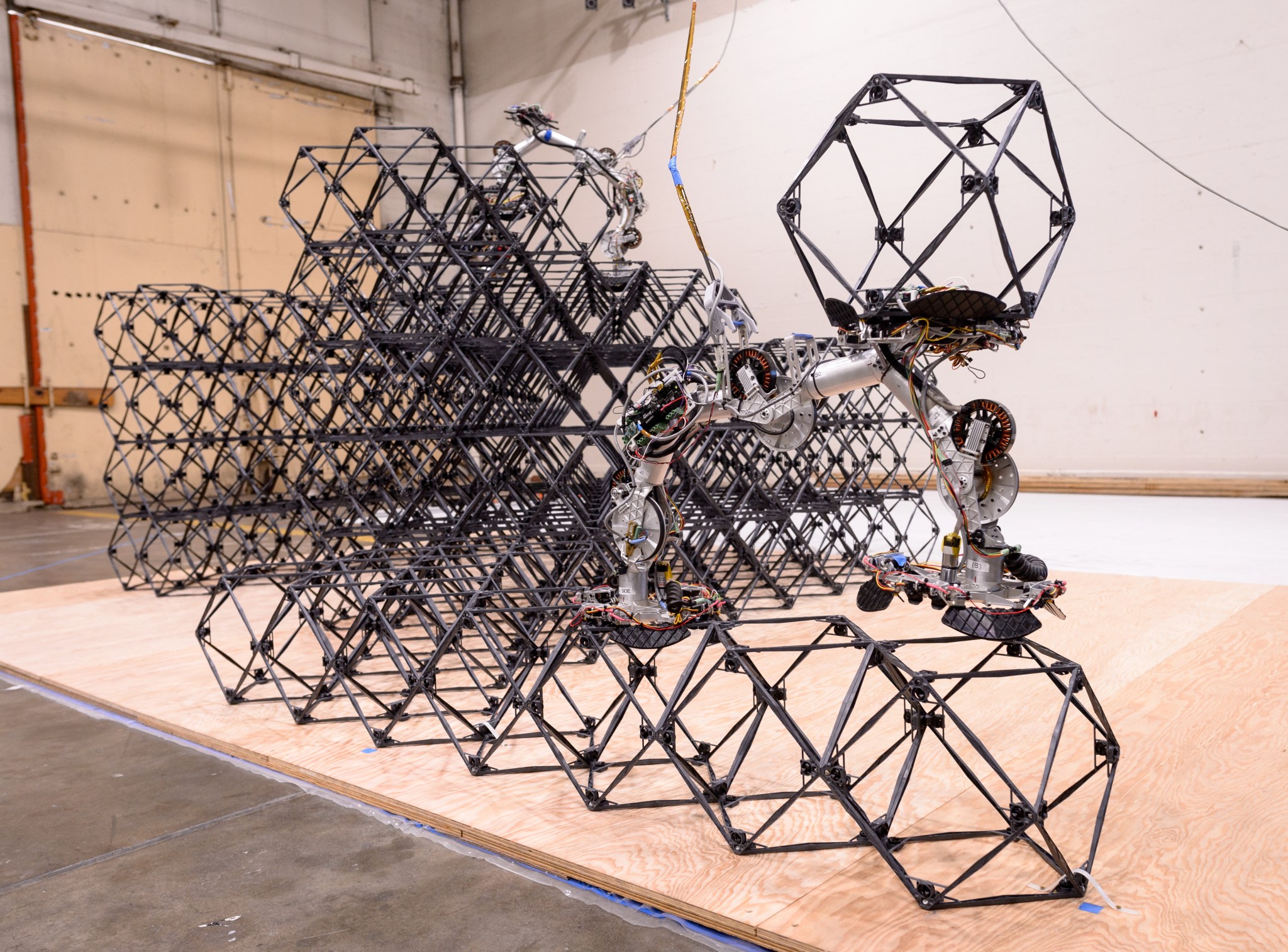

Research engineer Taiwo Olatunde, left, and intern Megan Ochalek, right, observe as robots move and assemble composite building blocks into a structure. The robots worked on their own to complete the structure in a little over 100 hours of operations. To facilitate the team’s watchful monitoring of the robots’ performance, the demonstration was split over several weeks of regular working hours.
NASA/Dominic Hart

“The ground assembly experiment demonstrated crucial parts of the system: the scalability and reliability of the robots, and the performance of structures they build. This type of test is key for maturing the technology for space applications,” said Christine Gregg, ARMADAS chief engineer at NASA Ames.

The high strength, stiffness, and low mass of the structural product is comparable to today’s highest-performance structures, like long bridges, aircraft wings, and space structures – such as the International Space Station’s trusses. Such performance is a giant leap for the field of robotically reconfigurable structures.

A small robot, holds a building block that is roughly ball-shaped but has flat faces. The robot stands atop a structure built of these building blocks.

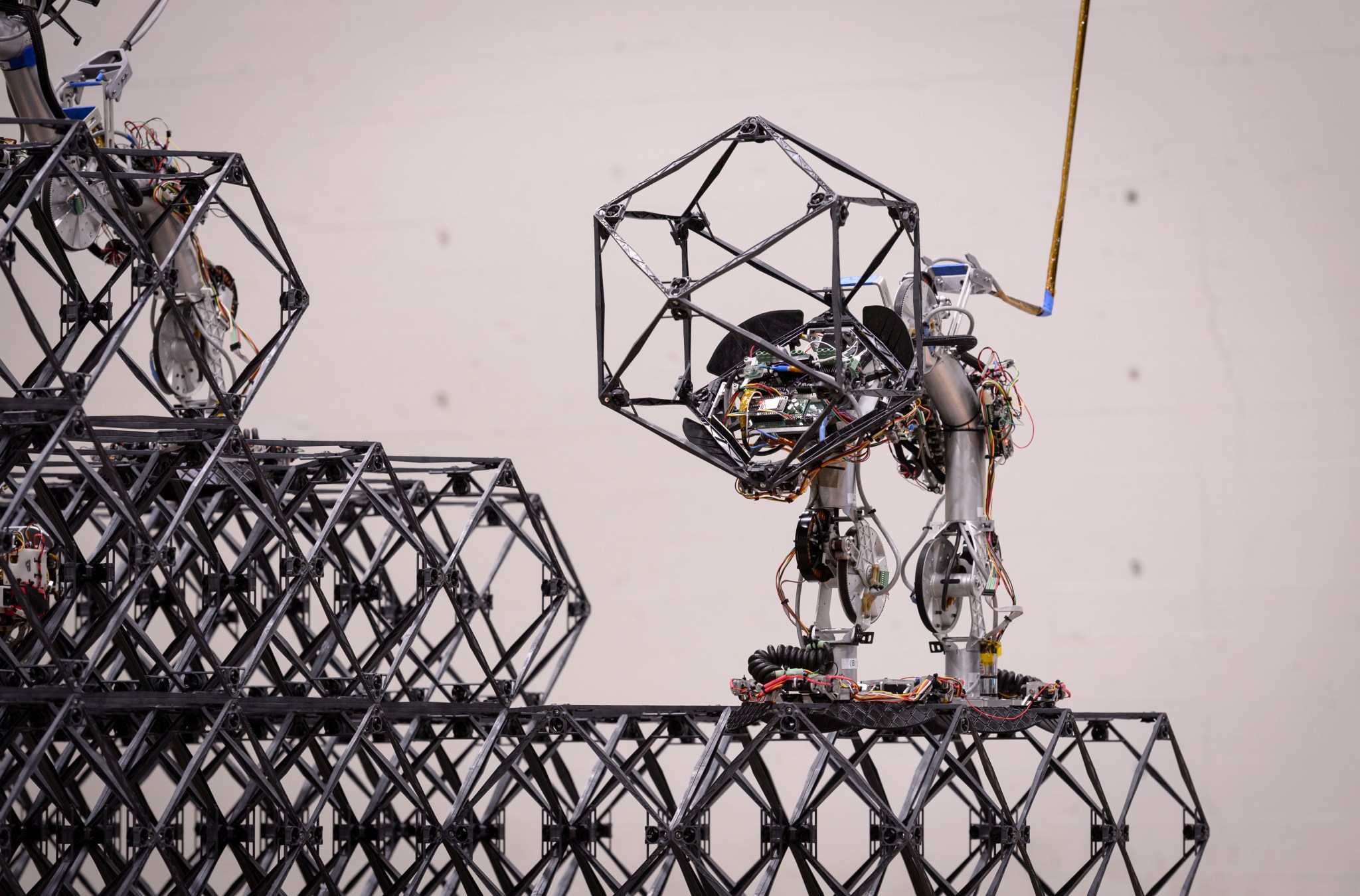

A Scaling Omnidirectional Lattice Locomoting Explorer (SOLL-E) builder robot carries a soccer ball-sized building block called a voxel – short for volumetric pixel – during a demonstration of NASA’s Automated Reconfigurable Mission Adaptive Digital Assembly Systems (ARMADAS) technology at NASA’s Ames Research Center in Silicon Valley. The voxels are made of strong and lightweight composite materials formed into a shape called a cuboctahedron.
NASA/Dominic Hart

Programmable, Reconfigurable Structures

“‘Mission adaptive’ capabilities allow a system to be reused for multiple purposes, including ones that adopt hardware from completed activities, decreasing the cost of new missions,” said Kenny Cheung, ARMADAS principal investigator at NASA Ames. “‘Digital assembly systems’ refers to the use of discrete building blocks, as a physical analog to the digital systems that we use today.”

Many people use digital systems to view photos or text on a display, like a smartphone screen. A digital image uses a small set of pixel types to form almost any image on a high-resolution display. You can think of pixels as building blocks for 2D space. The ARMADAS system can use a small set of 3D building blocks – called voxels, short for volumetric pixels – to form almost any structure. Just like digital images, the ARMADAS system is ‘programmable,’ meaning that it can self-reconfigure to meet evolving needs, with the help of the robots.

The voxels used in the demonstration were made of strong and lightweight composite materials formed into a shape called a cuboctahedron. The voxels resemble a wire-frame soccer ball with flat faces and highly precise geometry.

“It’s surprising how strong and stiff these systems are, given how they look,” said Cheung. “Making large structures from small building blocks allows us to use good materials at the lowest cost. The size of the structures that can be made is only limited by the number of building blocks that can be supplied.”

This kind of scalability is revolutionary in comparison to current methods of fabricating spacecraft in factories, or even 3D printing.

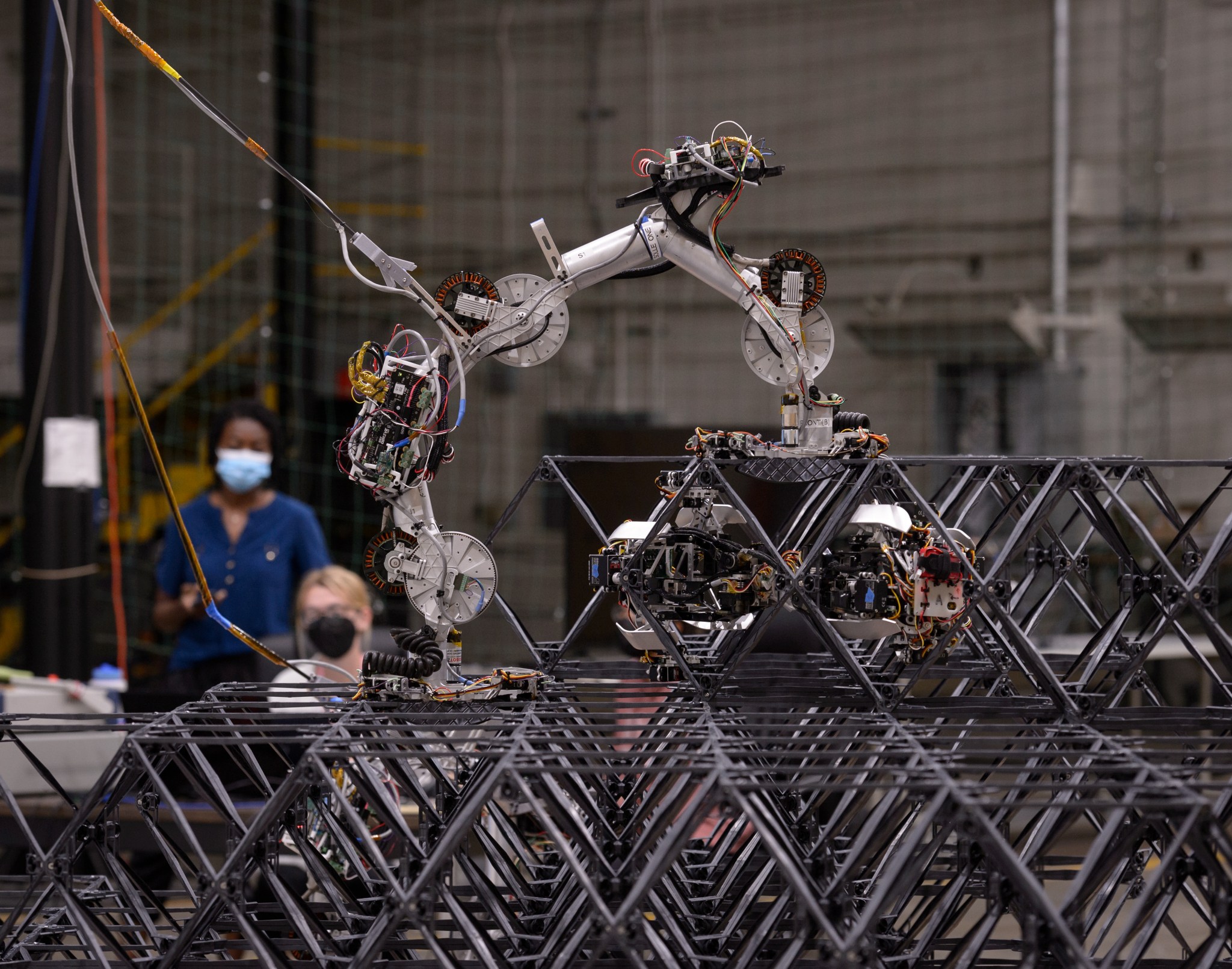

A Scaling Omnidirectional Lattice Locomoting Explorer (SOLL-E) builder robot carries a small building block called a voxel – short for volumetric pixel – as it maneuvers, stepping inchworm-style, along the exterior of a mechanical metamaterial structure, foreground, while a SOLL-E and a Mobile Metamaterial Internal Co-Integrator (MMIC-I) fastening robot attach a voxel to the structure, background. The highly predictable nature of the structure built by the robots allows them to build very precise structures that are much larger than themselves, unlike typical factory produced products.
NASA/Dominic Hart

A Reliable System Relies on Building Blocks

Building blocks are also key to the robotic system autonomy and reliability.

“Generally, it’s very hard to develop robust autonomous robots that can operate in unstructured environments, like a typical construction site. We turn that problem on its head by making very simple and reliable robots that operate in an extremely structured lattice environment,” said Gregg.

For the demonstration, the ARMADAS team provided plans for the structure, but they didn’t micromanage the robots’ work. Software algorithms did the job of planning the robots’ tasks. The system practiced the build sequence in simulation before the actual run started.

While in operation, two robots – stepping inchworm style – walked on the exterior of the structure, moving one soccer ball-sized voxel at a time. One robot fetched the voxels from a supply station and passed them to the second robot that, in turn, placed each voxel on its target location.

A third robot followed these placements, climbing though the interior space of the voxels and bolting each new voxel to the rest of the structure.

Time-lapse showing robots, working autonomously as a team, to assemble a meters-scale shelter structure using hundreds of building blocks during a technology demonstration at NASA’s Ames Research Center in Silicon Valley. Credits: NASA

“Because the robots align each small step to the structure in what is essentially a 3D grid, simple algorithms with low computation and sensing requirements can achieve high-level autonomy goals. The system builds and error-corrects on its own with no machine vision or external means of measurement,” said Gregg.

Future work will expand the library of voxel types that the robots work with, to include solar panels, electrical connections, shielding, and more. Each new module type will dramatically expand the possible applications because the robots can mix and match them to meet specific needs and locations. The ARMADAS team is also working on new robot capabilities, such as inspection tools, to ensure that autonomously constructed facilities are safe and sound before astronauts arrive.

ARMADAS’ technology approach increases what we can do with equipment sent for most deep space exploration missions, and how long we can use them. When a mission completes, robots can disassemble space structures, repurpose the building blocks, and construct designs of the future.
