What Does the DSN Do?

Contents

The DSN Now tool is displayed on a screen in the foreground—antenna images show real-time data provided by the Deep Space Network ground stations. The Artemis logo is seen in the background on a large screen.
The DSN Now tool displays real-time data in the Charles Elachi Mission Control Center at NASA’s Jet Propulsion Laboratory during the Artemis I launch on November 16, 2022.
NASA/JPL-Caltech/Ryan Lannom

The Deep Space Network, or DSN, is much more than a collection of big antennas. It is a powerful system for commanding, tracking and monitoring the health and safety of spacecraft at many distant planetary locales. The DSN also enables powerful science investigations that probe the nature of asteroids and the interiors of planets and moons.

Telemetry

Telemetry data is made up of crucial science and engineering information transmitted to Earth via radio signals from spacecraft as they explore the far reaches of our solar system. The Deep Space Network, or DSN acquires, processes, decodes and distributes this data.

Spacecraft Command

Space mission operations teams use the DSN Command System to control the activities of their spacecraft. Commands are sent to robotic probes as coded computer files that the craft execute as a series of actions.

Tracking

The DSN Tracking System provides two-way communication between Earth-based equipment and a spacecraft, making measurements that allow flight controllers to determine the position and velocity of spacecraft with great precision.

Radio Science

DSN antennas are used by some space missions to perform science experiments using the radio signals sent between a spacecraft and Earth. Changes in radio signals between their transmission and receipt can provide lots of useful information about far off places in the solar system. Examples include probing the rings of Saturn, revealing the interior structure of planets and moons, and testing the theory of relativity.

Science

In addition its vital role as the communications hub for deep space exploration, the DSN is also used as an advanced instrument for scientific research, including radio astronomy and radar mapping of passing asteroids.

Follow the Sun Operations

The DSN consists of three complexes located approximately 120 degrees apart (Canberra, Australia; Madrid, Spain; Goldstone, California) tracking NASA and non-NASA missions that explore the furthest points of our solar system. Historically, the complexes operated concurrently with three shifts per day, one operator per antenna, 24 hours a day, seven days a week. A new paradigm called Follow the Sun allows each of the three DSN sites to operate the entire network during their day shift.

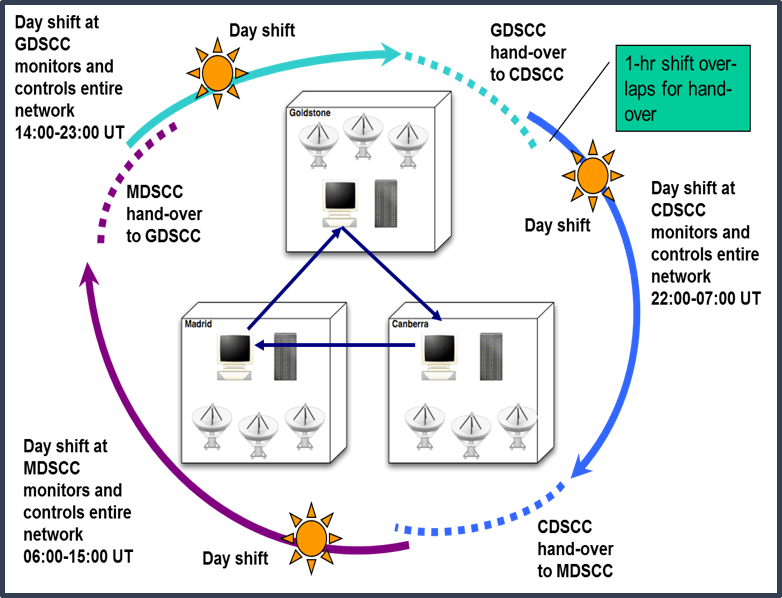

The Follow the Sun Initiative allows each of the three DSN sites to operate the entire network during their day shift. The chart above shows how each center hands over controls.

Starting on Nov. 6, 2017 at midnight GMT (Nov. 5, 7 p.m. EST), Follow the Sun operations became a reality. The Canberra team operated the network from midnight GMT through 6 a.m. GMT. The Madrid team took over at 6 a.m. GMT through 2 p.m. GMT. The Goldstone team rounded out the first day from 2 p.m. GMT through 10 p.m. GMT and then Canberra took over for the next day. Data delivery performance has been nominal since Follow the Sun has been operational. This initiative has supported missions such as TESSInsight and Parker Solar Probe
