NASA Takes an Insured Look at Hailstorm Risk

A Geostationary Operational Environmental Satellite–16 (GOES-16) animation of color-enhanced infrared wavelength temperature overlaid upon visible wavelength brightness imagery from May 22-23, 2020. White-colored areas embedded within magenta shading indicate cloud temperatures colder than -80 degrees Celsius and strong updrafts, commonly referred to as overshooting cloud tops. A plume of warmer colors (red) with different cloud top texture streaming to the northeast out of the updraft near Burkburnett, Texas indicate an above anvil cirrus plume, a strong indicator of ice injection into the stratosphere and an extremely severe storm. Hail exceeding 5 inches (12.5 cm) in diameter was observed in Burkburnett and 4-inch (10 cm) diameter hail was reported near Davidson, Oklahoma.

When a hail storm strikes, the damage can be catastrophic for homes, businesses, agriculture and infrastructure. In fact, with damage totals sometimes exceeding $1 billion, hailstorms are the costliest severe storm hazard for the insurance industry, making reliable, long-term data necessary to estimate insured damage and assess extreme loss risks.

That’s why a team of NASA scientists is working with international partners to use satellite data to detect hailstorms, hail damage, and improve our understanding of hail frequency. This project will provide long term regional- to global-scale maps of severe storm occurrence, catastrophe models, and new methods to improve short-term forecasting of these storms.

“We’re using data from many satellite sensors to really dig in and understand when and where hailstorms are likely to occur and the widespread damage that they can cause,” said Kristopher Bedka, principal investigator at NASA’s Langley Research Center in Hampton, Virginia. “This is a first-of-its-kind project and we’re beginning to show how useful this satellite data can be to the reinsurance industry, forecasters, researchers, and many other stakeholders.”

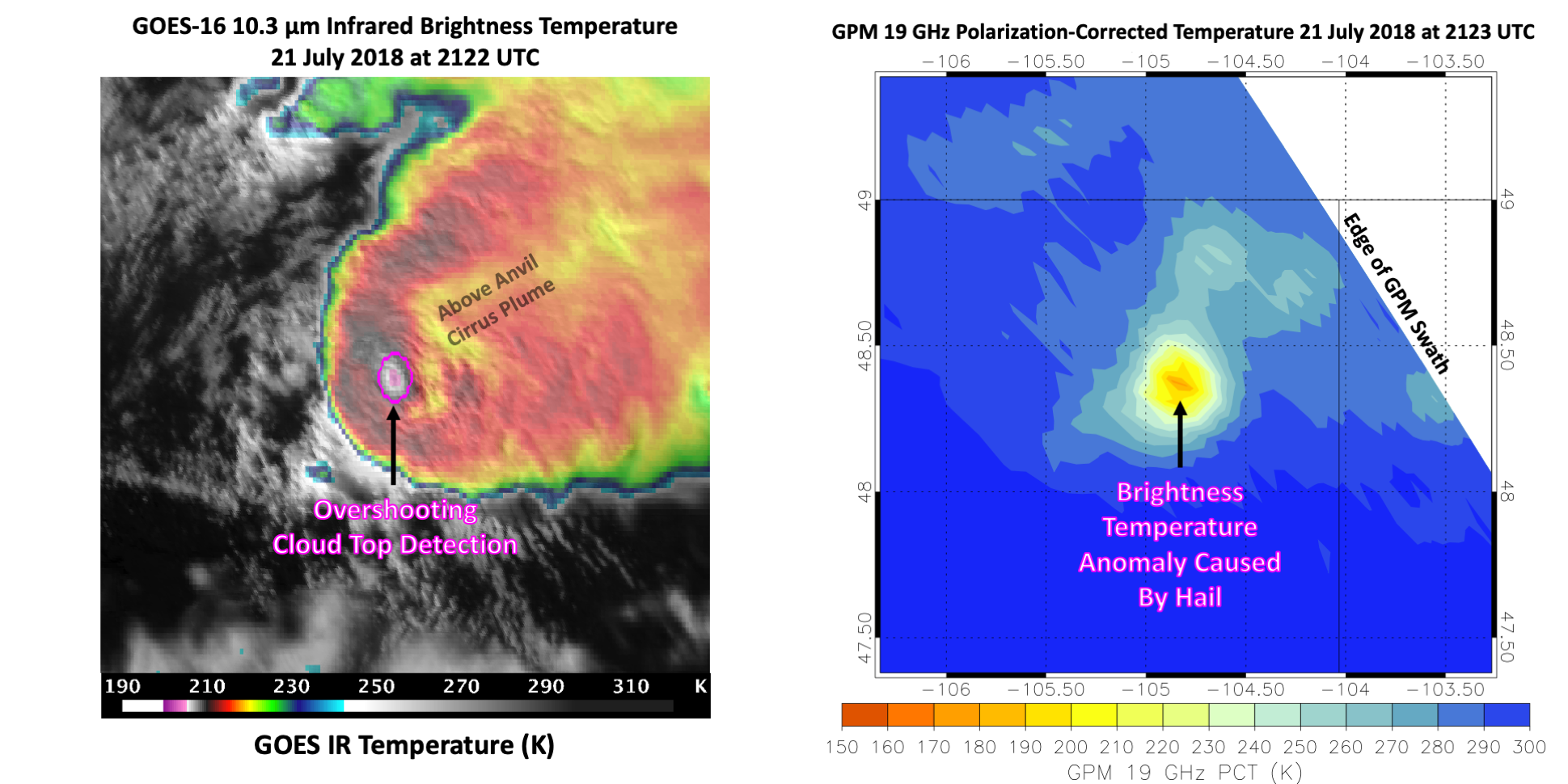

GOES and GPM hailstorm imagery

These expansive satellite datasets provide essential knowledge to regions that lack routine hail event reporting from continuous, long-term weather radar observations, the media and the general public. A current priority for the team is to develop an innovative hail risk assessment over South Africa, where hailstorms are responsible for nearly half of the total value of insured natural catastrophe losses.

For this project, NASA is collaborating with Willis Towers Watson, a company that provides global advisory and brokering services by working with clients to better understand risk and provide financial resilience against extreme loss-making events such as hailstorms. The company’s reinsurance broker, Willis Re, works with academic partners to develop new industry tools based on the latest insights and methods.

Willis Re is working to expand its catastrophe model capabilities for all of South Africa and all lines of business at risk from hail, including property, motor, and agricultural claims. This catastrophe model will be used to help clients in insurance and reinsurance to develop their own view of risk for their region, which will include the probability of extreme losses and a more accurate estimation of average annual losses due to hail.

Hail catastrophe models being developed by Willis Re require extensive analysis of hail events to quantify characteristics such as the length, width, duration, intensity and movement-speed of storm activity. These characteristics are identified in this project from long-term trends in geostationary satellite data with additional views from satellites in low Earth orbit. These models create synthetic hail events — over many tens of thousands of simulated years — that match these characteristics, followed by additional analysis to derive hailstorm frequency and financial impact to a given insurer’s portfolio.

Multiple Space-based Views of Hailstorms

Though scientists aren’t traveling the world to observe hail directly, they are able to use information from a number of different satellite instruments to “see” a historic record of where hailstorms have occurred.

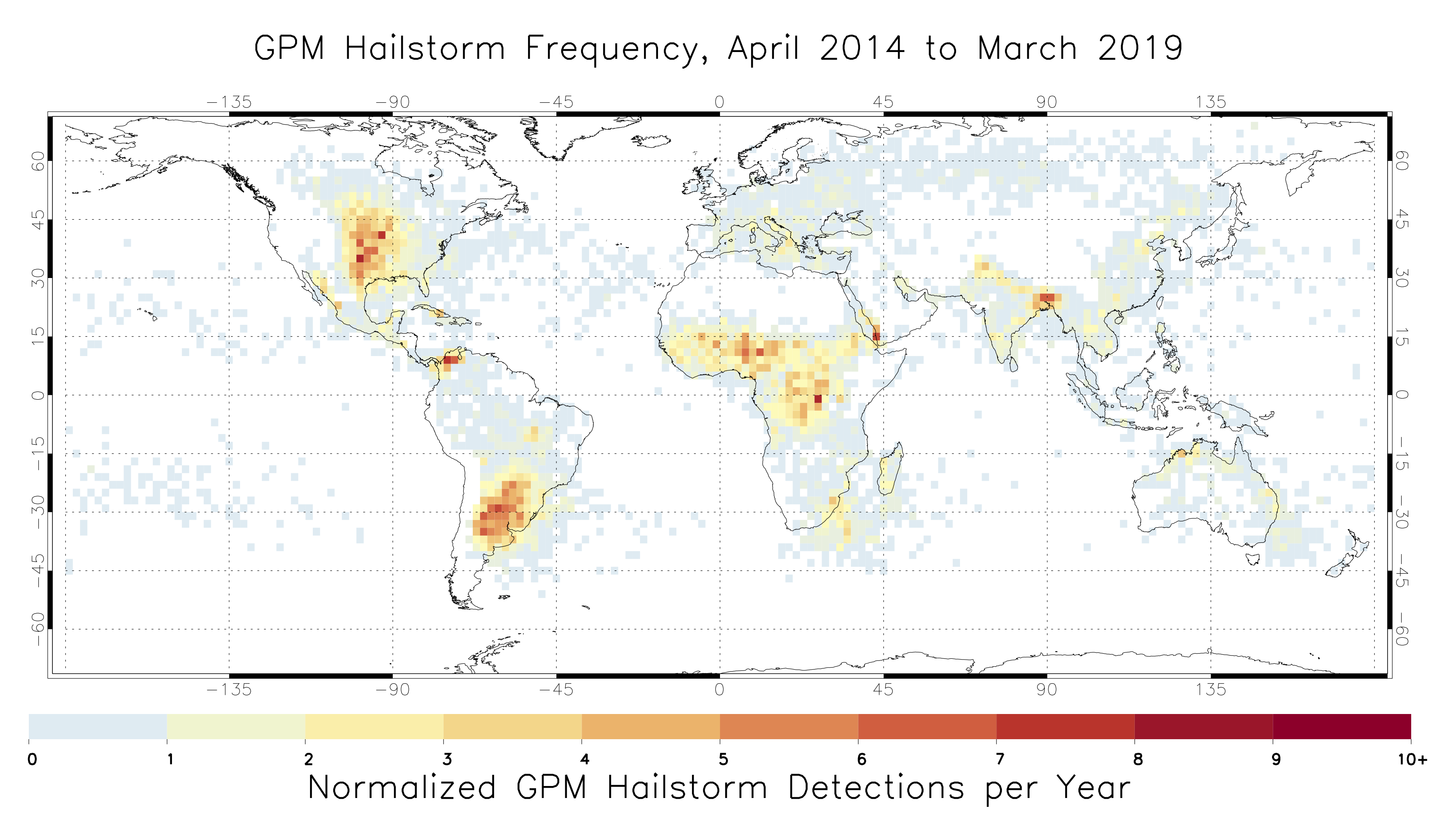

Climatology of annual frequency of hailstorms

“Hail is formed within strong thunderstorm updrafts that have unique appearance in geostationary visible, infrared, lightning imagery and low Earth orbit passive microwave imagery.” Bedka said. “We are focused on detecting these patterns in a consistent way throughout as long of a satellite data record as possible.”

Geostationary satellite imagery can reveal regions of highly textured and very cold cloud tops, commonly referred to as “overshooting tops,” that indicate locations of strong updrafts likely to produce hail and other severe weather.

A hailstorm frequency analysis from geostationary data records was developed by NASA and Karlsruhe Institute of Technology to estimate hail frequency over Europe and Australia, which will be extended to South Africa and South America.

Scientists can use passive microwave sensors in low Earth orbit to spot hail because it blocks microwave energy upwelling from the Earth. Couple that microwave sensor data with the higher resolution, more frequent data from geostationary imagers can help scientists derive storm size, duration and intensity characteristics required for catastrophe models.

Satellite instruments that map lightning flash rates are helpful as well.

“Stronger updrafts that support larger hail growth are capable of generating charge at a faster rate, leading to the higher flash rates we observe in severe hailstorms,” said Chris Schultz of NASA’s Marshall Space Flight Center in Huntsville, Alabama.

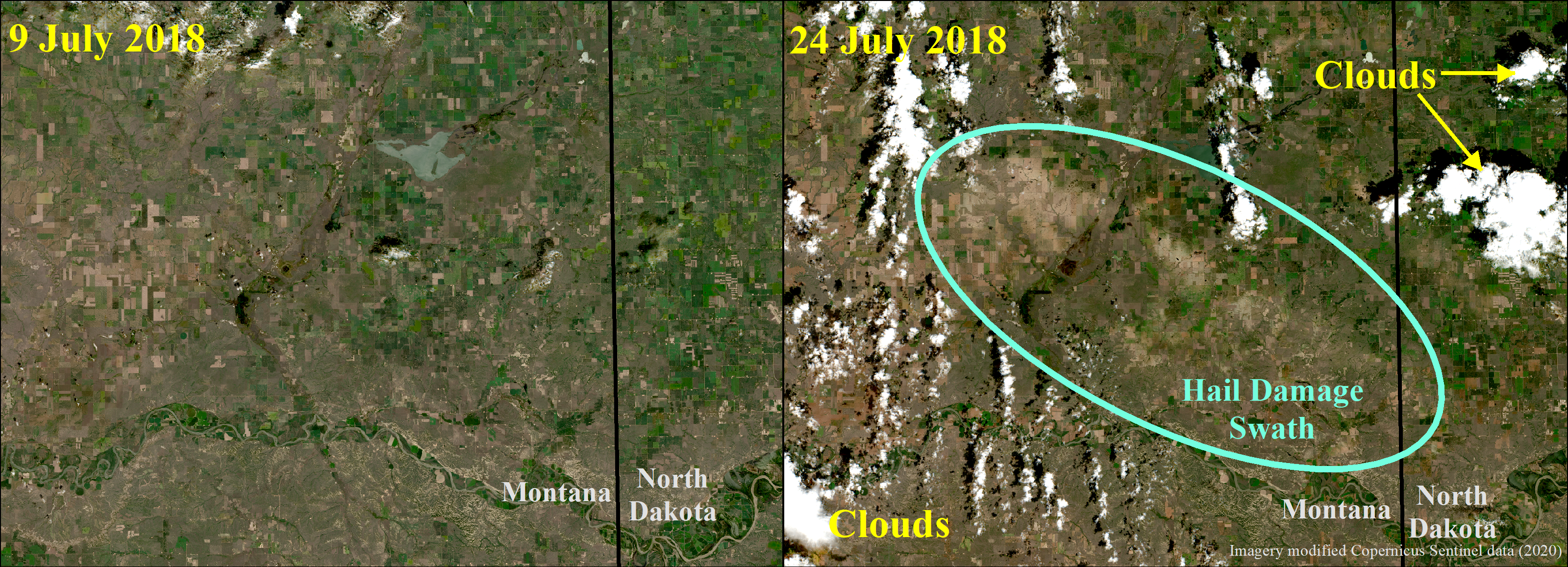

ESA’s Copernicus Sentinel-2 MultiSpectral Instrument captures pre- and post-hail damage swath imagery

NASA’S MERRA-2 reanalysis model provides an important 3D view of the temperature, moisture, and wind environment that the hailstorm is in. Analysis of the storm environment is very important to differentiate storms where hail is unlikely due to weak instability or wind shear that cannot sustain strong updrafts. In addition, hail that falls from storms with a deep layer of warm air in the lower atmosphere will likely melt before it reaches the ground.

Views from high resolution land surface imaging satellites can reveal long tracks of visible damage on the ground. These hail damage swaths are frequently found in the central United States. They have also been observed to impact crops in other leading agricultural areas of the world, including Brazil, Argentina, South Africa and Europe.

“It is hoped that this hail risk modeling capability will be applied to Willis Towers Watson’s major reinsurance clients to help with the pricing of reinsurance contracts and assessing capital and reserves to meet regulatory requirements” said Geoffrey Saville, senior research manager for the Willis Research Network’s Weather and Climate Hub. “By leveraging our research relationship with academic partners at Karlsruhe Institute of Technology in Germany, and being a part of this NASA project, we can not only provide a business rationale to develop the new techniques to assess hail risk, but also work with clients in South Africa to manage the risks of severe storms and support business and personal insurance.”

This project, funded by NASA’s Earth Science’s Disasters Program, is a collaboration between NASA’s Langley Research Center in Hampton, Virginia, and NASA’s Marshall Space Flight Center in Huntsville, Alabama, Willis Towers Watson (WTW), and partners in Germany, Brazil, Argentina, and South Africa.

Denise Lineberry
NASA Langley Research Center
