NASA Vertiport Research Takes Flight

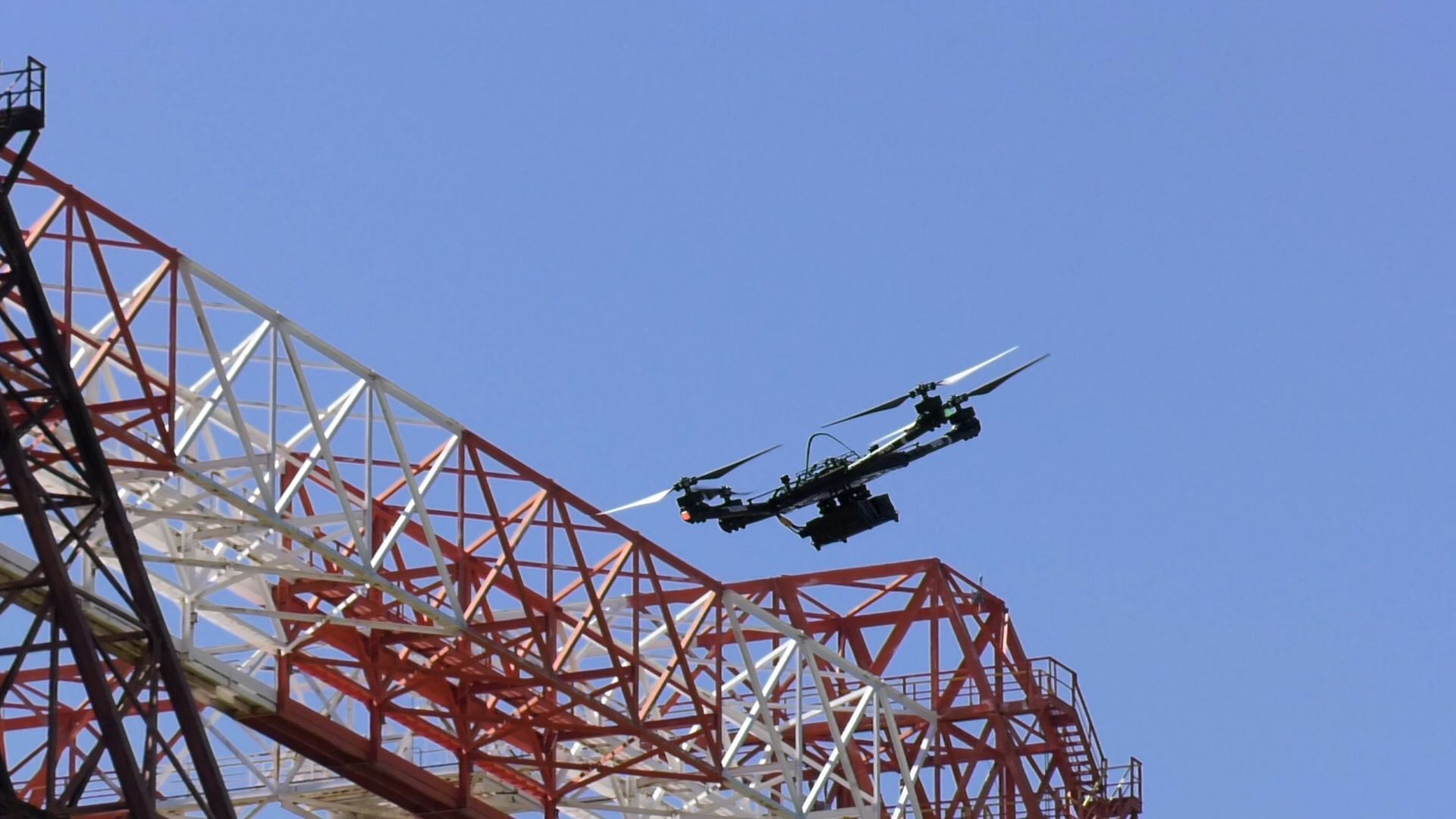

A NASA Alta-X drone operated by NASA researchers flies over NASA Langley?s City Environment Range Testing for Autonomous Integrated Navigation (CERTAIN)
An Alta-X drone operated by NASA researchers flies over NASA Langley’s City Environment Range Testing for Autonomous Integrated Navigation (CERTAIN) as part of the Advanced Air Mobility project’s High Density Vertiplex (HDV) testing in April 2022.
Credits: NASA/Robert Lorkiewicz

In the coming years and decades, NASA wants to bring new and innovative aviation services to areas across the country, which will likely mean more helicopter-style aircraft in the skies. NASA researchers recently completed a series of tests to help make that vision into a reality: simulating a facility where large volumes of vertical take-off and landing aircraft can operate.

NASA’s Advanced Air Mobility (AAM) project works to help emerging aviation markets safely develop air transportation systems to move people and cargo. Its High Density Vertiplex (HDV) subproject seeks to develop the infrastructure needed to support those systems. Much of the country’s air infrastructure is dedicated to airplanes. But in the future vertiports will become increasingly important, especially in urban areas.

NASA’s Langley Research Center in Hampton, Virginia, and the agency’s Ames Research Center in California’s Silicon Valley, recently completed a series of HDV tests that marked the first Level-1 milestone for AAM, a significant step toward the future or urban flight.

The researchers faced three unique challenges. First up, developing a prototype Urban Air Mobility ecosystem that met several key requirements, including automated systems for aircraft operations, airspace management, ground control and fleet management.

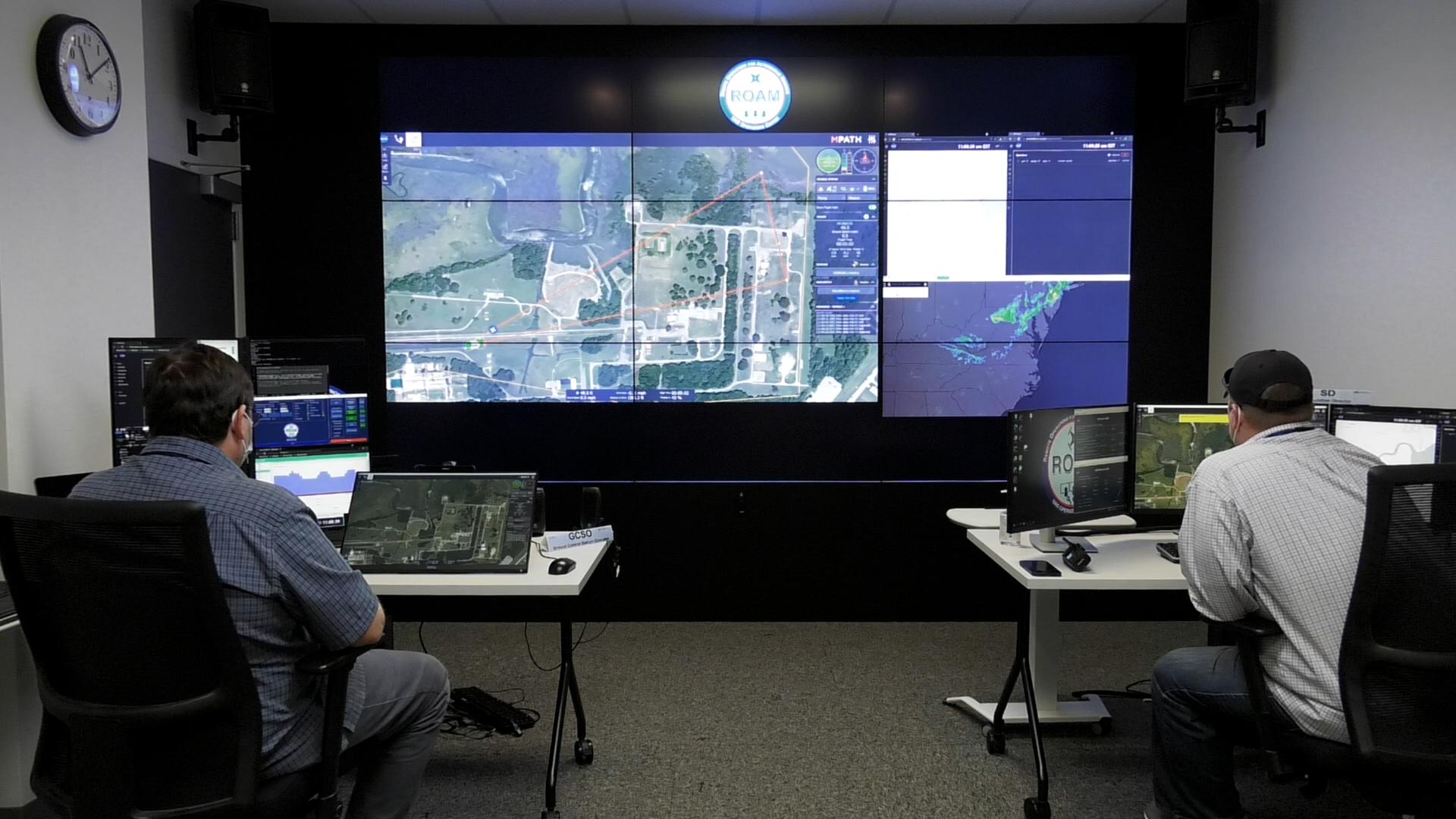

Researchers at NASA Langley conduct command and control operation within the Remote Operations for Autonomous Missions lab. Researchers are able to simulate urban air mobility flights and monitor live flights from within the facility.
Credits: NASA

“Several aspects of Urban Air Mobility will require a different approach to aircraft operations,” said Lou Glaab, technology lead for HDV. “One aspect is the anticipated high-density operations requiring many aircraft to operate in an area simultaneously. We expect air traffic density beyond current traffic levels at airports, which demands a more automated approach to air traffic management.”

Increasing automation will also help make AAM innovations profitable and affordable by a large percentage of potential markets, a critical aspect of implementation.

“In order to enhance the ability to be profitable, having the option to remove the pilot needs to be possible,” Glaab said. “As a result, many traditional roles of the on-board pilot will need to be automated such as traffic collision avoidance, health monitoring, and emergency landings.”

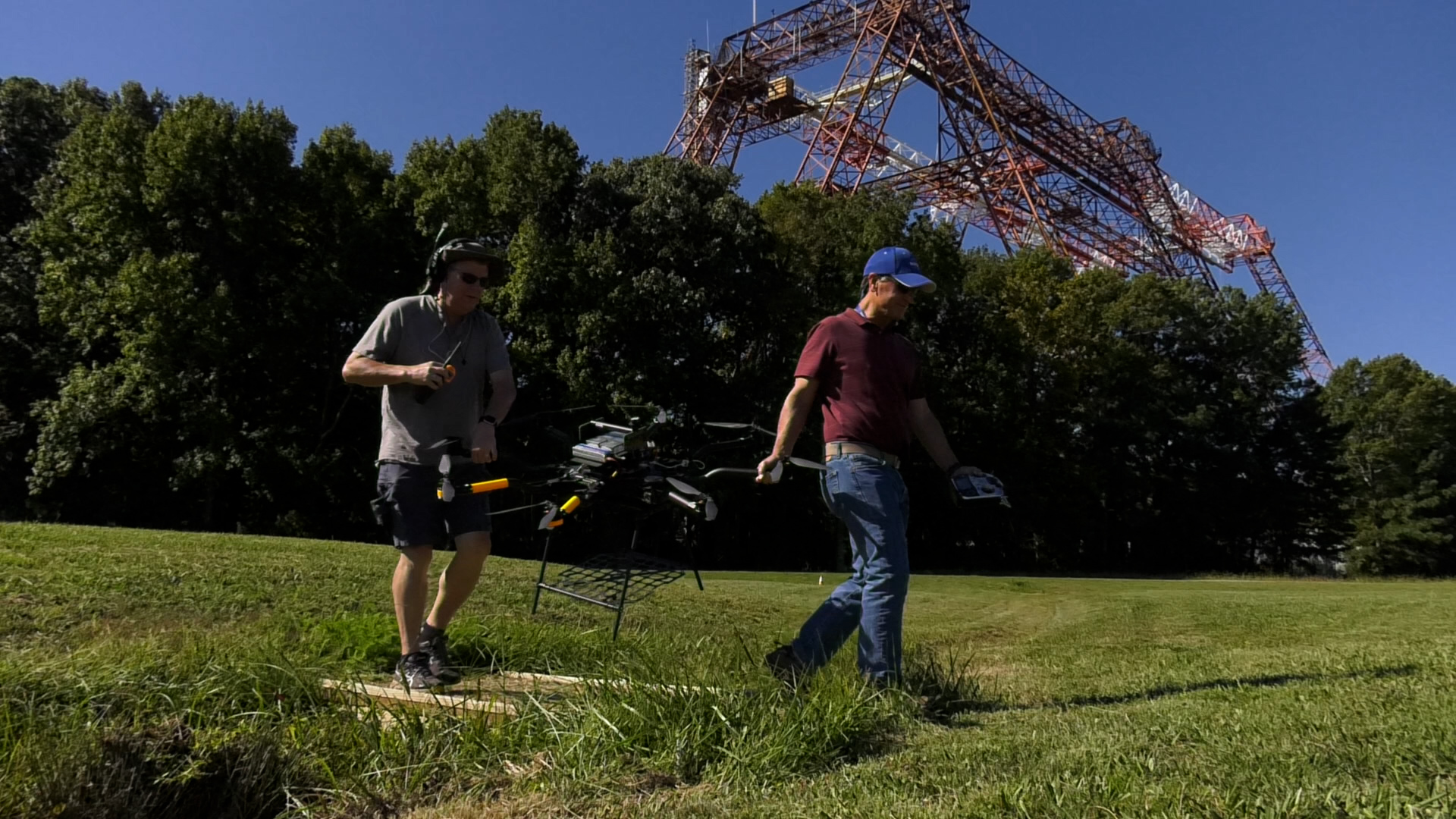

Researchers carry a small unmanned aerial system, or sUAS, out to the launch area of CERTAIN. CERTAIN allows different research teams to fly various autonomous vehicles for a variety of autonomous system testing.
Credits: NASA

The second big challenge for HDV: developing proposed flight operations for remotely piloted aircraft in urban areas beyond their operators’ lines-of-sight. To create this proposal, known as a safety case, the researchers used aircraft operating at Langley’s City Environment Range Testing for Autonomous Integrated Navigation – first in simulation, then live.

While the aircraft was flying at the Langley range, their pilots were controlling them remotely from Ames’ Airspace Operations Laboratory, while the team members acting as simulated fleet and vertiport managers worked from a third facility – Ames’ Autonomous Vehicles Operations Laboratory.

“The vertiport manager could perform tasks such as simulated vertiport closures to trigger vehicle re-routes to alternate vertiports,” Glaab said.

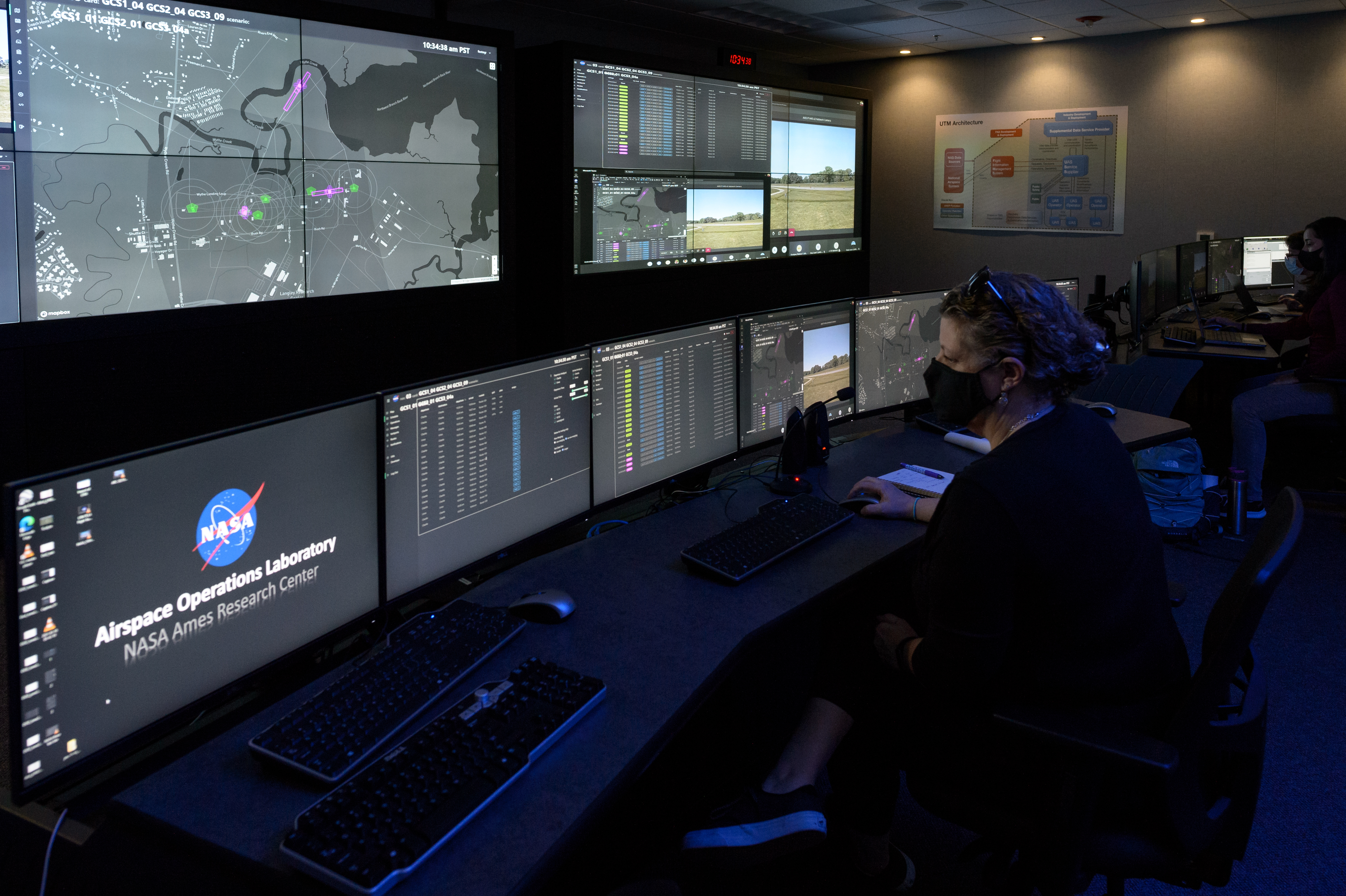

Ames HDV Airspace Operations Laboratory
NASA researcher Connie Brasil sits in the Airspace Operations Laboratory at Ames Research Center in California’s Silicon Valley. The HDV project was able to perform a variety of flight tests while communicating to each other and the vehicles from coast to coast.
Credits: NASA

HDV’s third objective of HDV was to demonstrate automated capabilities while still flying within visual line-of-sight. Some of the testing scenarios included standard A to B flights, flights that got re-routed to alternate vertiports, simulated emergencies, and flight tests with multiple vehicles performing autonomous ‘detect-and-avoid’ functions.

These flight tests were also performed using extended visual line of sight operations with ground control station operators in Langley’s Remote Operations for Autonomous Missions interacting with the fleet managers and vertiport managers at Ames’ labs.

“These operations have to be well-coordinated and resilient to disruptions in order to achieve the levels of activities we anticipate,” said Jeff Homola, acting subproject manager for HDV at Ames. “Our team is focusing its efforts on developing, testing, and evaluating the systems and technologies to give the industry and the FAA insight into this future.”

Having completed the three challenges and reaching their first milestone, the HDV team will continue to focus on the development and testing of concepts and technologies needed for the environment around vertiports – specifically focusing on how automation can increase the safety and efficiency of flight operations in these environments – in further flight tests as the team increases their scope of possibilities.
