Report of the PRESIDENTIAL COMMISSION
on the Space Shuttle Challenger Accident
Volume 2
Appendix H - Flight Readiness Review Treatment of
O-ring Problems
![charts 159-160 [Chart 159: Model of Jet-Impingement Erosion of Secondary O-Ring; Chart 160: Blowby Erosion of Primary O-Ring Model]](https://www.nasa.gov/wp-content/uploads/static/history/rogersrep/v2h81.jpg)

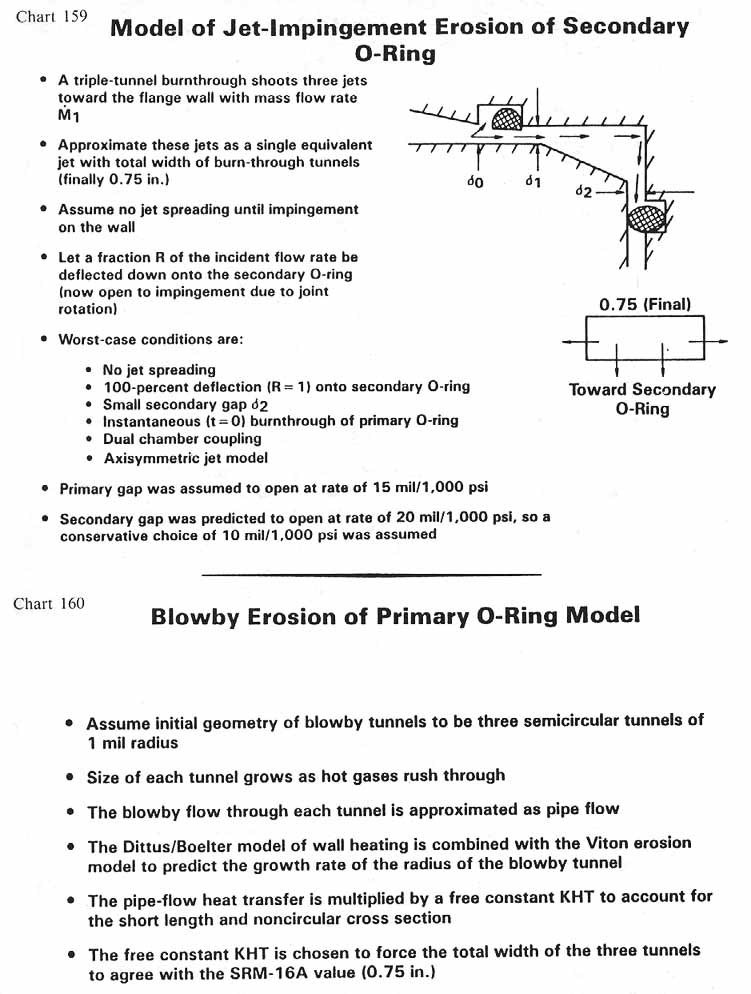

Charts 159-160 [Chart 159: Model of Jet-Impingement
Erosion of Secondary O-Ring; Chart 160: Blowby Erosion of Primary
O-Ring Model]
