Report of the PRESIDENTIAL COMMISSION on the Space Shuttle Challenger Accident

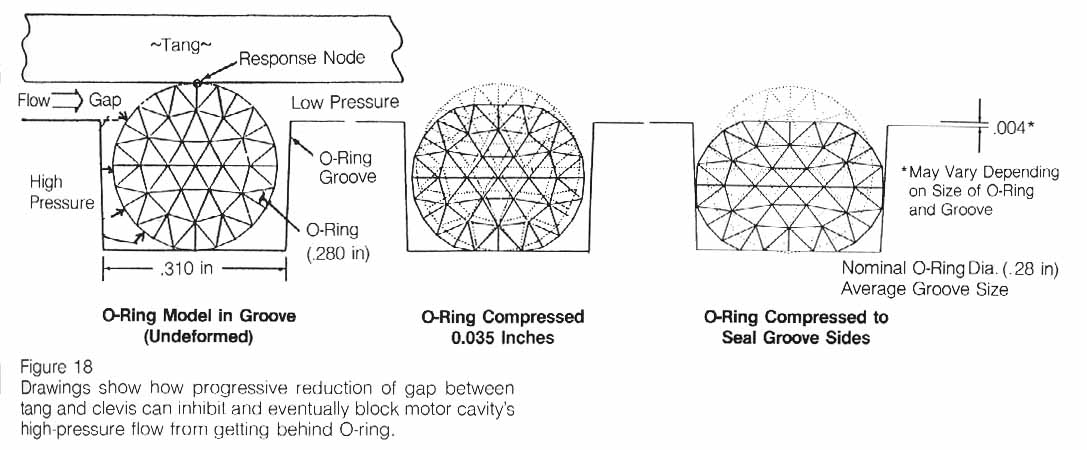

Figure 18. Drawings show how progressive reduction of gap between tang and clevis can inhibit and eventually block motor cavity's high-pressure flow from getting behind O-ring.

Figure 18. Drawings show how progressive reduction of gap between tang and clevis can inhibit and eventually block motor cavity's high-pressure flow from getting behind O-ring.
