Report of the PRESIDENTIAL COMMISSION on the Space Shuttle Challenger Accident

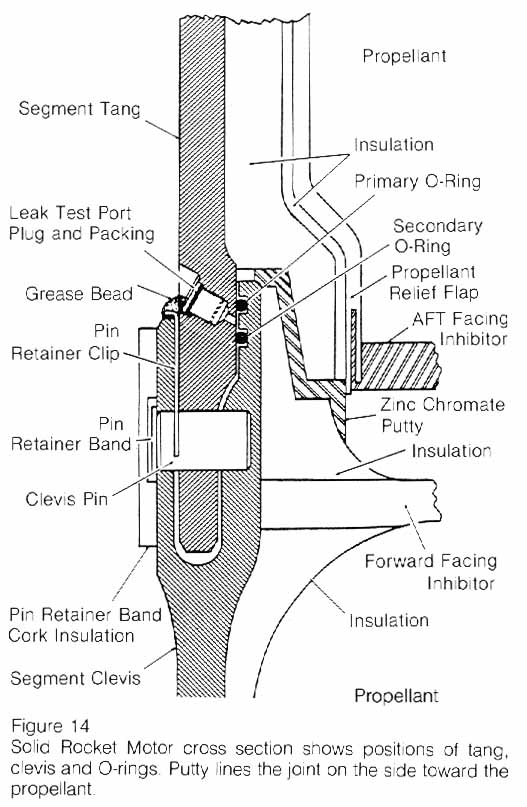

Figure 14. Solid Rocket Motor cross section shows positions of tang, clevis and O-rings. Putty lines the joint on the side toward the propellant.
-
