Damage From Apollo 13 Explosion

Photograph of damaged Apollo 13 Service Module

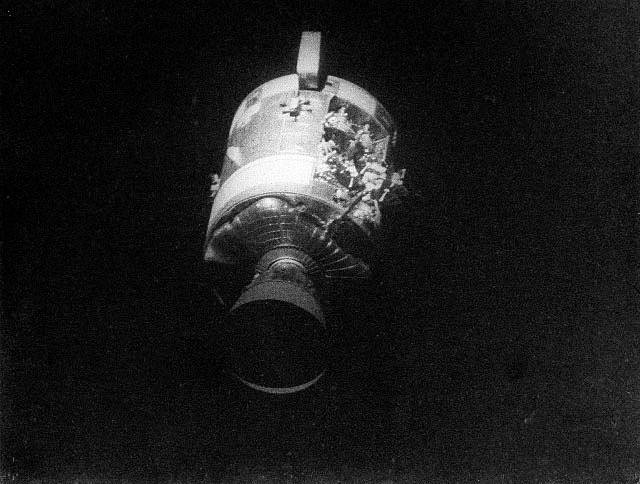

This view of the severely damaged Apollo 13 Service Module (SM) was photographed from the Lunar Module/Command Module (LM/CM) following SM jettisoning. As seen in this cropped image, enlarged to provide a close-up view of the damaged area, an entire panel on the SM was blown away by the apparent explosion of oxygen tank number two.

AS13-59-8500A (17 April 1970) — This view of the severely damaged Apollo 13 Service Module (SM) was photographed from the Lunar Module/Command Module (LM/CM) following SM jettisoning. As seen in this cropped image, enlarged to provide a close-up view of the damaged area, an entire panel on the SM was blown away by the apparent explosion of oxygen tank number two located in Sector 4 of the SM. Two of the three fuel cells are visible just forward (above) the heavily damaged area. Three fuel cells, two oxygen tanks, and two hydrogen tanks are located in Sector 4. The damaged area is located above the S-Band high gain antenna. Nearest the camera is the Service Propulsion System (SPS) engine and nozzle. The damage to the SM caused the Apollo 13 crew members to use the LM as a “lifeboat”. The LM was jettisoned just prior to Earth re-entry by the CM.Photo Credit: NASA
